Installation
Becker Avionics
Aircraft Wiring
112 Transceivers 6200 Series DV14307.03 Issue 06 February 2021
Display Contents
Description
HDPH 2 ENABLED:
• Audio is available on headphone 2 output (P1-20/P1-22), speaker is
not available.
HDPH 2 DISABLED:
• No audio is available on headphone 2 output, speaker is not
available.
SPEAKER ENABLED:
• Audio is available on speaker (P1-1/P1-14), headphone 2 is not
available.
NONE:
• No audio on headphone 2 output or speaker output.
2.9.12.2 1K065 for General Aviation

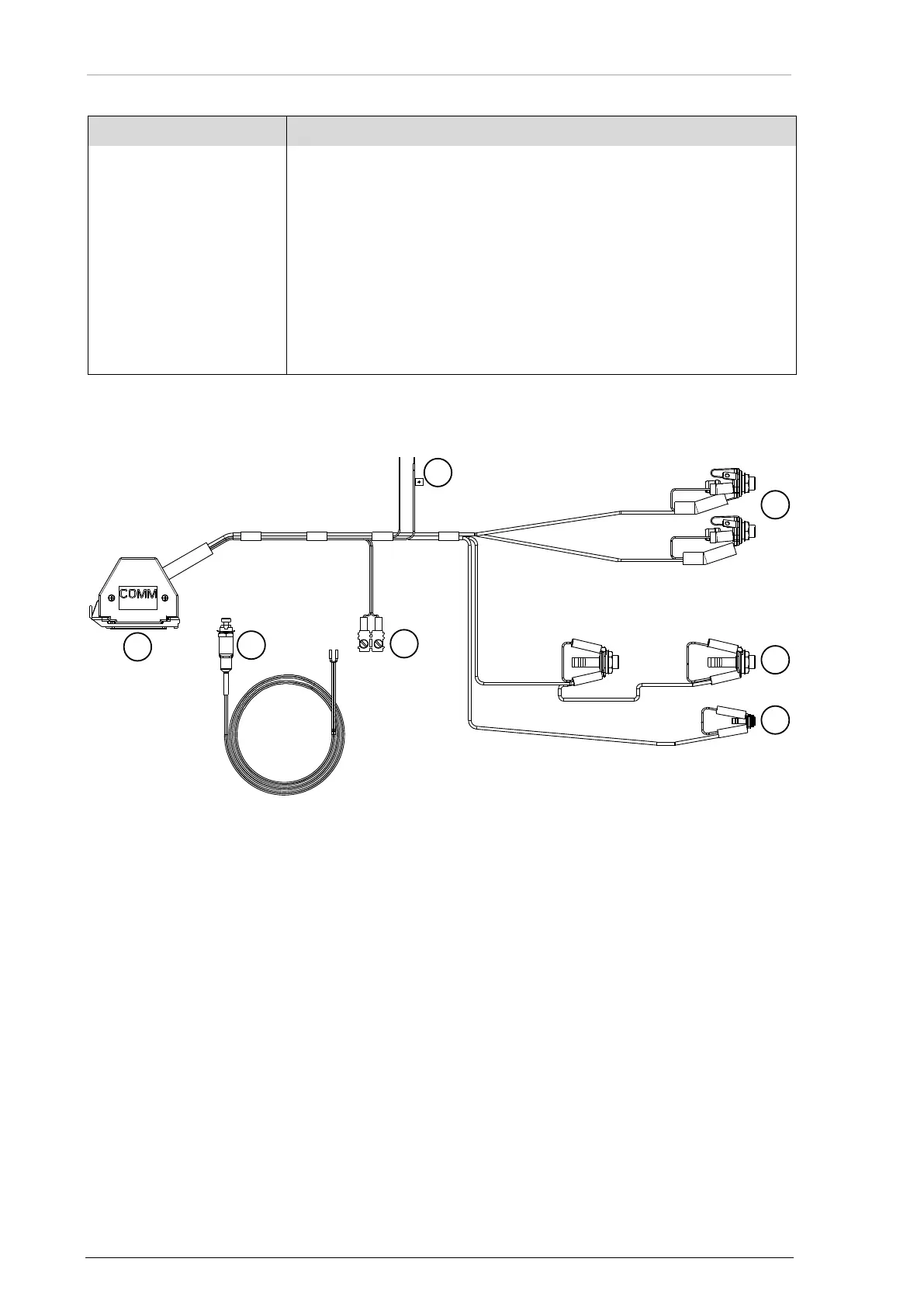

Figure 34: Cable Harness 1K065
1
D-Sub connector (to P1 unit connector)
2
Connector for PTT switch (see 7)
3
Power supply lines
4
2x Microphone, jack socket PJ68
5
2x Phone, jack socket PJ55
6
Audio input, jack socket 3.5 mm
7
PTT switch
Order code see: "Accessories", page 41.
2.9.12.3 1K062 (Open Cable Ends)
The same basic construction as type 1K065 only with open cable ends.
7
6
5
4
3
2
1
