Becker RT6201 - Rt62 X1; Figure 14: Dimensions - RT62 X1

Becker Avionics
Installation
Dimensions
DV14307.03 Issue 06 February 2021 Transceivers 6200 Series 53
RT62X1
Dimensions mm (inch)

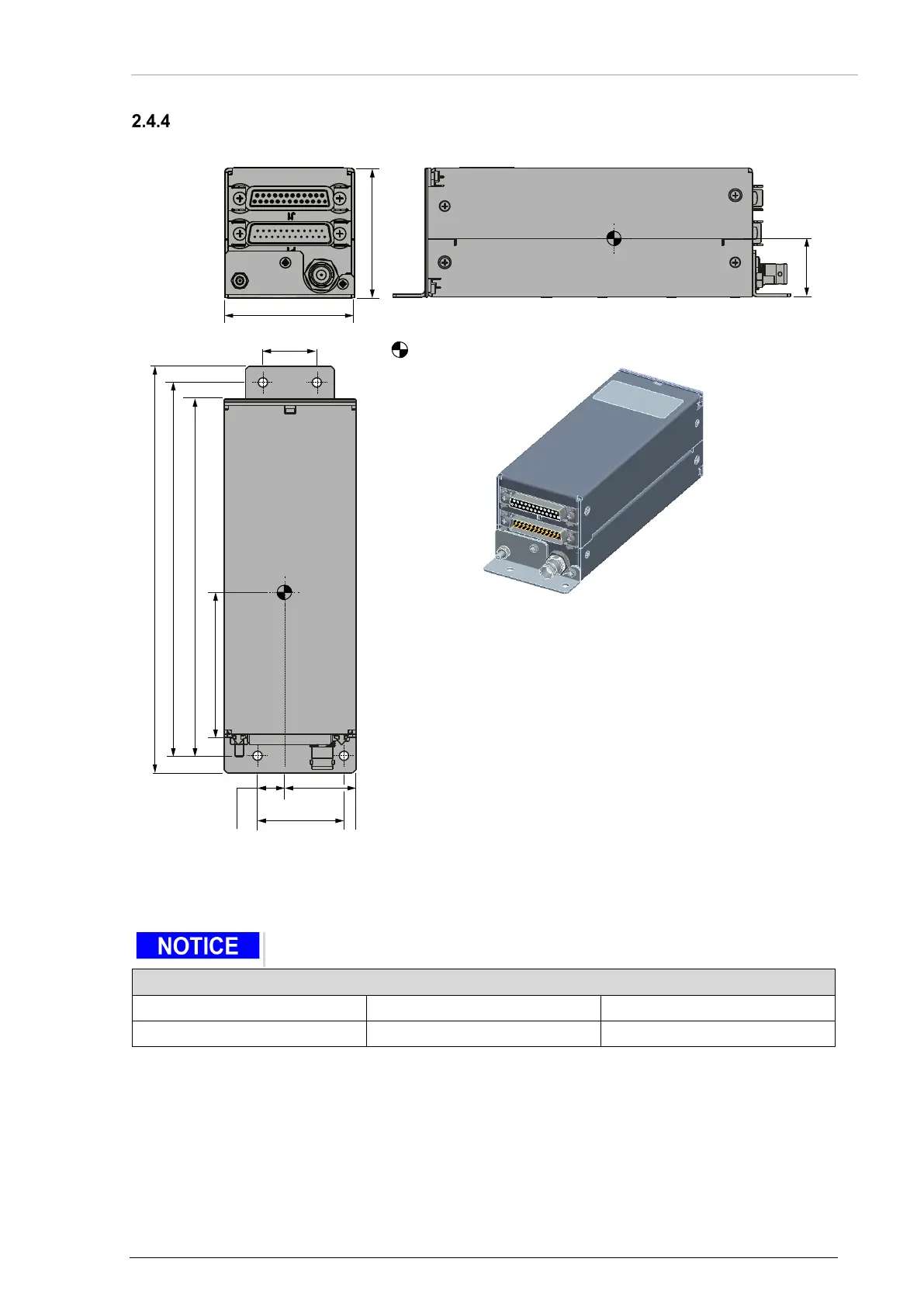

Figure 14: Dimensions - RT62X1
"Center of Gravity" is without other equipment.
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
CENTER OF GRAVITY
188 (7.4)
172.5 (6.79)
164.9 (6.49)
67 (2.6)
15
(0.59)
40
(1.57)
30.5
(1.20)
61 (2.4)
61 (2.4)
27 (1.1)
25 (0.98)
