Installation
Becker Avionics
Retrofitting - AR4201 with AR62X1
114 Transceivers 6200 Series DV14307.03 Issue 06 February 2021
Pin
No.
AR4201
Pin Name
AR4201
Function
AR62X1
Pin Name
AR62X1
Function
Full
compatible
P1-18
MIKE STD1
Standard microphone input,
high side, unbalanced
MIKE_STD1_HI
Standard microphone 1
input, high side, unbalanced
Yes
P1-19
CODE PIN
Used for identification of
the connection
MIKE_STD3_HI
Standard microphone 3
input, high side, unbalanced
No
P1-20
TEMS2
Headphone 2
HDPH2_A
Headphone 2 output,
balanced
No
P1-21
GNDDATA
Ground
AF_AUX_IN_LO
no Ground
No
P1-22
TXD
RS232-serial-data-line
HDPH2_B
Headphone 2 output,
balanced
No
P1-23
ILLUMINATION
Illumination, high side
ILL_HI
Illumination, high side
Yes
P1-24
+13.75V
TURNED
Power on monitor
Turned positive power
supply.
/PWR_EVAL
Power on monitor,
open collector output,
conducting to GND for "On"
No
P1-25
GROUND
Power supply ground
P_SUPP_GND
Power ground
Yes
Dynamic Microphone Input
Retrofitting an AR4201 with the AR62X1 in a typical glider installation with a dynamic microphone:

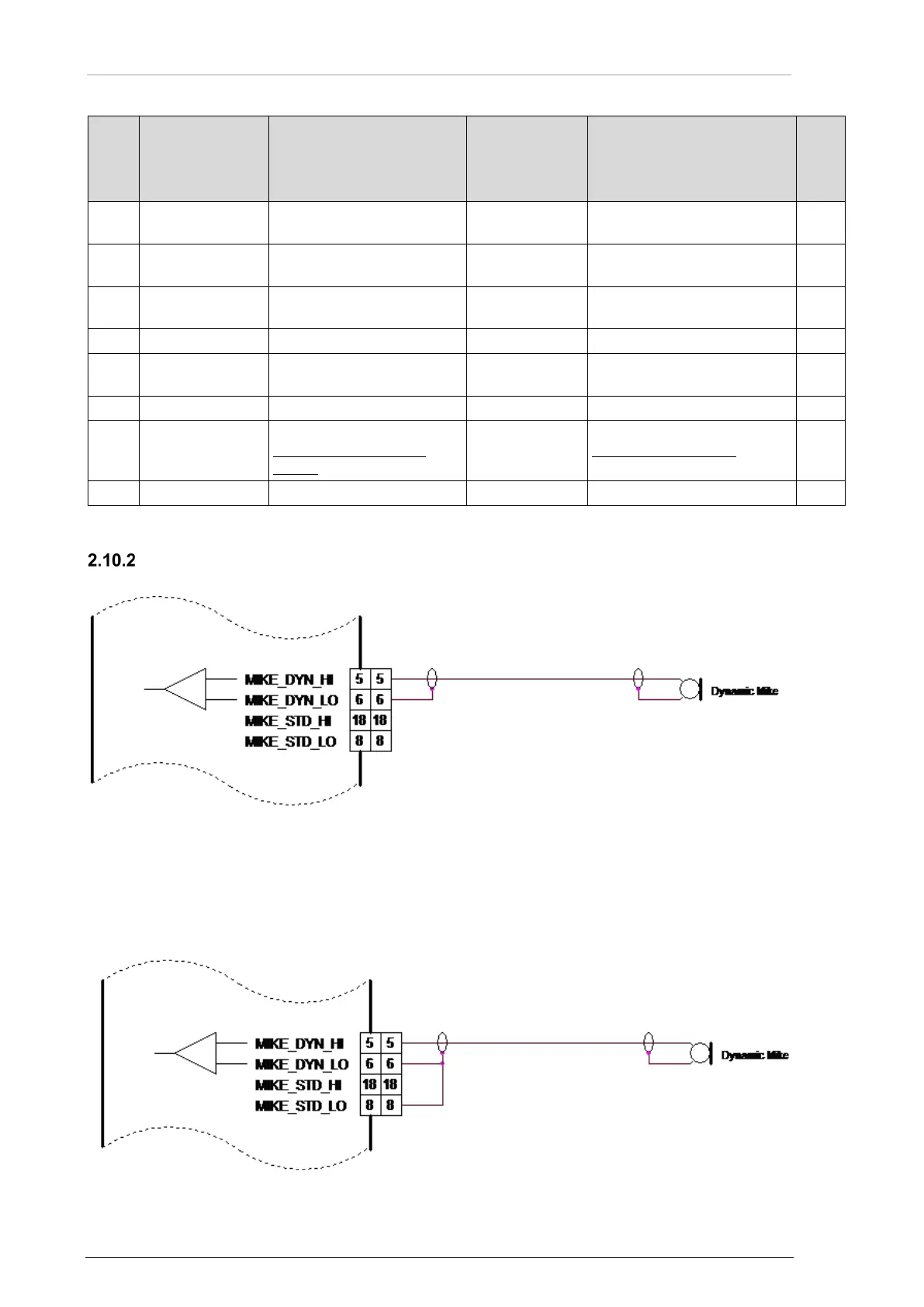

Figure 35: AR62X1 with Wiring Interface for AR4201
• Connect the cable shield to P1-6, which is the low side input for dynamic microphone.
o Because in AR62X1 this input is balanced, the cable shield is no longer connected to
ground (unlike it was with the AR4201). In most cases, it is not a problem.
• If interference with the microphone signal does occur, it is recommended to connect P1-6
with Pin P1-8 (the cable shield is grounded).
Figure 36: Modified Dynamic Microphone Wiring for AR62X1
