Becker RT6201 - Mounting Kit - MK6201; Figure 16: Dimensions - Mounting Kit MK6201 (for RT62 X1)

Becker Avionics
Installation
Dimensions
DV14307.03 Issue 06 February 2021 Transceivers 6200 Series 55
Mounting kit - MK6201
Dimensions mm (inch)
B: 4x installation holes Ø 4.3 mm.

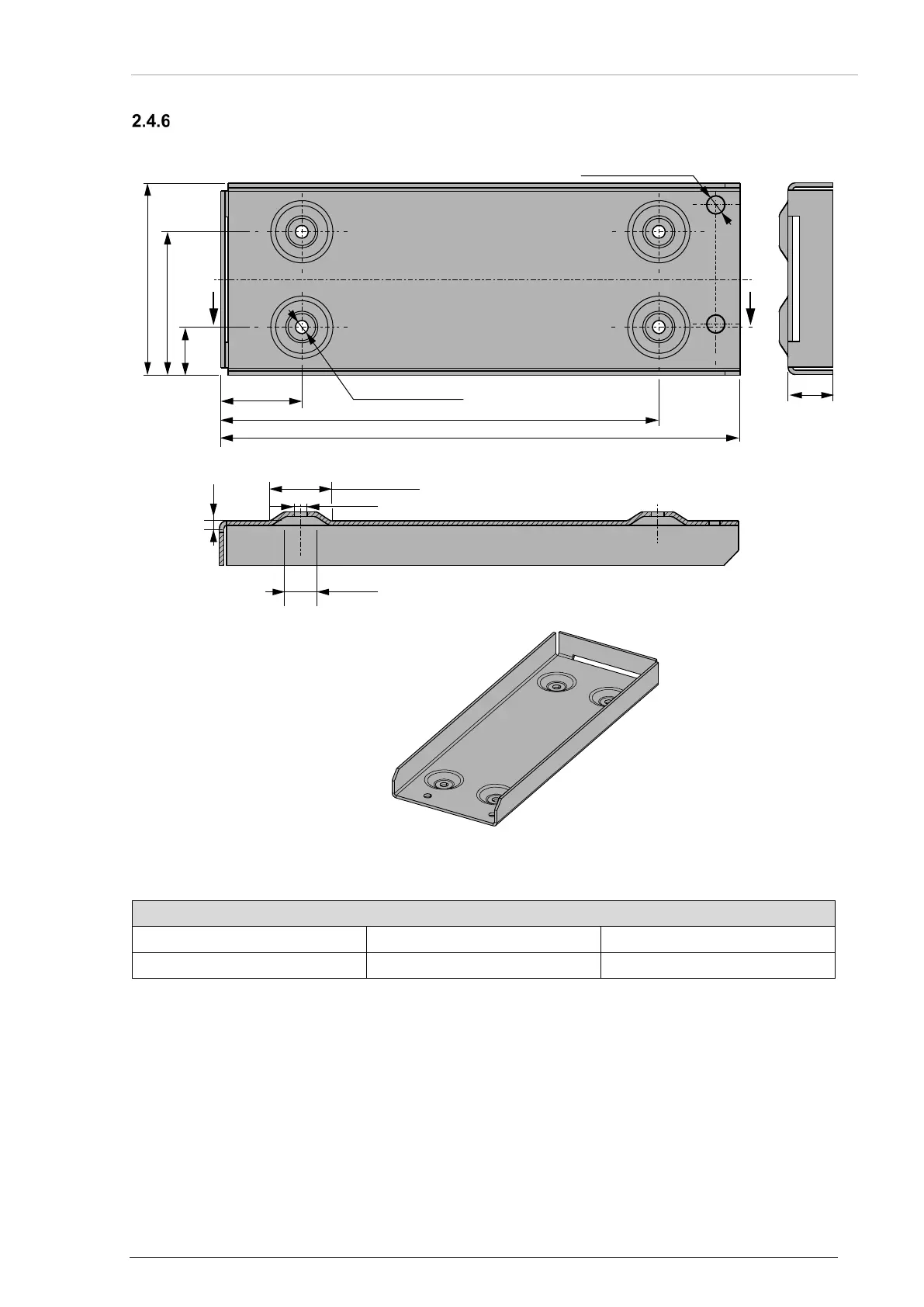

Figure 16: Dimensions - Mounting kit MK6201 (for RT62X1)
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
147.3 (5.8)
174.5 (6.9)
4x Ø 4.3 (0.17)
Ø 10 (0.4)
Ø 4.3 (0.17)
Ø 20 (0.8)
15
(0.6)
2x thread nut M3
27.3 (1.07)
48.3 (1.9)
64.5 (2.53)
16.3
(0.64)
3
(0.12)
Section A-A
AA
