Becker RT6201 - Mounting Kit - MK6403-1; Figure 17: Dimensions - Mounting Kit MK6403-1 (for AR62 X3)

Installation
Becker Avionics
Dimensions
56 Transceivers 6200 Series DV14307.03 Issue 06 February 2021
Mounting kit - MK6403-1
Dimensions mm (inch)

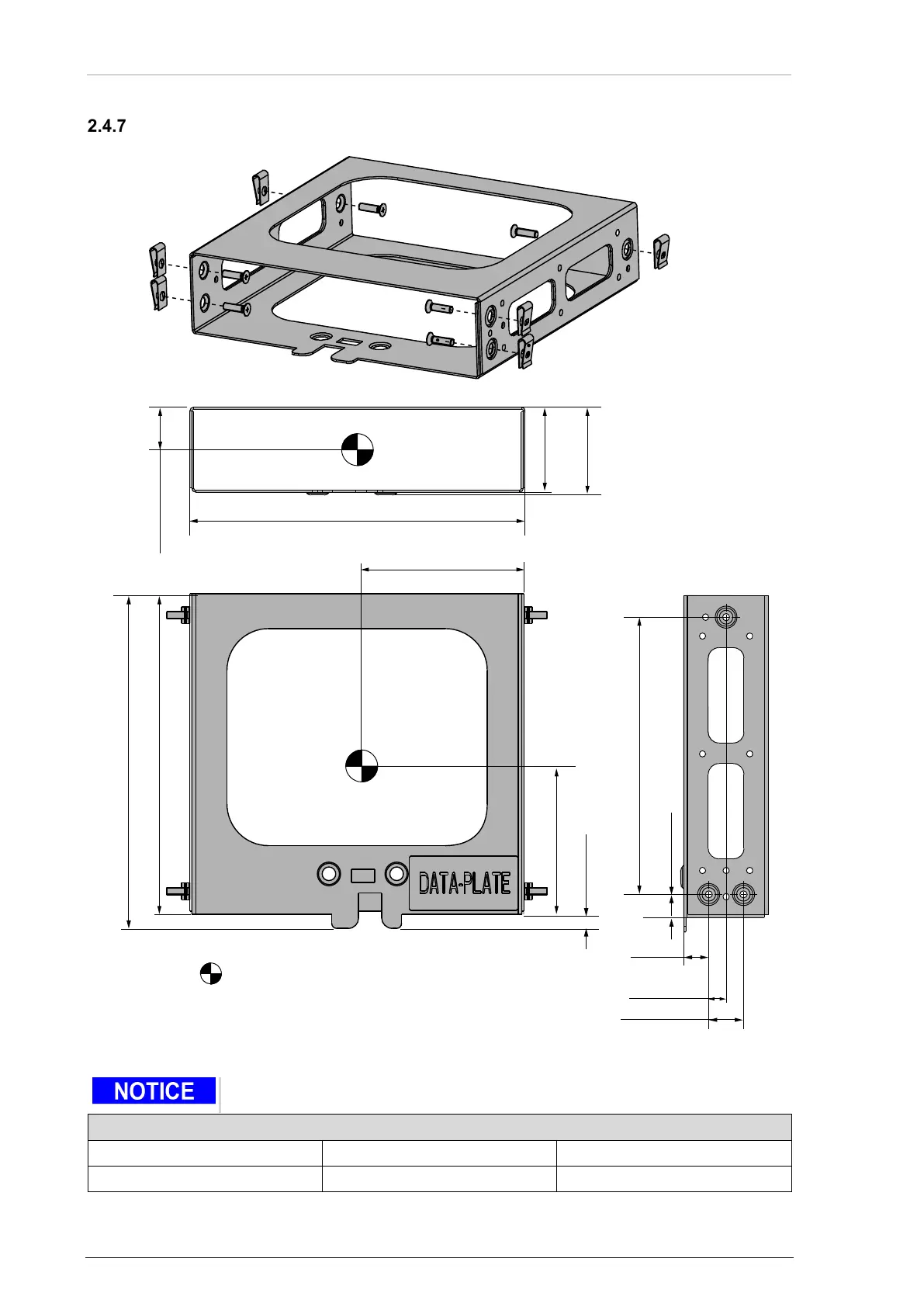

Figure 17: Dimensions - Mounting kit MK6403-1 (for AR62X3)
"Center of Gravity" is without other equipment.
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
CENTER OF GRAVITY
16.6 (0.65 in)
20 ±5
(0.79 in ±0.2)
160.5 (6.32 in)
72 (2.84 in)
6.7 (2.6 in)
11.1 (0.44 in)
132.4 (5.21 in)
153.8 (6.06 in)
80 ±5
(3.15 in±0.2)
41.9
(1.65 in)
40.6
(1.6 in)
160.3 (6.31 in)
12
(0.47 in)
8.3 (0.33 in)
