Dimensions
50 Transceivers 6200 Series DV14307.03 Issue 06 February 2021
2.4 Dimensions
AR6201, AR6211
Dimensions mm (inch)

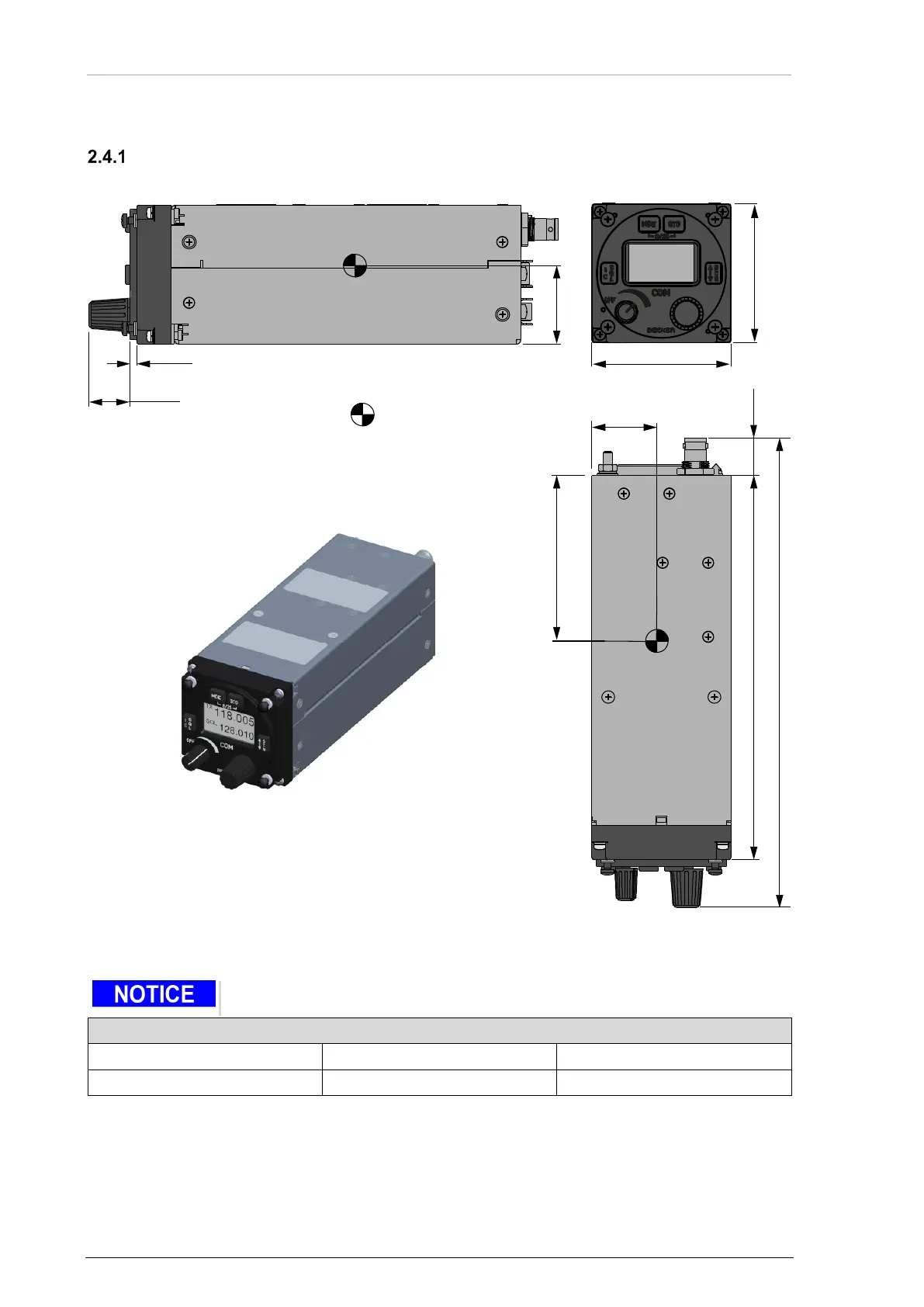

Figure 11: Dimensions - AR6201, AR6211
"Center of Gravity" is without other equipment.
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
CENTER OF GRAVITY
61 (2.4)
61 (2.4)
28.5
(1.1)
16.4
(0.6)
205.7 (8.1)
168.4 (6.6)
72.7
(2.9)
17.9
(0.7)
3
(0.1)
34.4
(1.3)
