SENSseries LB 480 Level measurement
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 181
Volume 2 2 Installation
2
Rod detector with detector shielding (collimator), with and with-
out water cooling
Due to the weight of the collimator, a mounting foot has to be used
which will carry the detector with collimator. In addition, an
anti-tipping device has to be installed at the upper flange. Other-
wise, the installation has to be carried out as shown in Fig. 2-2.

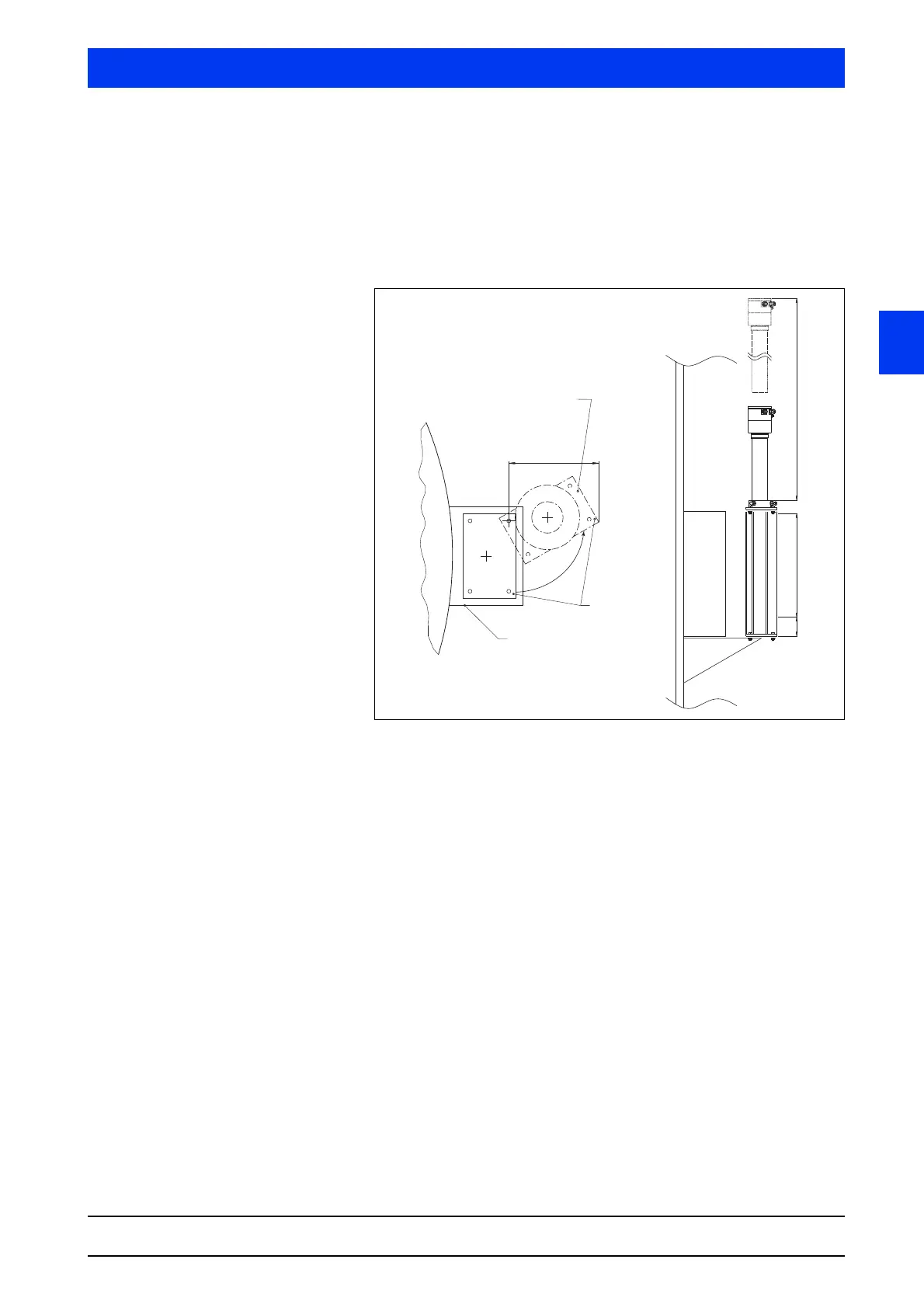

Fig. 2-3 Installation proposal for rod detector with collimator
For details on how to position the collimator please see the techni-
cal drawings.
We recommend to foresee instal-
lation/ deinstallation space to
swivel out the mounting foot
Mounting
Mounting platform
Extension
Effective length
91mm
260mm
