54733-10BA2L
2 – 182 02.2017
2 Installation Volume 2
Multi-detector arrangement
Several detectors are necessary to cover detector lengths of more
than 2m (alternative: Tower-Sens). The detectors are arranged
such that the sensitive areas of the detector overlap seamlessly.
The detectors are slightly offset on the side (Fig. 2-4). The sensi-
tive areas are marked by grooves, see also Fig. 2-22 on page
2-197.

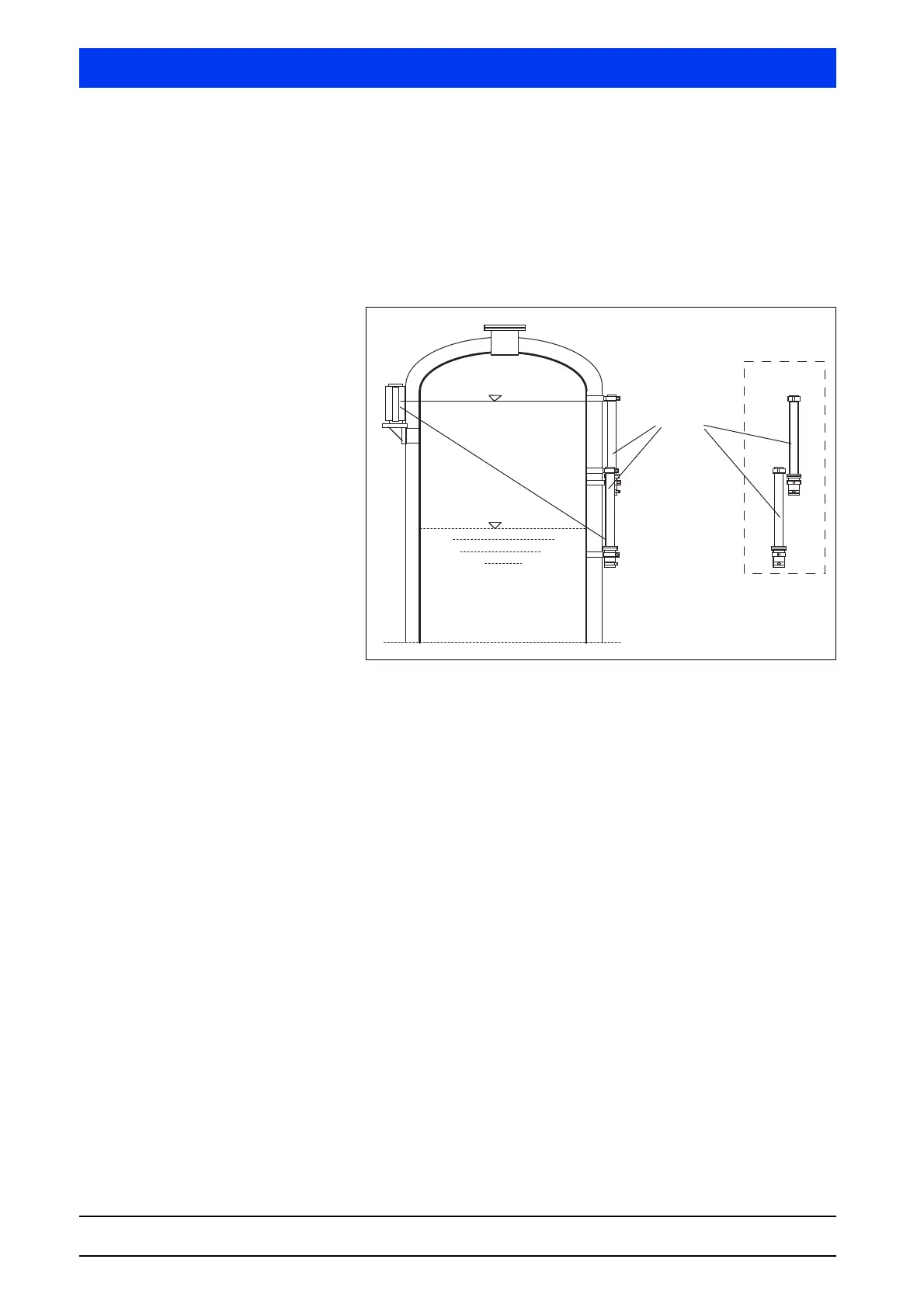

Fig. 2-4 Multi-detector arrangement
For installation details see the technical drawing (see page 2-241).
2.4.2 TowerSENS
See chapter 5.2, "TI LB 480 TowerSENS" on page 2-276.
1. + 2.
Rod detector
Stabdetektor
side view
Seitenansicht
Max
Min
