SENSseries LB 480 Level measurement
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 183
Volume 2 2 Installation
2
2.4.3 CrystalSENS (Point Detector)
With point source The combination of CrystalSENS and point source is typically used
to measure the limit level (Fig. 2-5). The detector is aligned on the
same height relative to the source.

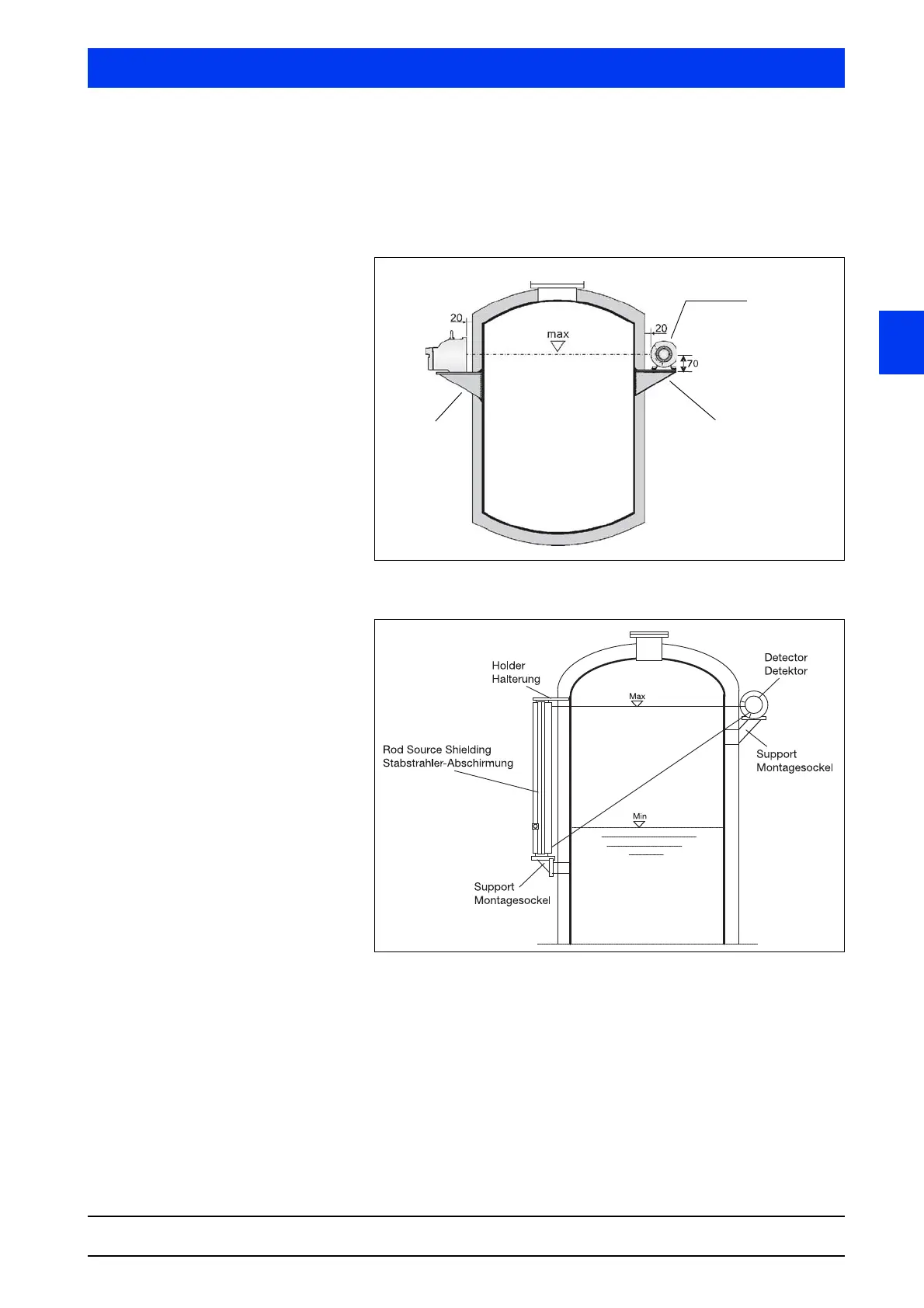

Fig. 2-5 Limit level measurement
With rod source
Fig. 2-6 Continuous level measurement
As shown in Fig. 2-6, the size of the measurement range for contin-
uous level measurement is defined by the radiation field received by
the detector; this radiation field has to be taken into account during
installation of detector and shielding. The installation situation is
illustrated in the project drawings, sketches and descriptions.
SENSseries
Point detector
Bracket provided
by customer
Bracket pro-
vided by cus-
