54733-10BA2L
2 – 184 02.2017
2 Installation Volume 2
When installing the CrystalSENS, please pay attention to the cor-
rect alignment relative to the source. The lateral opening (beam
window) in the collimator releases the sensitive area of the detec-
tor and must be directed at the source.

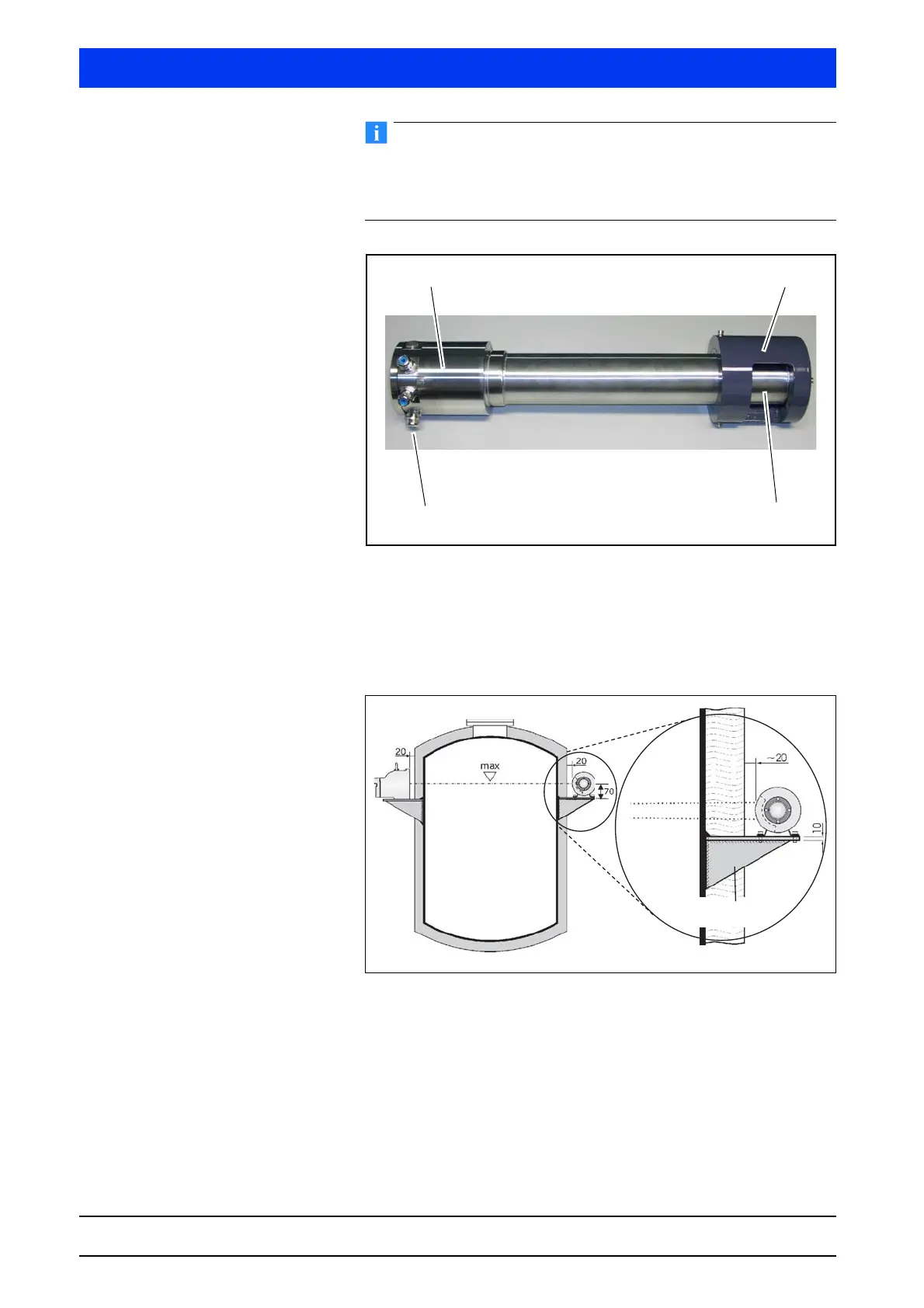

Fig. 2-7 CrystalSENS
The CrystalSENS is installed on the container using a fixture that is
provided by the customer. The distance to the surface of the vessel
or the surface of a thermal insulation should be about 100 mm.
Clamps (see chapter 2.4.4) or an installation kit (see chapter
2.4.5) are used for installation of the detector on a bracket.
Fig. 2-8 Installing the CrystalSENS
If the bracket cannot be mounted on the container, then it has to
be mounted on a support in the vicinity.
Fig. 2-9 shows three further alternative proposals (A, B, C) to
mount the detector.
Terminal compartment Collimator
Cable gland Beam window
Beam path
Bracket pro-
vided by cus-
