SENSseries LB 480 Level measurement
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 191
Volume 2 2 Installation
2

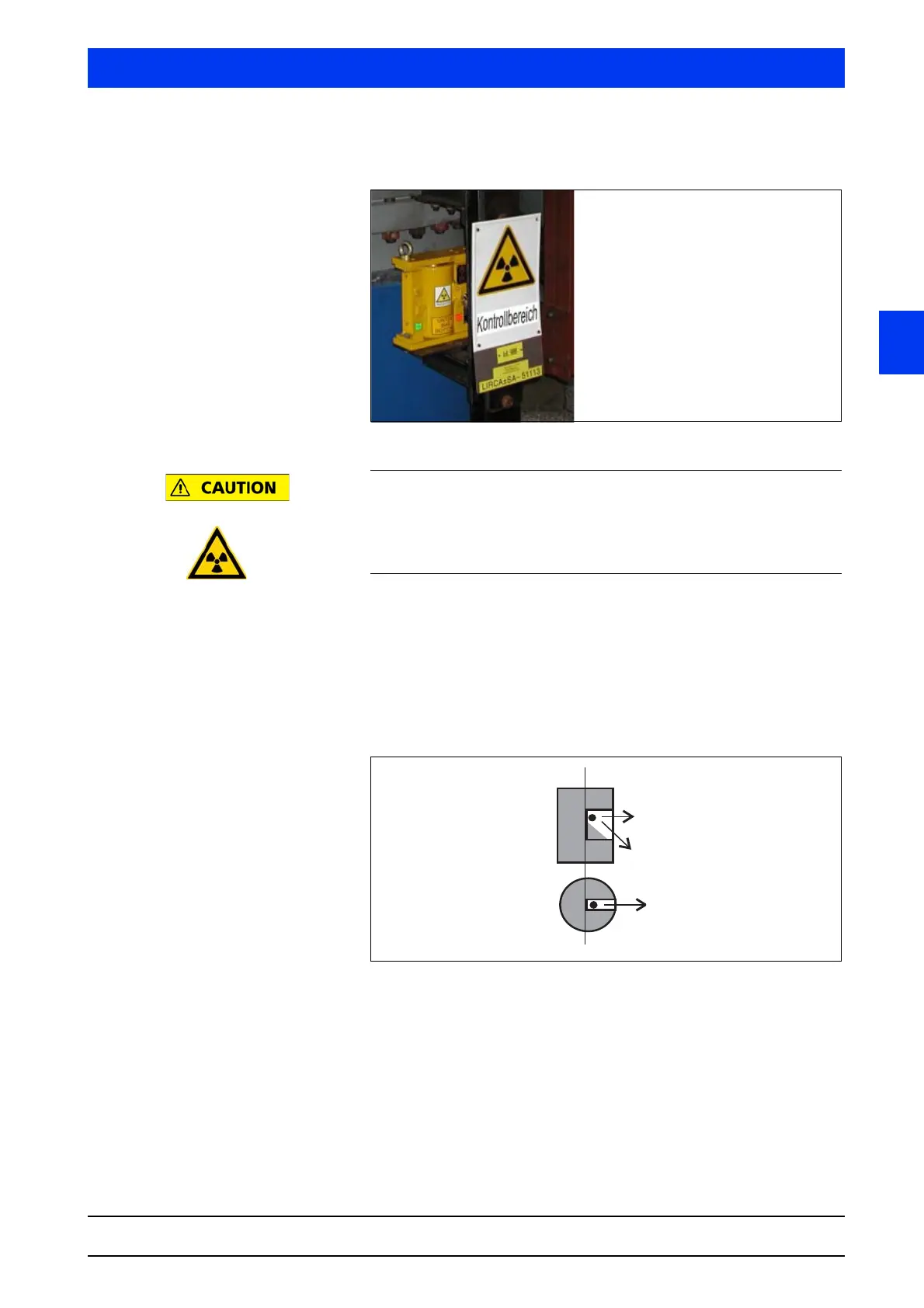

2.6.1 Point source shielding 45°
Fig. 2-16 Radiation warning sign
Increased radiation dose due to open beam channel!
A too high dose of radiation may be harmful to your health.
A source may be transported only in its shielding. The shielding
must be closed during transportation and installation.
The shielding has a fan-shaped exit channel which emits radiation
towards the front and downward up to an angle of 45°. This allows
the shielding to be mounted vertically which simplifies the con-
struction of the fixing bracket and the installation the shielding,
since the fixture need not be inclined at a certain angle, but is
placed vertically onto the bracket. During installation, the shielding
and thus the useful beam must be aligned such that they point
exactly towards the detector.
Fig. 2-17 Point source shielding 45°
The radiation warning sign identi-
fies the start of the controlled area,
provided the controlled area is out-
side the shielding. If the controlled
area is inside the shielding, then
the radiation warning sign
attached on the shielding suffices.
Side view
Top view
max. 45°
