Size H for various shielding types
The distance from the source shieldings to the vessel surface is
designed such that reaching into the beam channel with the hand is
prevented (reference value approx. 20mm).

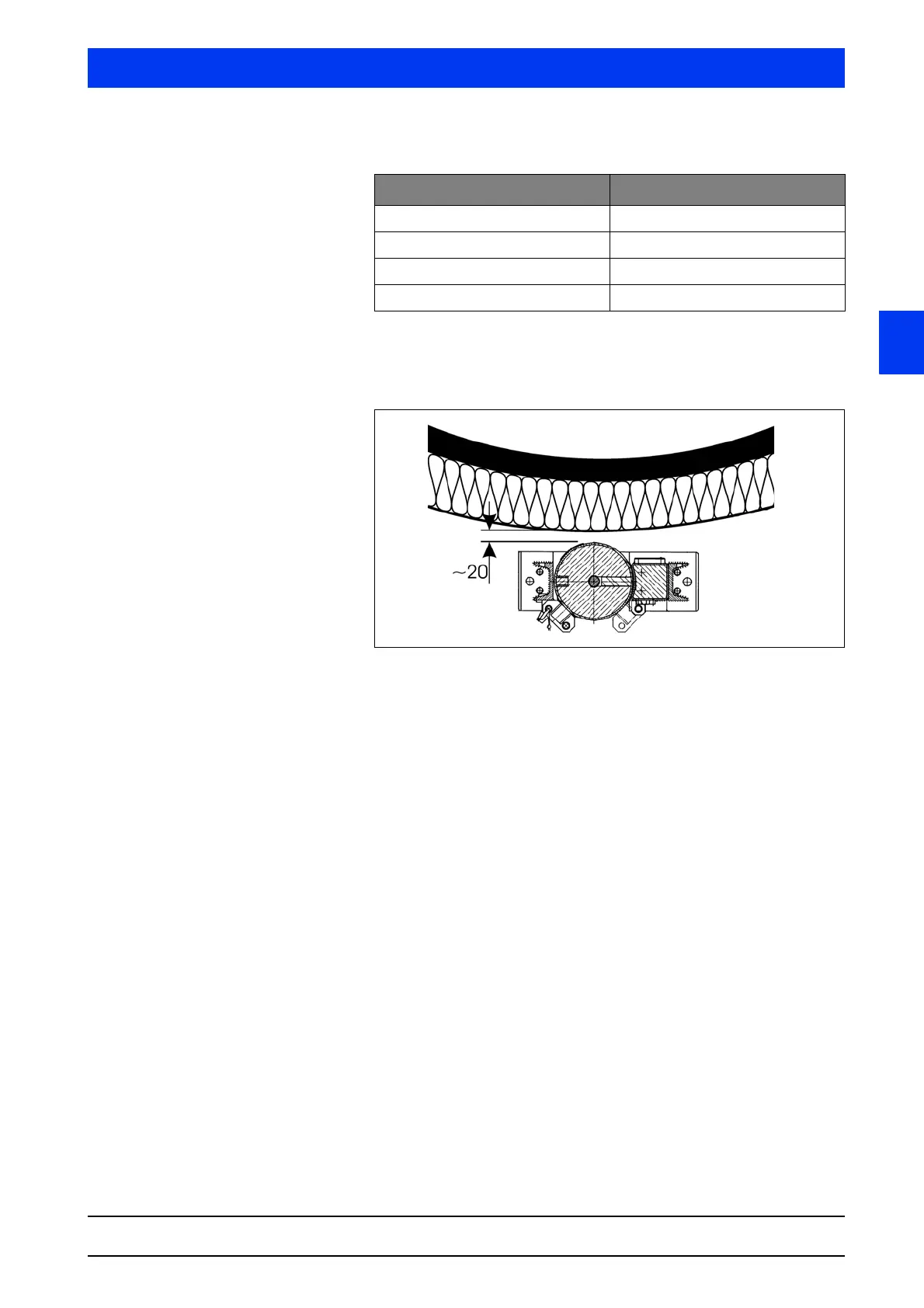

Fig. 2-19 Distance of the source shielding from the vessel surface
See "Technical Information" in chapter chapter 5 for the dimen-
sions of the various shieldings.
Fig. 2-20 shows a proposal for a mounting bracket for the source
shielding. The size and rigidity of the mounting bracket has to
match the size and weight of the shielding. The bracket has to be
mounted in the appropriate height, if possible, directly on the ves-
sel or on another supporting structure.
Shielding type Size H (in mm)
100 115
150 115
200 155
270 200
