BERTHOLD TECHNOLOGIES LB 480 - Page 194

54733-10BA2L
2 – 194 02.2017
2 Installation Volume 2

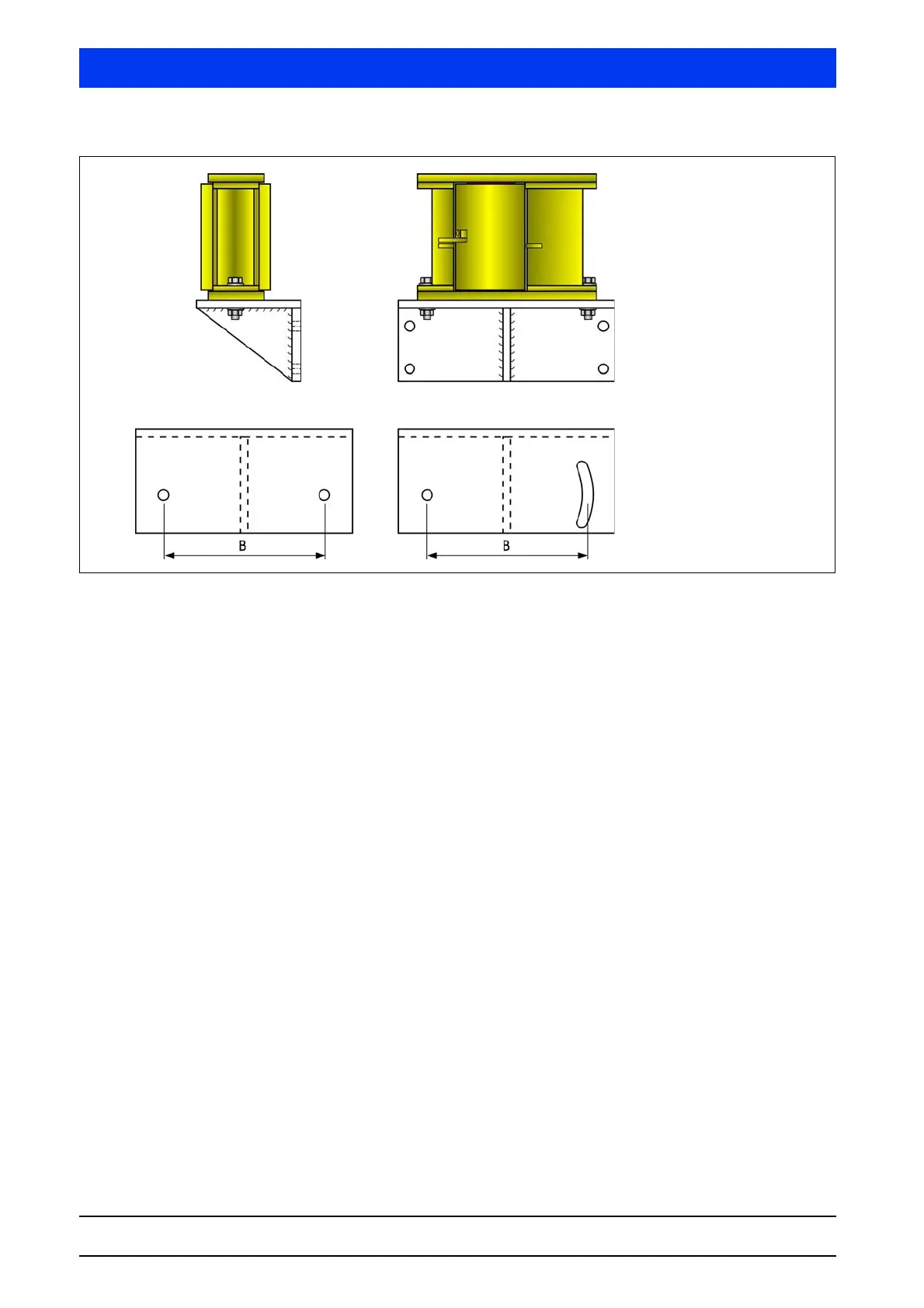

Fig. 2-20 Installation proposal shielding; size B see "Technical Informa-
tion" in chapter 5
Shielding 45°
with point source
Mounting base 1
This version is easier to
make than version 2
Mounting base 2
The version of the mount-
ing base with an elongated
hole allows the alignment
of the source at the detec-
tor.
