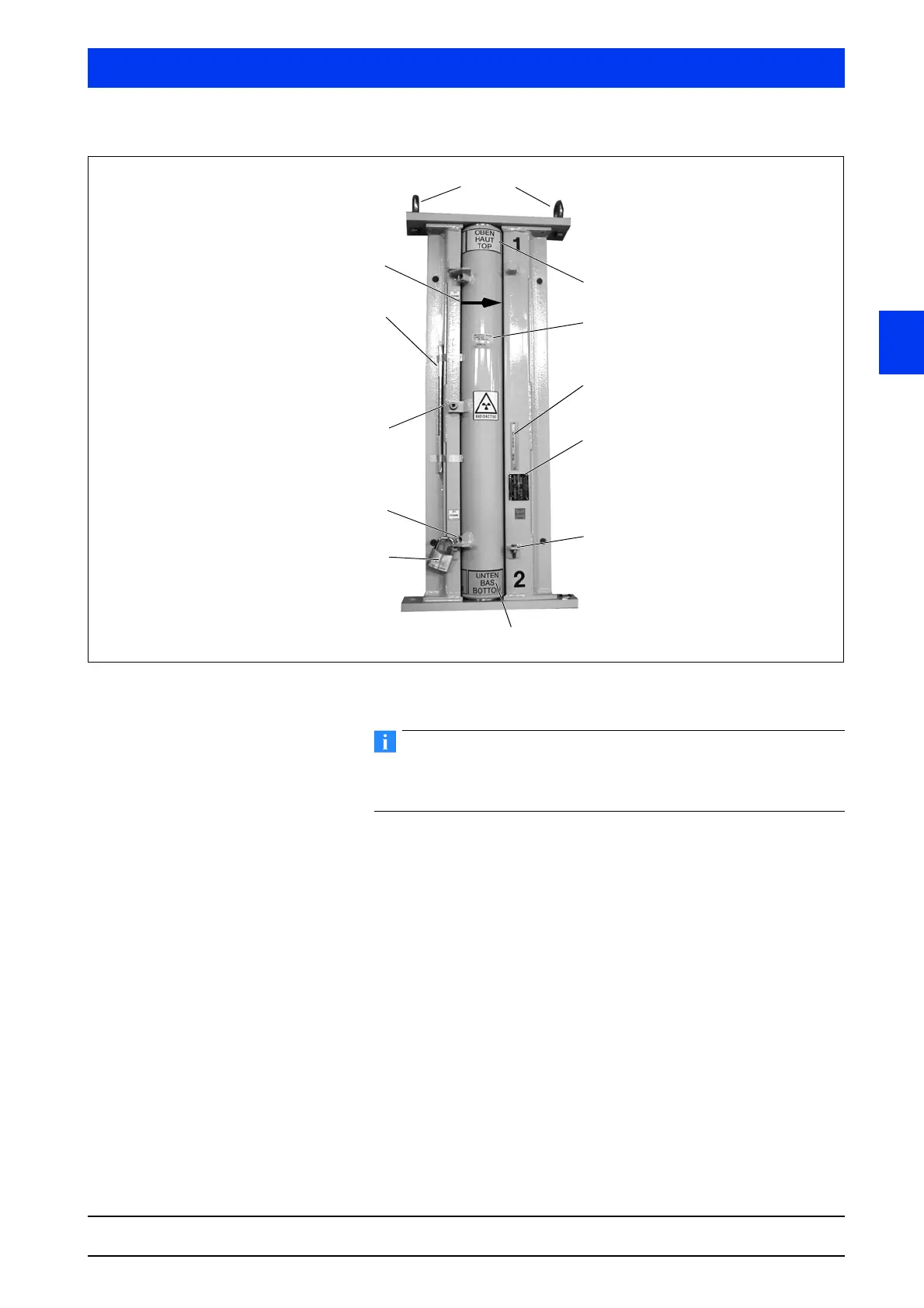

Fig. 2-26 Shielding closed, view from operator's side; the opposite side is
mechanism has to be tested. The function check has to be carried
out every six months and recorded.
Marking for top
Marking for installation direction bottom
Transportation safety device
Do not remove the transportation safety
device before completing the installation
Lever for opening the source shielding
During transportation, the lever is fixed to
the shielding using adhesive tape. With the
lever the shielding can be turned to the OPEN
or CLOSED position.
Source type label with information
on source and dose rate, see Fig.
2-15. page 2-189
Borehole for lever
Padlock
The padlock must remain locked until the mea-
suring system is taken into operation.
Order-related commission
number
Eyebolts
Safety screw to fix the shielding in
the open position when locking
with the lock is not permitted.
Type label of the shielding
with model name and serial
number
Direction of rotation for opening
