SENSseries LB 480 Level measurement
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 207
Volume 2 2 Installation
2

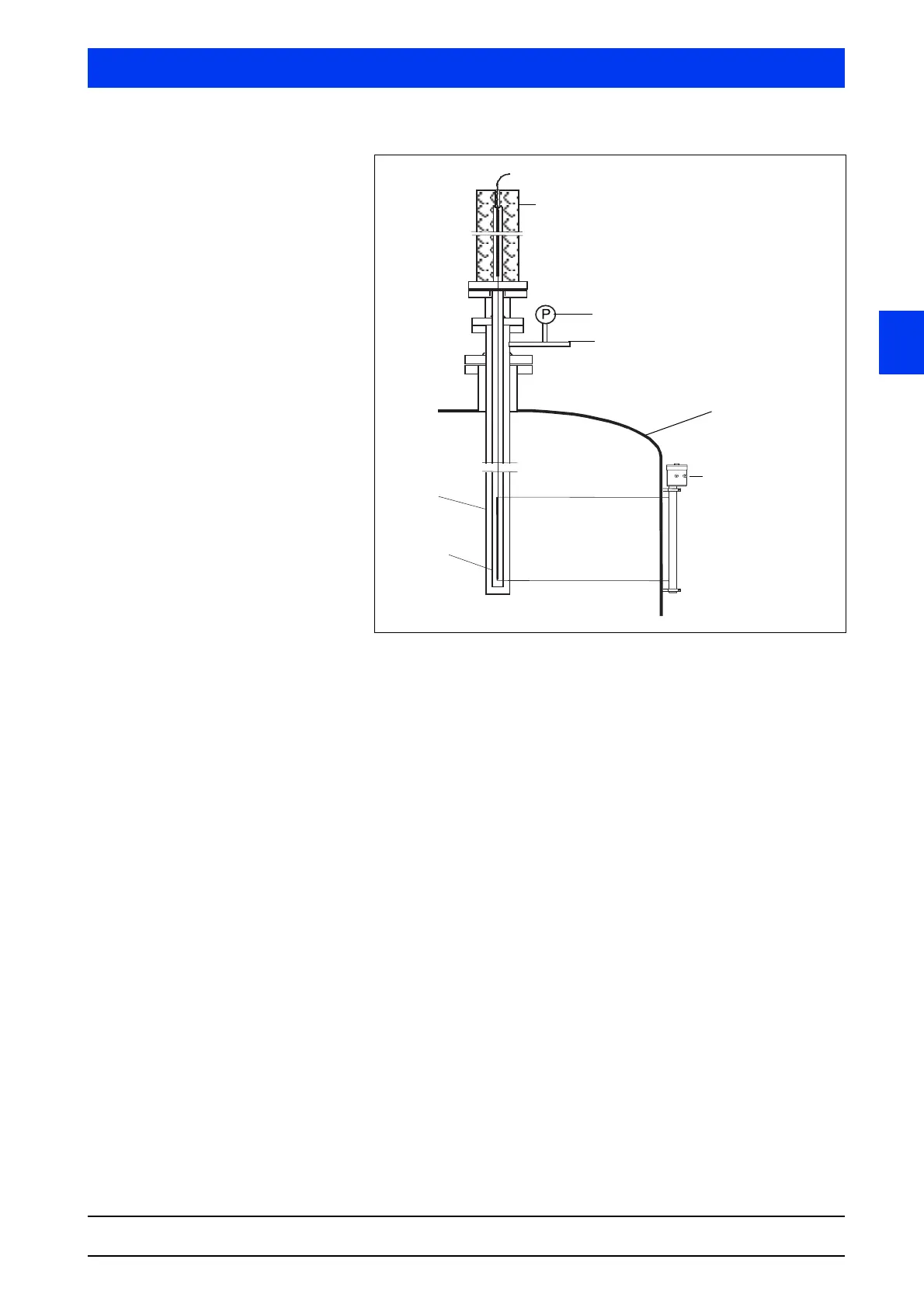

Fig. 2-30 Dip tube installation with rod source and rod detector
One or up to five rod sources can be installed in a shielding,
depending on type (see "Technical Information" in chapter 5). With
several rod sources, the individual sources are positioned in differ-
ent heights in order to cover the measurement range completely.
The shieldings can be adapted to your vessel flange using various
flange adapters.
Shielding with
source
Pressure control
Protection gas
Vessel wall
Detector
Dip tube
Protection tube
