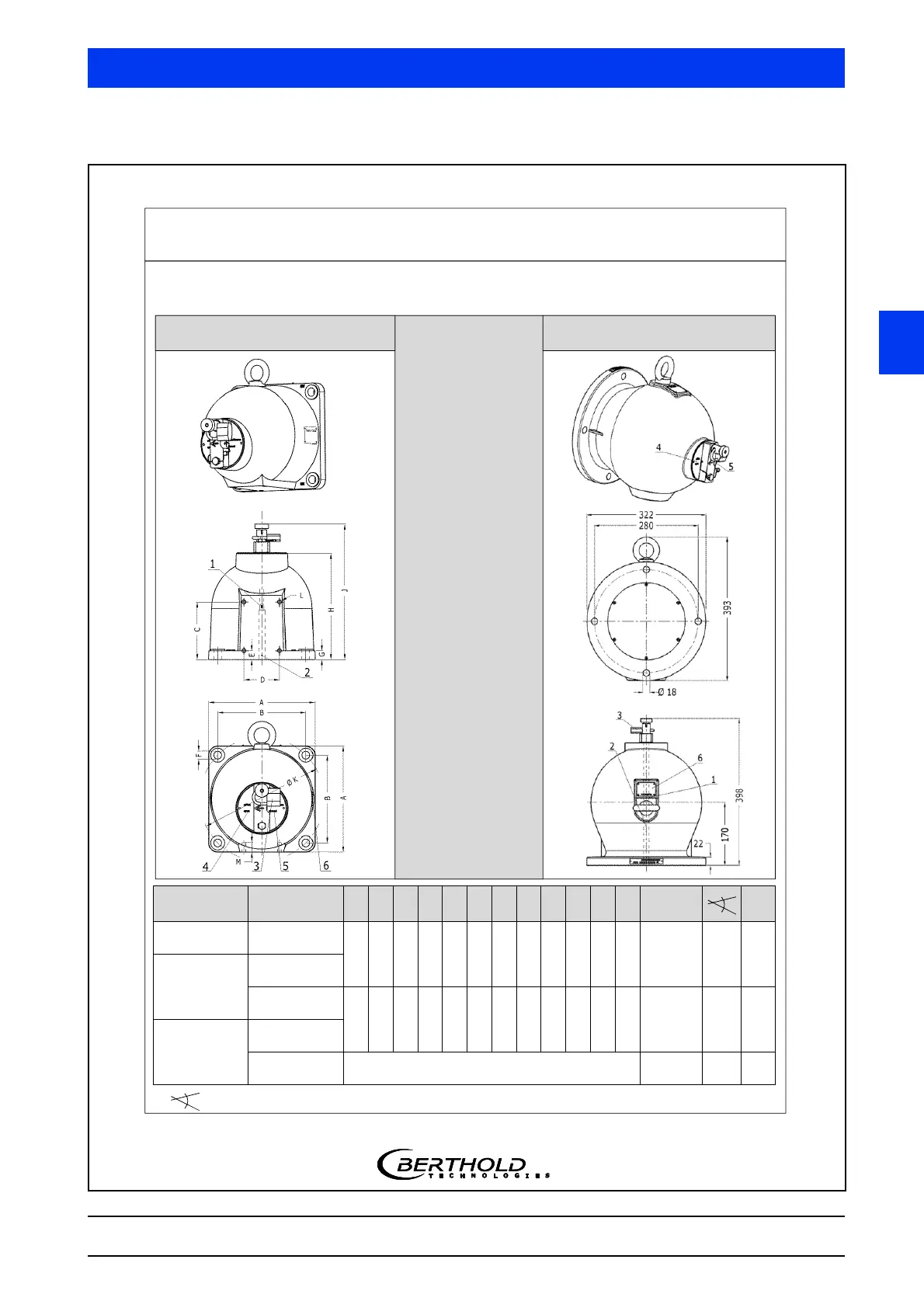

Dimensions in mm
Abmessungen in mm
8. Point Source Shielding LB 744x
Punktstrahler-Abschirmbehälter LB 744x
Housing
Gehäuse
Type
Typ
ABCDEFØGHJKØLM
Flange
Flansch kg
Carbon Steel
St 37
LB 7440-F-CR
LB 7445-F-CR
180 142 75 60 15 18 20 173 238 200 M8 12
ND 125
PN 6
16° 31
Super Duplex
UNS 32750
SAF 2507
1.4410
LB 7440-FE-CR
LB 7445-FE-CR
LB 7442-FE-CR
240 198 130 80 20 18 20 242 306 280 M10 14
ND 200
PN 6
9° 81
Carbon Steel
St 37
LB 7442-F-CR
LB 7446-F-CR
LB 7444-CR Dimensions in drawing / Abmessungen in Zeichnung
ND 200
PN 6
6° 170
LB 7440 / 7442 / 7445 / 7446 LB 7444
Radiation Angle of the Shielding / Abstrahlwinkel der Abschirmung
1 Strahler
2 Strahlenausgang
3 Schloss
4 Position
Offen
5 Position
Geschlossen
6 Typenschild
1 Point Source
2 Radiation Exit
3 Lock
4 Position Open
5 Position Closed
6 Type Label
