Technical Specification / Electrical Wiring
After connecting, tighten the stuffing box fitting.
Make sure that the cover sealing is inserted in its groove!
Slightly grease the housing cover in the shaft duct with MoS
2
grease, attach it and tighten cover screws.

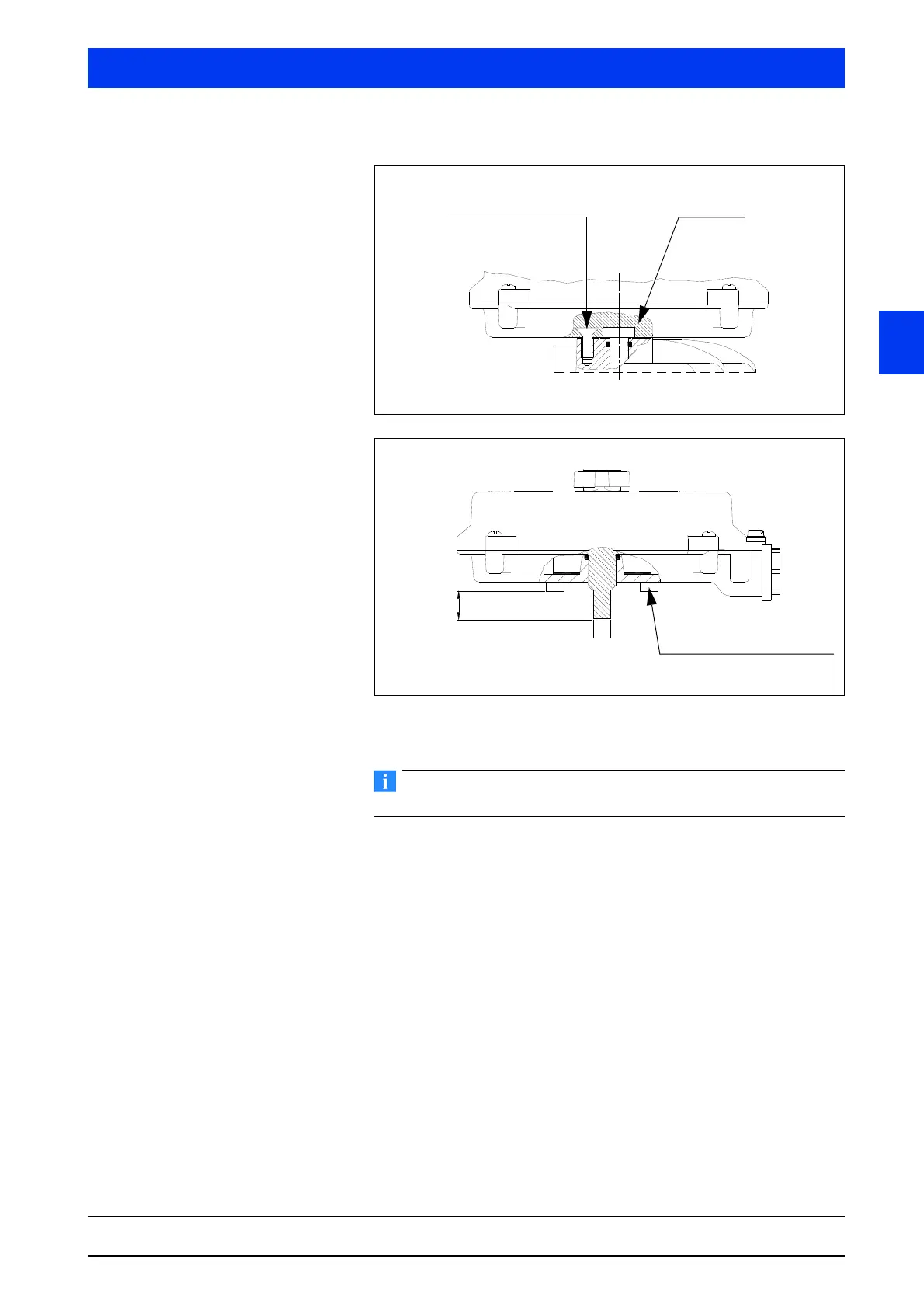

Direct installation
Mounting screw
(secure with LOCTITE etc)
Cork sealing
Installation according to factory norm
4 mounting drill holes
M6x5mm on pitch circle for
holes Ø50
12.5
9.53
… 9,48
