54733-10BA2L
2 – 296 02.2017
6 Accessories Volume 2
Correction of the switching points
for drive with pre-assembled
limit-switch box
Direct installation

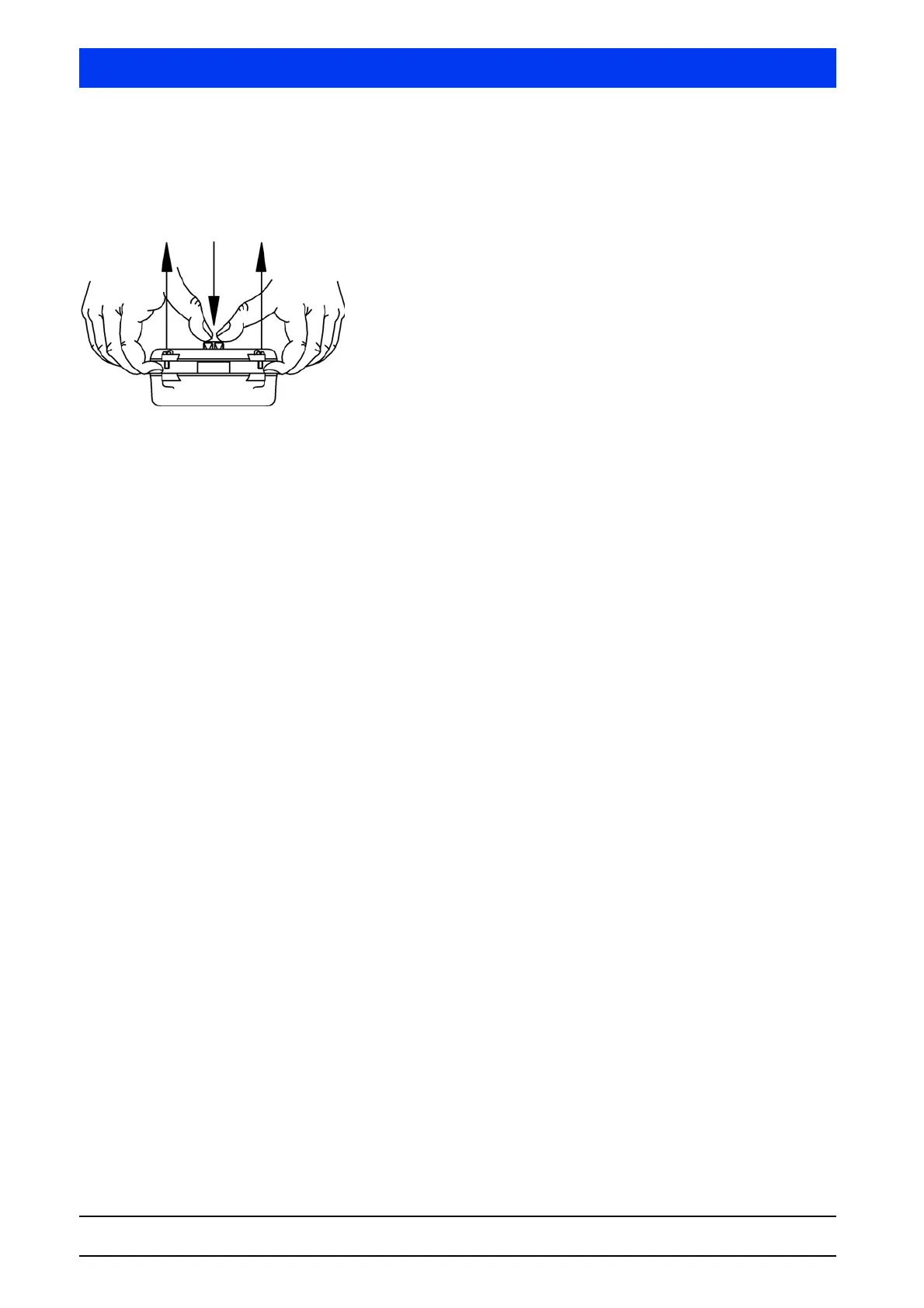

Unscrew the cover of the supplied limit-switch box and pull it
off, as shown in the illustration, while pushing down the
limit-switch shaft. Caution: Do not lose the cover sealing!
Remove shaft mounting bracket by opening the screws and
take off the limit-switch shaft.
Apply LOCTITE (or a similar adhesive) on mounting thread, put
on the supplied cork sealing and attach the bottom part of the
limit-switch box. Fix it using the screws supplied.
The two trip cams on the limit-switch shaft are fixed by one
screw each. Untighten these screws.
Further steps see "Adjusting the trip cams" on page 2-292 and
"Technical Specification / Electrical Wiring" on page 2-293.
