Measure 105
11.4 Gate Measurement
The 2194 supports gate measurements and performs the selected measurement within the upper and lower limits of the
gate. Setting the gate will aect the measurement of all voltage, time, and delay parameters.
1. Press Measure –> Gate –> On to open the gate measurement.
2. Press the Gate A softkey to move the position of gate A by the Universal Knob.
3. Press the Gate B softkey to move the position of gate B by the Universal Knob.
4. Press the Gate A-B to move the positions of the gate A and B simultaneously by the Universal Knob.

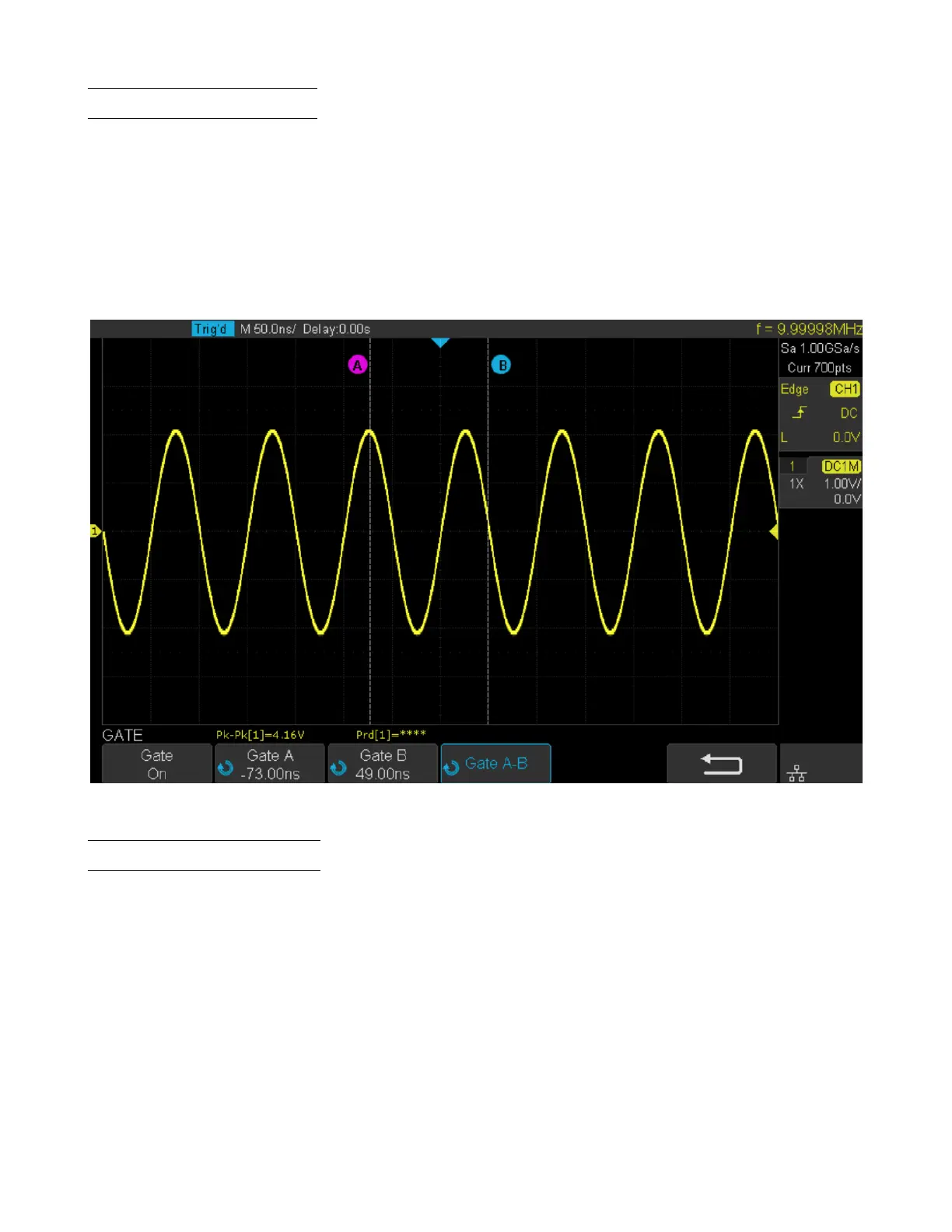

Figure 11.8 Gate Measurement
11.5 Clear Measurement
Press the Clear softkey to clear all the measurement parameters that are displaying on the screen.
