10.2 Y Cursors
Y cursors are horizontal dotted lines that adjust vertically and can be used to measure voltage (V) or current (A). When
the cursors source is the math function, the unit will match the math function.
Y1 cursor is the top (default position) horizontal dotted line; it can be moved to any vertical place of the screen.
Y2 cursor is the down (default position) horizontal dotted line; it can be moved to any vertical place of the screen.
Use the Universal Knob to set the Y1 and Y2 cursor values and the values are displayed in the cursors box along with
the dierence between Y1 and Y2 (Y). (See gure 10.2)
When set cursor type to Y2-Y1, use Universal Knob will move the Y1 and Y2 cursors together. The value under the
menu option is the dierence between the Y1 and Y2 cursors.

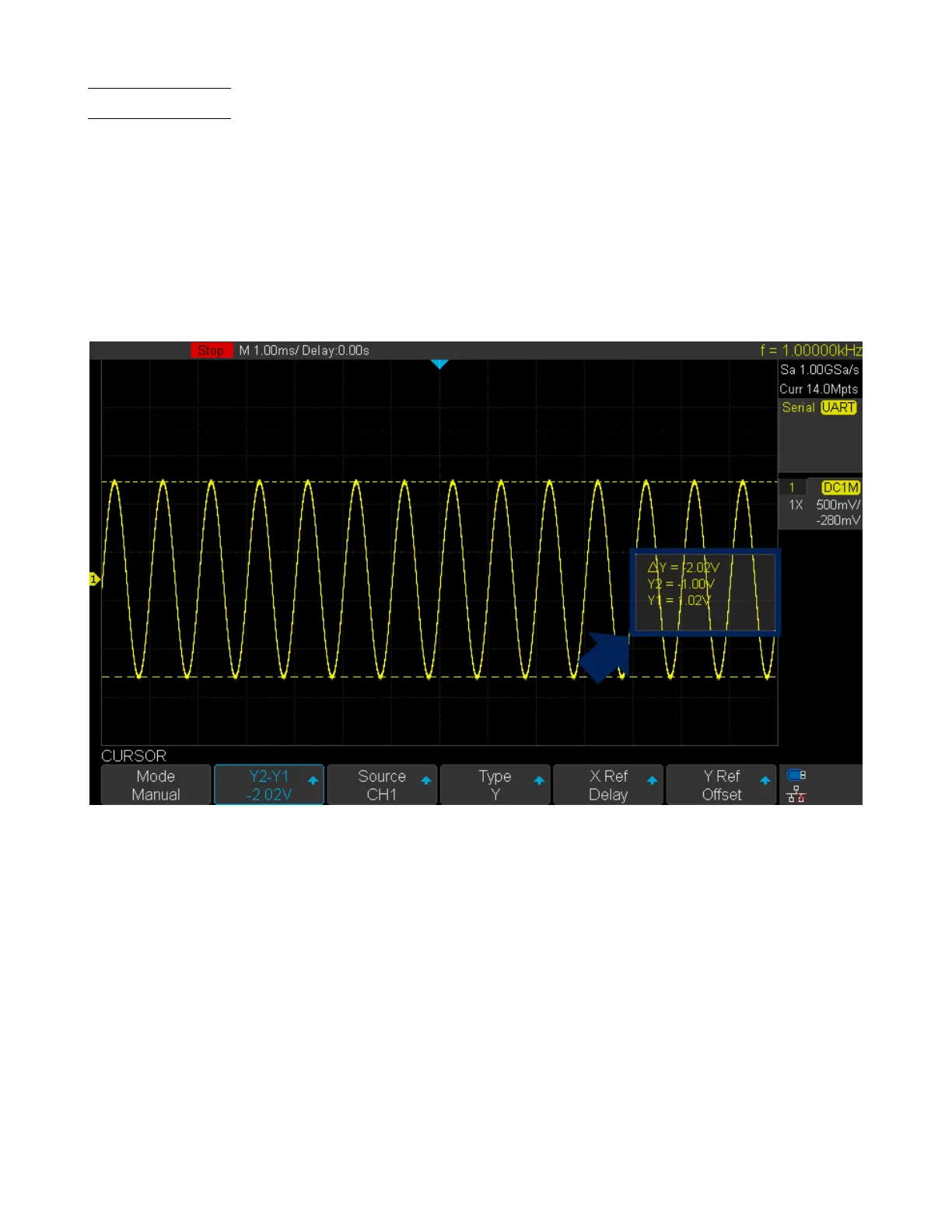

Figure 10.2 Y Cursors Box
