7.5.1 Interpreting LIN Decode
The frame of decoding result:
• Protected Identier Field is displayed in frame
• Data Length is displayed in frame
• Data Field is displayed in frame.
• Checksum Field is displayed in frame.
• Indicates there is not enough space on the display to show complete content of a frame and some content is
hidden.

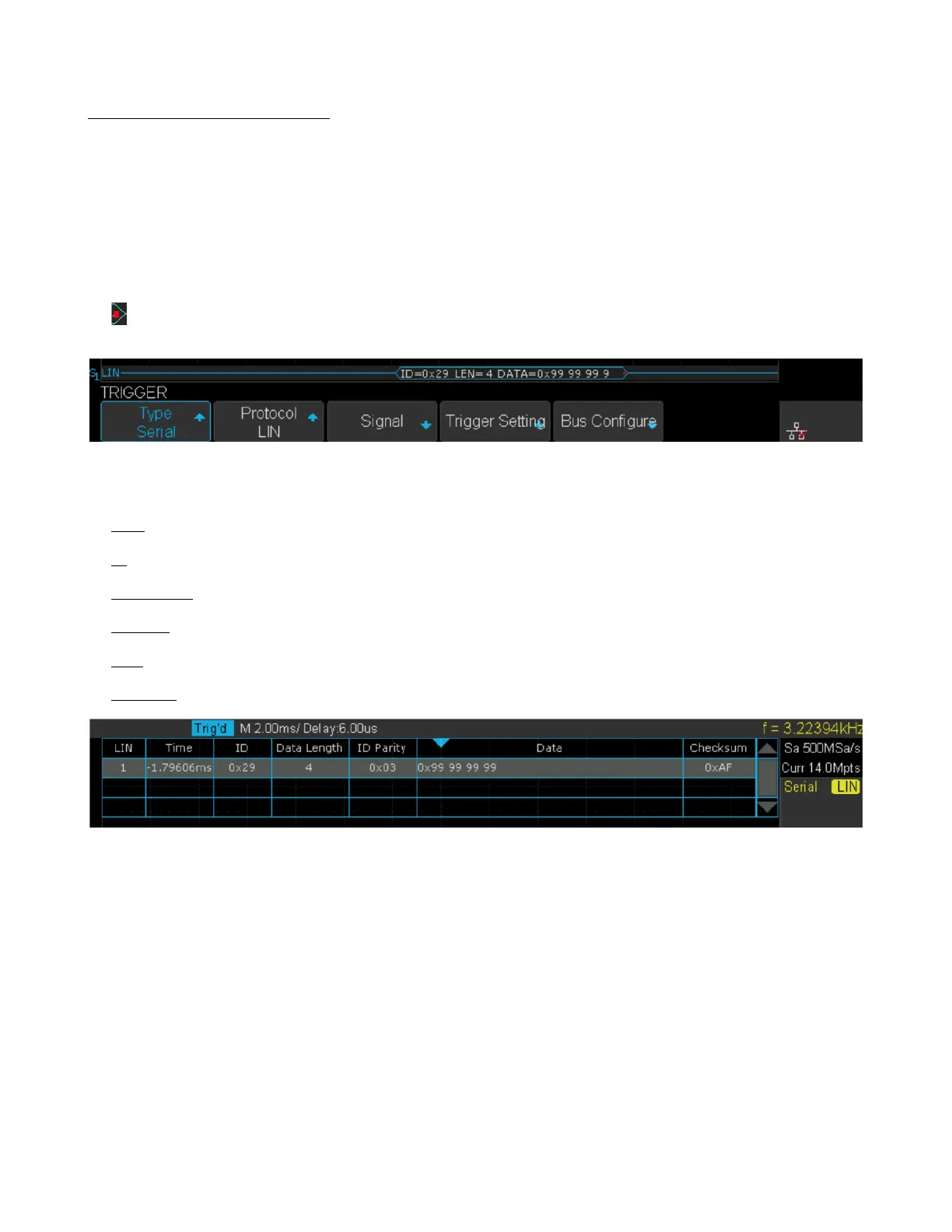

Figure 7.30 LIN Decode Bus Display
The list of decoding result:
• Time — the horizontal displacement between current frame and trigger position.
• ID — the value of frame’s Protected Identier Field.
• Data Length — the length of Data Field.
• ID Parity — the two check bits of Protected Identier Field.
• Data — the value of Data Field.
• Checksum — the value of Checksum Field.
Figure 7.31 LIN Decode List Display
