Display 107

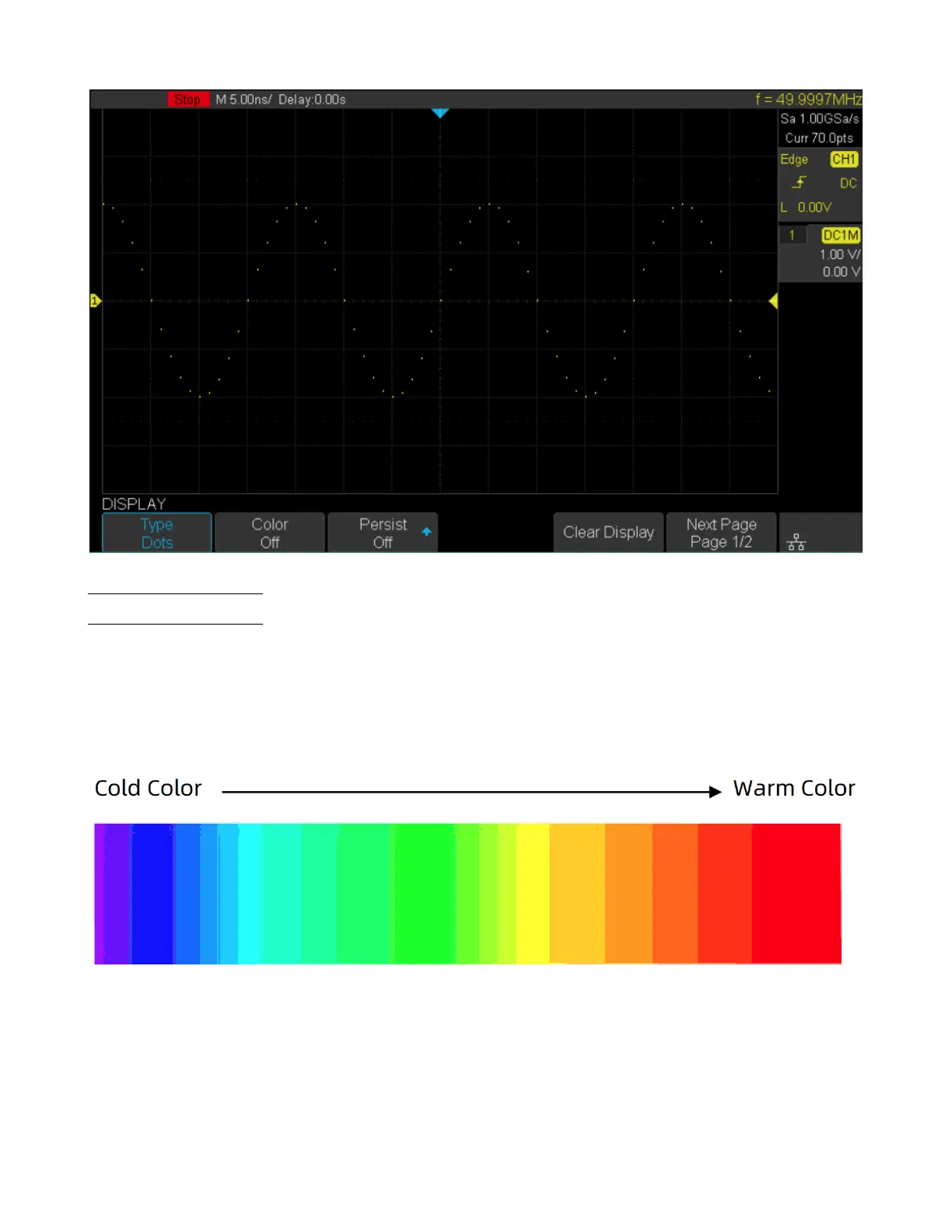

Figure 12.2 Dots Display
12.2 Color Display
Color temperature adopts the change of waveforms’ color to reect the change of the waveforms’ appearing probability.
The greater the probability that the waveform appears, the warmer the color is; the smaller the waveform appears, the
colder the color is.
The picture below shows the change of color from cold to warm. Press the Display key on the front panel, and then press
the Color softkey and set the option to On to turn on the color temperature function. You can compare the waveform’s
color with the picture below to just the probability that the waveform appears.
Figure 12.3 Color Temperature
