Display
The display type, color, persistence, grid type, waveform intensity, grid brightness and transparence can be congured.
12.1 Display Type
Press the Display key on the front panel, then press the Type softkey to select Vectors or Dots display type.
• Vectors: the sample points are connected by lines and displayed. Normally, this mode can provide the most vivid
waveform to view the steep edge of the waveform (such as square waveform).
• Dots: display the sample points directly. You can directly view each sample point and use the cursor to measure the
X and Y values of the sample point.

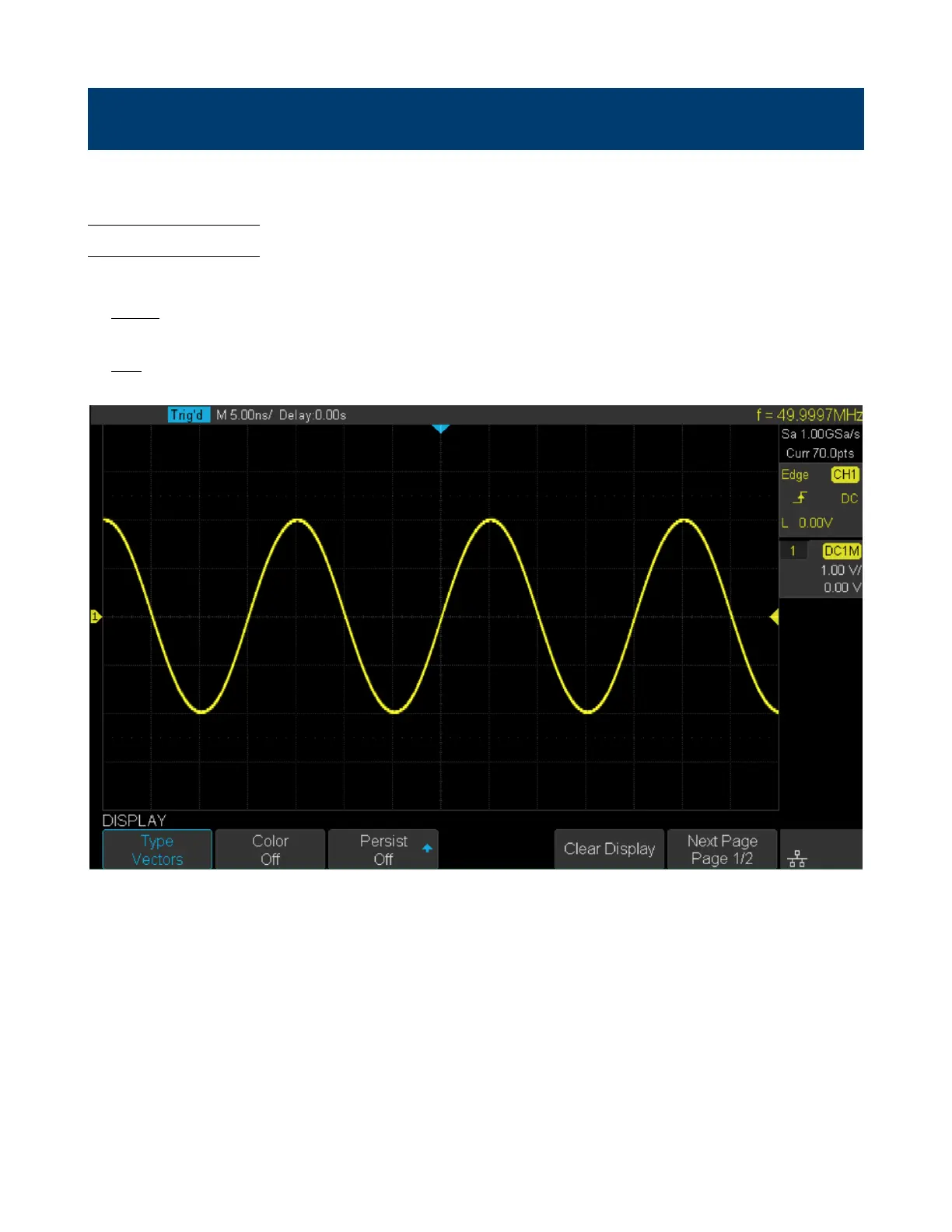

Figure 12.1 Vector Display
