Measure
The oscilloscope provides measurements of 36 waveform parameters and the statistics. It contains voltage, time, and
delay parameters.
Voltage and time parameters are under Type option. The results of the last four selected measurements are displayed at
the bottom of the screen and above the menu. Delay parameters are under All Measure submenu. Set the Delay option
to On to display all the delay parameters.
11.1 Type of Measurement
11.1.1 Voltage Measurements
Voltage measurements include 15 kinds of voltage parameters measurements.

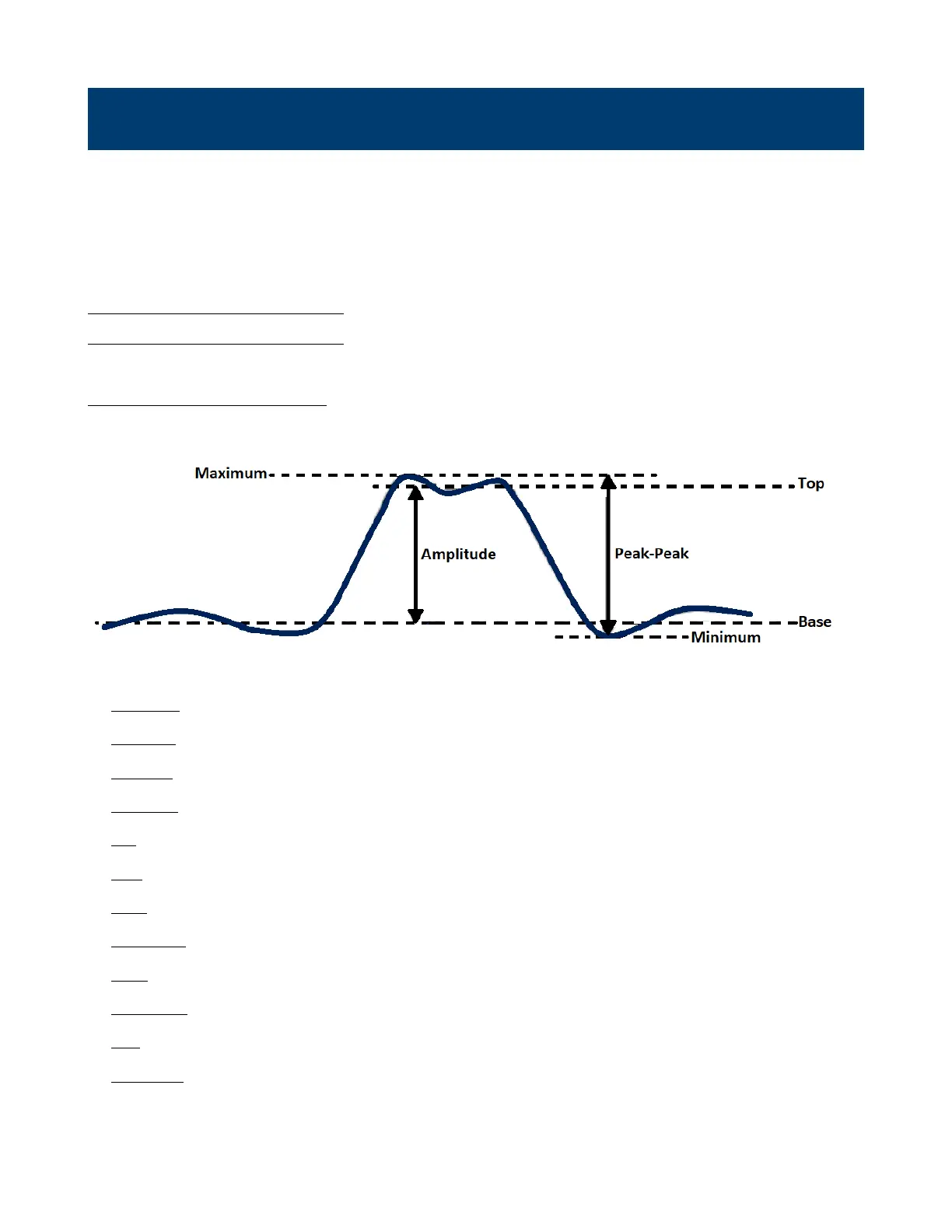

Figure 11.1 Voltage Measurements
1. Peak-Peak: Dierence between maximum and minimum data values.
2. Maximum: Highest value in input waveform.
3. Minimum: Lowest value in input waveform.
4. Amplitude: Dierence between top and base in a bimodal signal, or between max and min in a unimodal signal.
5. Top: Value of most probable higher state in a bimodal waveform.
6. Base: Value of most probable lower state in a bimodal waveform.
7. Mean: Average of all data values
8. Cycle mean: Average of data values in the rst cycle.
9. Stdev: Standard deviation of all data values
10. Cycle Stdev: Standard deviation of all data values in the rst cycle
11. Rms: Root mean square of all data values.
12. Cycle RMS: Root mean square of all data values in the rst cycle.
