Trigger 47

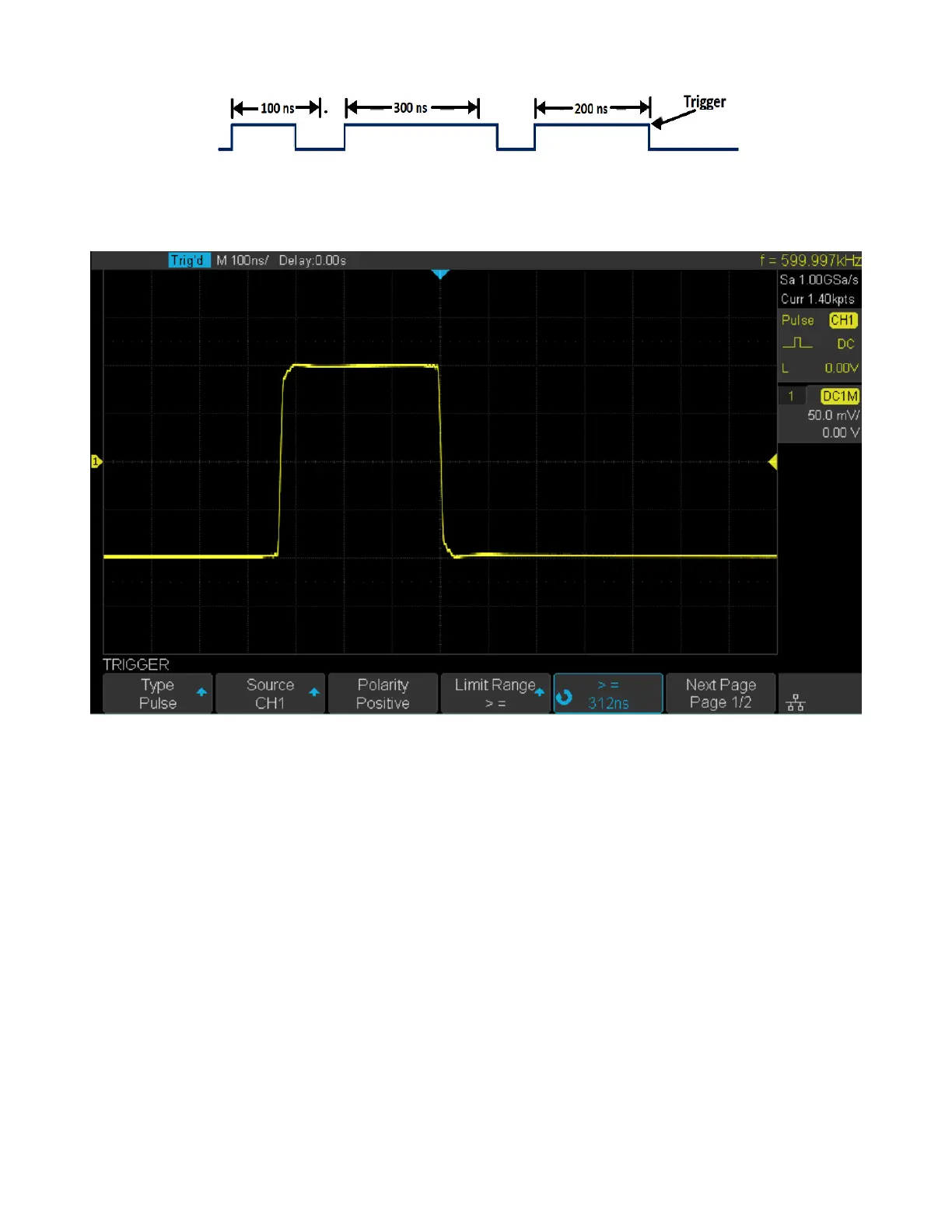

Figure 6.14 Within a Range of Time Value
• - -][- - (outside a range of time value): Trigger when the positive or negative pulse time of the input signal is
greater than the specied upper limit of time and lower than the specied lower limit of time value.
Figure 6.15 Pulse Trigger Example
Coupling and noise reject can be set in pulse trigger, see the sections Trigger Coupling and Noise Rejection for details.
