Serial Trigger and Decode 76

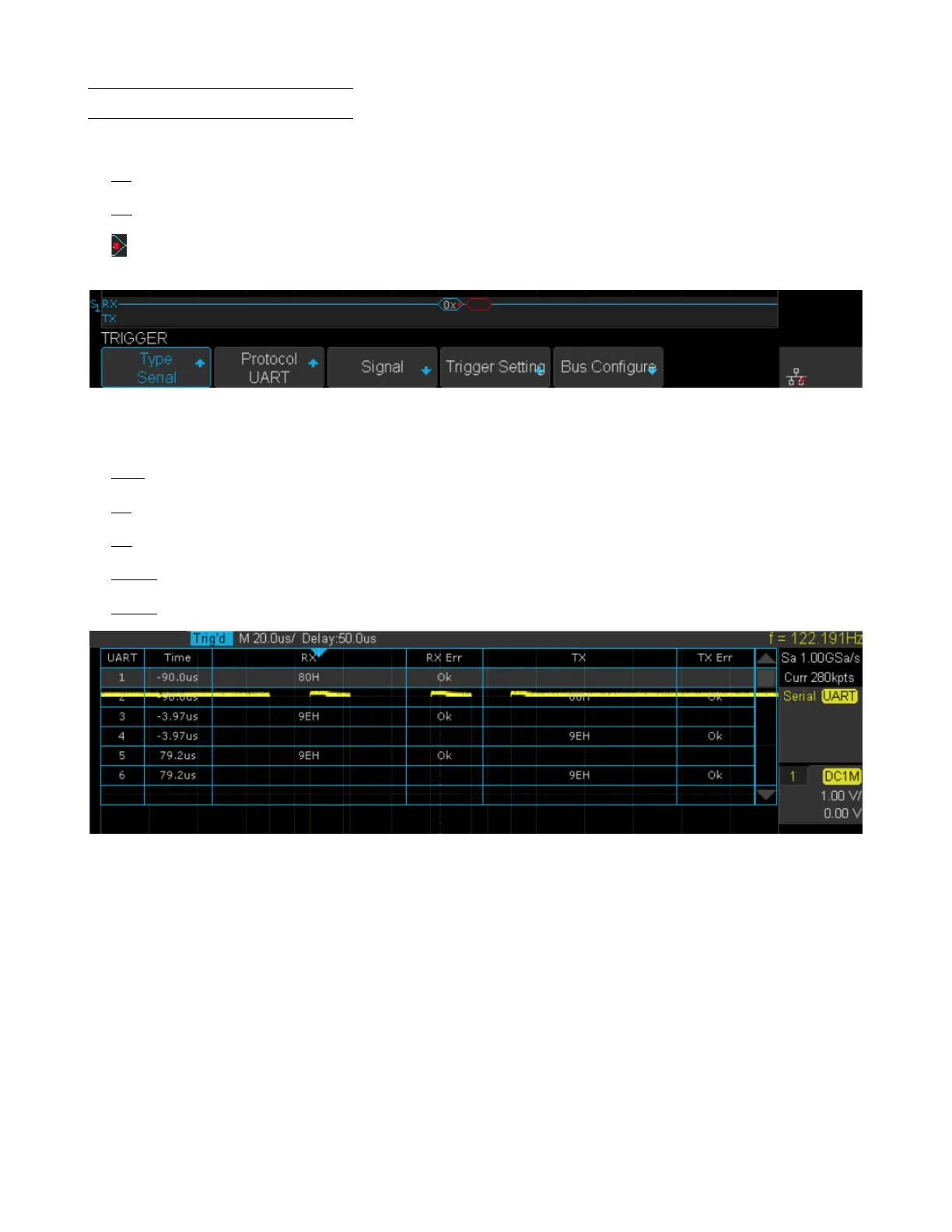

Interpreting UART Decode
The frames of decoding result:
• RX — the decoding result of the data received.
• TX — the decoding result of the data transmitted.
• Indicates there is not enough space on the display to show the complete content of a frame, and some content is
hidden.
Figure 7.22 UART Decode Bus Display
The lists of decoding result:
• Time — the horizontal displacement between current frame and trigger position.
• RX — the receiving channel.
• TX — the transmitting channel.
• RX Err — Parity error or unknown error in the data received.
• TX Err — Parity error or unknown error in the data transmitted.
Figure 7.23 UART Decode List Display
