Serial Trigger and Decode 78
Operation Steps
1. Touch Setup to enter the TRIGGER function menu.
2. Touch Type and select Serial.
3. Touch Protocol and select CAN.
4. Touch Trigger Setting to enter the CAN TRIG SET menu.
5. Touch Condition and select the trigger condition by turning the Universal Knob:
• If you select the REMOTE and ID condition:
a. Touch ID Bits to set the length of ID (11bits or 29 bits).
b. Touch Curr ID Byte and turn the Universal Knob to select the byte that you want to set.
c. Touch ID and set the ID’s value by turning the Universal Knob. (Tips: In order to make is convenient for
the operator to set the parameters, ID b is split into several bytes. For example, if the ID’s length is 11 bits,
it will be split into two bytes, a byte includes 8 bits. If “1st byte” is selected, only the 8 least signicant bits
can be changed.)
• If you select the ID+DATA condition:
a. Touch ID bits to select the ID’s length (11 or 29 bits).
b. Touch Curr ID Byte and turn the Universal Knob to select the byte that you want to modify.
c. Touch ID and set the ID’s value by turning the Universal Knob.
d. Touch Data and set the value of the rst byte by turning the Universal Knob.

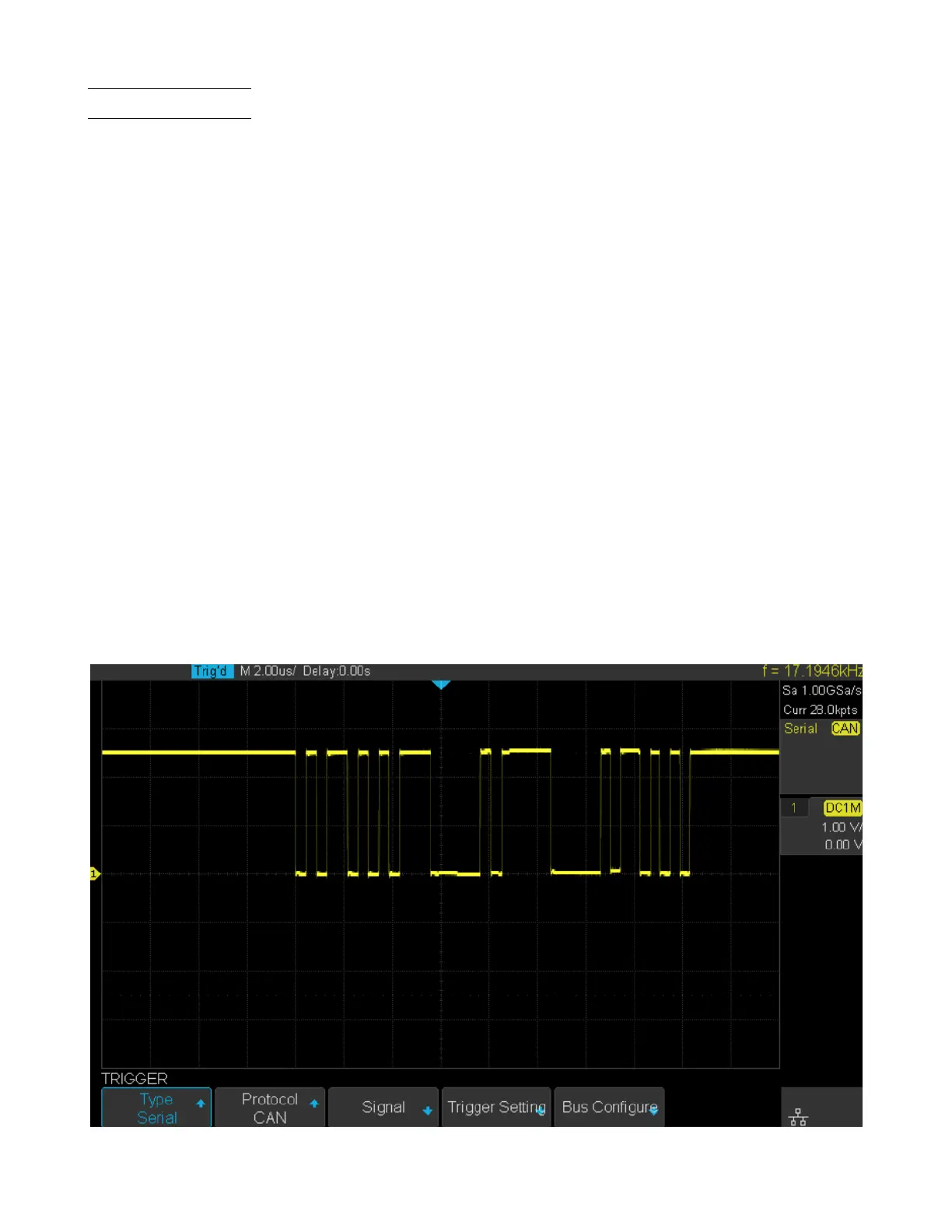

Figure 7.25 CAN Trigger
