ATEM Broadcast Panel Button Mapping and Button Brightness Level
Button Mapping on ATEM Broadcast Panels is easy. On the ATEM Broadcast Panel, go to the
System Control block and press PANEL SETUP followed by BUTTON MAP. Once in the button
map menu, you will notice the System Control window shows a Button number and an Input
number. Turn the knob under ‘Selected Button’ to select the desired button which you want to
associate with an input. You can do the same thing by selecting the desired button in the
Select row. The buttons in the Select row correspond to the buttons directly below them in the
Preview and Program rows. Next, turn the knob under Selected Input to set an input for the
selected button. Choose another button you wish to map and repeat until all the buttons are
mapped with desired inputs.
If you want to change the brightness of the buttons, press the BUTTON LEVEL button and
rotate the knob under ‘Brightness’ until the desired brightness level is seen.
Once you have configured all the button settings, press the SAVE button to save the new
button map and brightness level, or REVERT to discard changes.

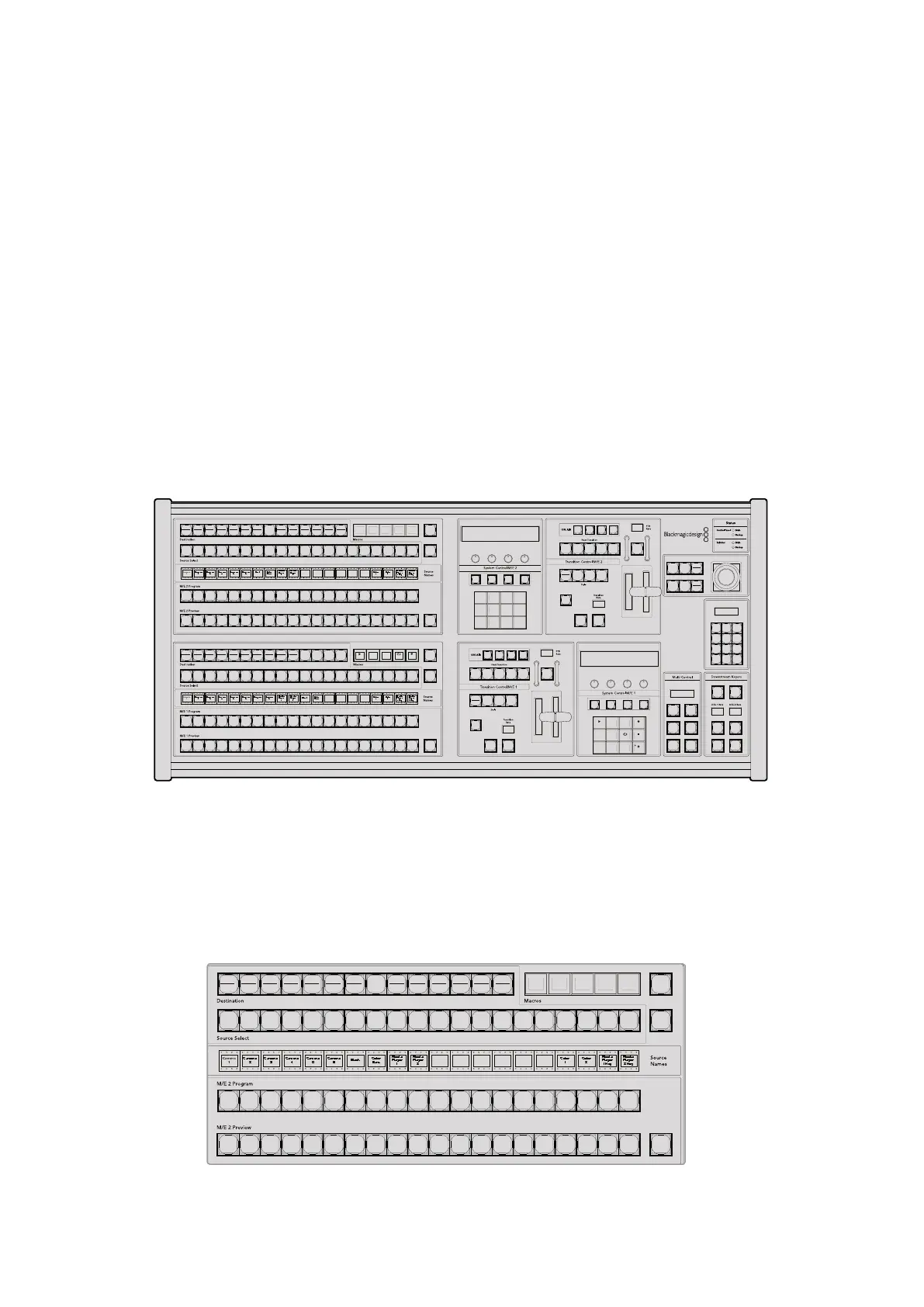

Using the ATEM 2 M/E BroadcastPanel
ATEM 2 M/E Broadcast Panel
Using the Control Panel
Mix Effects
The program bus, preview bus and source names display are used together to switch sources
on the program and preview outputs.
ATEM Mix Effects
