Blackmagicdesign ATEM - Wipe Transitions

Performing Transitions using ExternalHardwarePanels

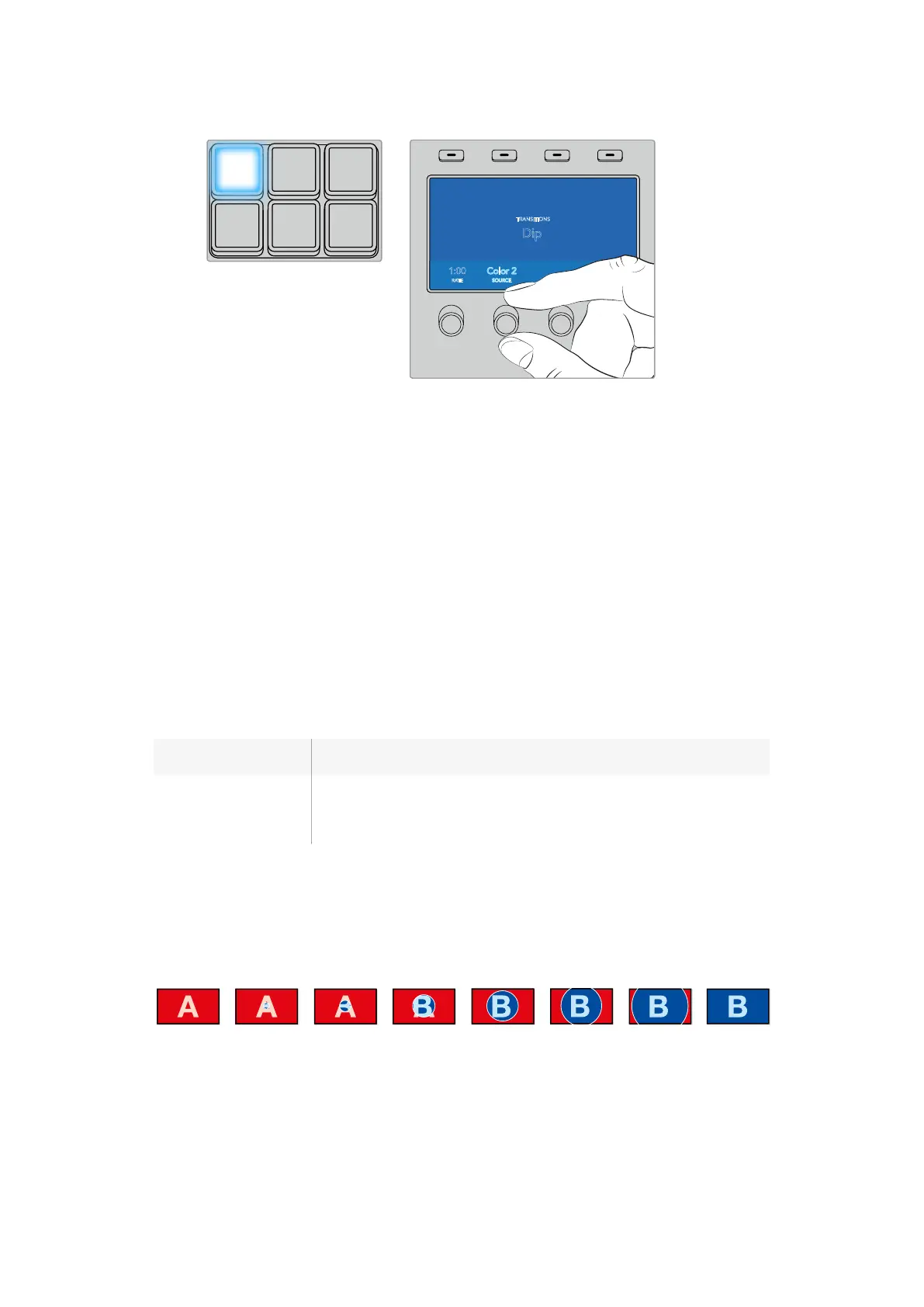

Press the ‘dip’ button in the transition control block, then set
thedip source and transition rate using the LCD menu
To perform a dip transition on an ATEM broadcast panel:
1 On the preview bus, select the video source that you want on the program output.
2 Press the SHIFT and DIP/MIX buttons to select the dip transition type. The DIP/MIX
button illuminates green. The system control automatically navigates to the transition
menu. To manually navigate to the transition menu press HOME > TRANS.
3 In the system control use the knob to adjust the dip rate. The transition rate display in
the transition control block will update dynamically. You can also enter a rate duration
using the number pad followed by the set rate button.
4 Use the select bus to select the dip source.
5 Perform the transition as an auto transition or manual transition from the transition
control block.
Dip transition parameters
Rate The dip transition rate in seconds and frames.
Dip Source The dip source is any video signal in the switcher that will be used as the
intermediate picture for the dip transition, usually a color generator or
media player.
Wipe Transitions
A wipe is a transition from one source to another and is achieved by replacing the current
source by another source with a pattern that forms a shape. For example an expanding circle
or diamond.
Program output for a wipe transition.
To perform a wipe transition on the ATEM 1 M/E Advanced Panel:
1 On the preview bus, select the video source that you want on the program output.
2 Press the WIPE button to select the wipe transition type. The LCD menu will
automatically display the transition settings.
STINGER
COLOR
AUDIO
DIP
AUX
1
4
7
ENTER
2
5
8
0
3
6
9
RESET
TRANSITIONS
1:00
Dip
RATE
Color 2
SOURCE
Color 2
SOURCE
Studio A
Cam 1
Studio A
Cam 2
Studio A
Cam 3
Studio A
Cam 4
Studio A
Cam 5
Media
Player 1
Media
Player 2
Replay
1
Replay
2
Remote
1
Studio A
Cam 1
Studio A
Cam 2
Studio A
Cam 3
Studio A
Cam 4
Studio A
Cam 5
Media
Player 1
Media
Player 2
Replay
1
Replay
2
Remote
1
Studio A
Cam 1
Studio A
Cam 2
Studio A
Cam 3
Studio A
Cam 4
Studio A
Cam 5
Media
Player 1
Media
Player 2
Replay
1
Replay
2
Remote
1
PROGRAM
SHIFT MACRO ON ON ON ON
M/E 1 M/E 2 M/E 3 M/E 4
BKGD
SHIFT
PREV
TRANS
CUT AUTO
DSK 1
CUT
DSK 1
TIE
DSK 2
TIE
DSK 2
CUT
DSK 1
AUTO
DSK 2
AUTO
FTB
DVE STING
WIPE ARM
KEY 1 KEY 2 KEY 3 KEY 4
PREVIEW
HOME SETTINGS
KEYERS
1 2 3
4 5 6
7 8 9
ENTER 0 RESET
DVE STINGER DIP
COLOR
AUDIO AUX
BORDER
CAMERA
CONTROL
WIPE
MEDIA
PLAYERS
SUPER
SOURCE
MIX
FTB
MACRO
MIX
DIP
