Blackmagicdesign ATEM - Setting the Switcher IP Location

Connecting to a Network
Setting the Switcher IP Location
To set the network location of the switcher on the hardware panel, so the panel can find the
switcher and communicate, simply follow these steps:
Changing the IP location on ATEM 1 M/E Advanced Panel
1 When there is no communication with the switcher, the LCD will say 'connecting'
andnotify you of the IP address it is searching for. If the panel can't find the switcher,
the connection will time out and a notification will ask you to check the IP address.
Pressthe 'network' soft button above the LCD to open the network settings.
2 In the network settings, press the right arrow in the system control buttons next to the
LCD to move to the 'switcher IP address' setting.
3 Now use the corresponding LCD soft control knobs to set the correct IP address for
your switcher.
4 Press the 'save changes' soft button to confirm the setting.
Your panel will now connect with your switcher.

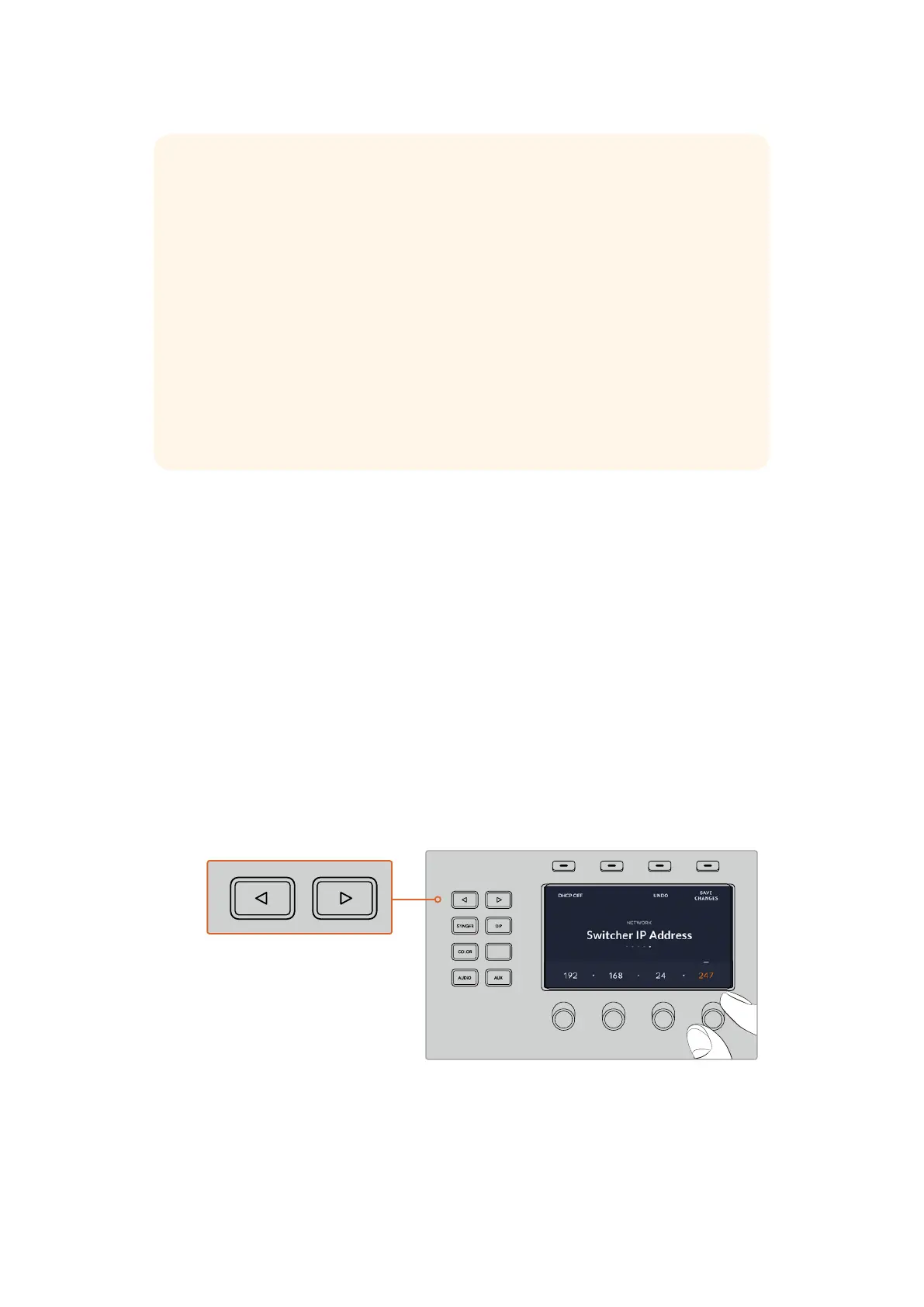

On the ATEM 1 M/E Advanced Panel, press the ‘network’ LCD soft button to open
the network settings on the LCD, then use the system control arrow buttons
to navigate to the switcher IP address setting. Use the soft controls to set the
network IP address for your switcher, and don’t forget to save the changes.
Understanding External Hardware Panel Network Settings
If you are using an external ATEM hardware panel, the hardware panel's network
settings are configured from the network setup menu in the hardware panel's system
control, or using the system control LCD menu on the ATEM 1 M/E Advanced Panel.
Along with its own IP address, the hardware panel also needs to be configured with the
network location of the switcher, so that communication between the two devices can
be established over the Ethernet connection. If the hardware panel’s network settings
are correctly configured, you will see the panel light up and buttons turn on so you can
control the switcher.
If the hardware panel is displaying a message looking for the switcher, then you will
need to set the hardware panel’s network settings so that the panel and switcher share
the same subnet, and the network location to which the hardware panel is trying to
connect, matches the switcher’s IP address. The following section shows you how to
set the switcher IP location on your ATEM hardware control panel.
STINGER
COLOR
AUDIO
DIP
AUX
1
4
7
ENTER
2
5
8
0
3
6
9
RESET
UNDO
SAVE
CHANGES
HYPERDECK SETTINGS
Switchers IP Address
. . . .
192 168 24 247. . .
BACK DHCP OFF
STINGER
COLOR
AUDIO
DIP
AUX
1
4
7
ENTER
2
5
8
0
3
6
9
RESET
UNDO
SAVE
CHANGES
HYPERDECK SETTINGS
Switchers IP Address
. . . .
192 168 24 247. . .
BACK DHCP OFF
