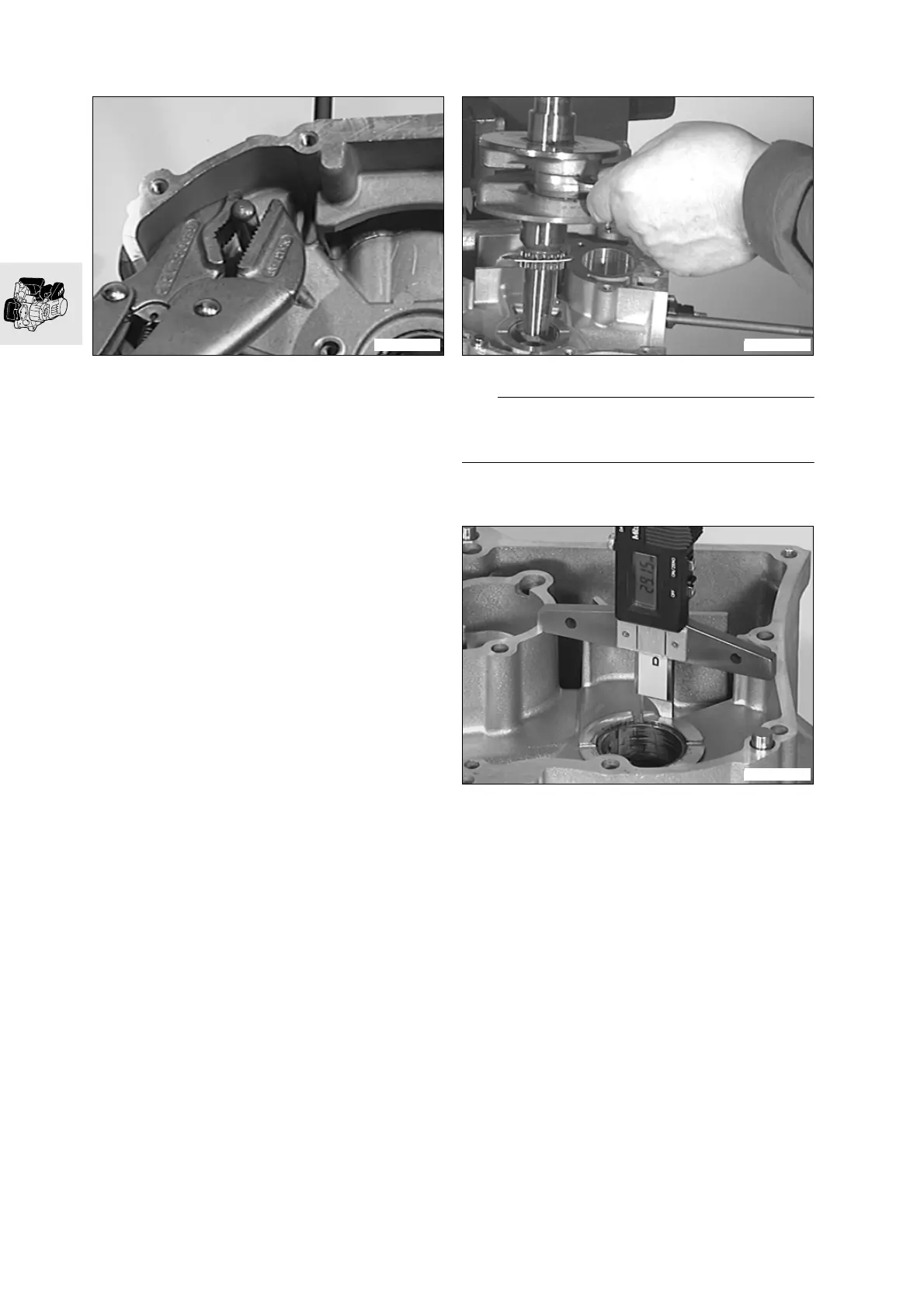

Replacing cylindrical pin for starter double gear
Wear data:
Cylinder pin Ø ......................... 9.95 mm (0.3917 in)
•
Heat surrounding zone to approx. 100 °C
(212 °F) and use vise grips to remove cylindrical
pin
•
Install end with small chamfer first and press in
until seated
Installing crankshaft
e
Attention:
Check end float if crankshaft or crankcase has been
replaced!
Measuring end float in housing
•
Using depth gauge, measure distance from
crankcase mating face to flat surface on crank-
shaft
C1111140 C1111150
C1111160
