BMW C1 200 - Checking Valve Clearances; (Inspections I, II and III); Swivel out Powertrain Cradle

00.36
Checking valve clearances
(Inspections I, II and III)
Swivel out powertrain cradle
•
Secure front wheel
•

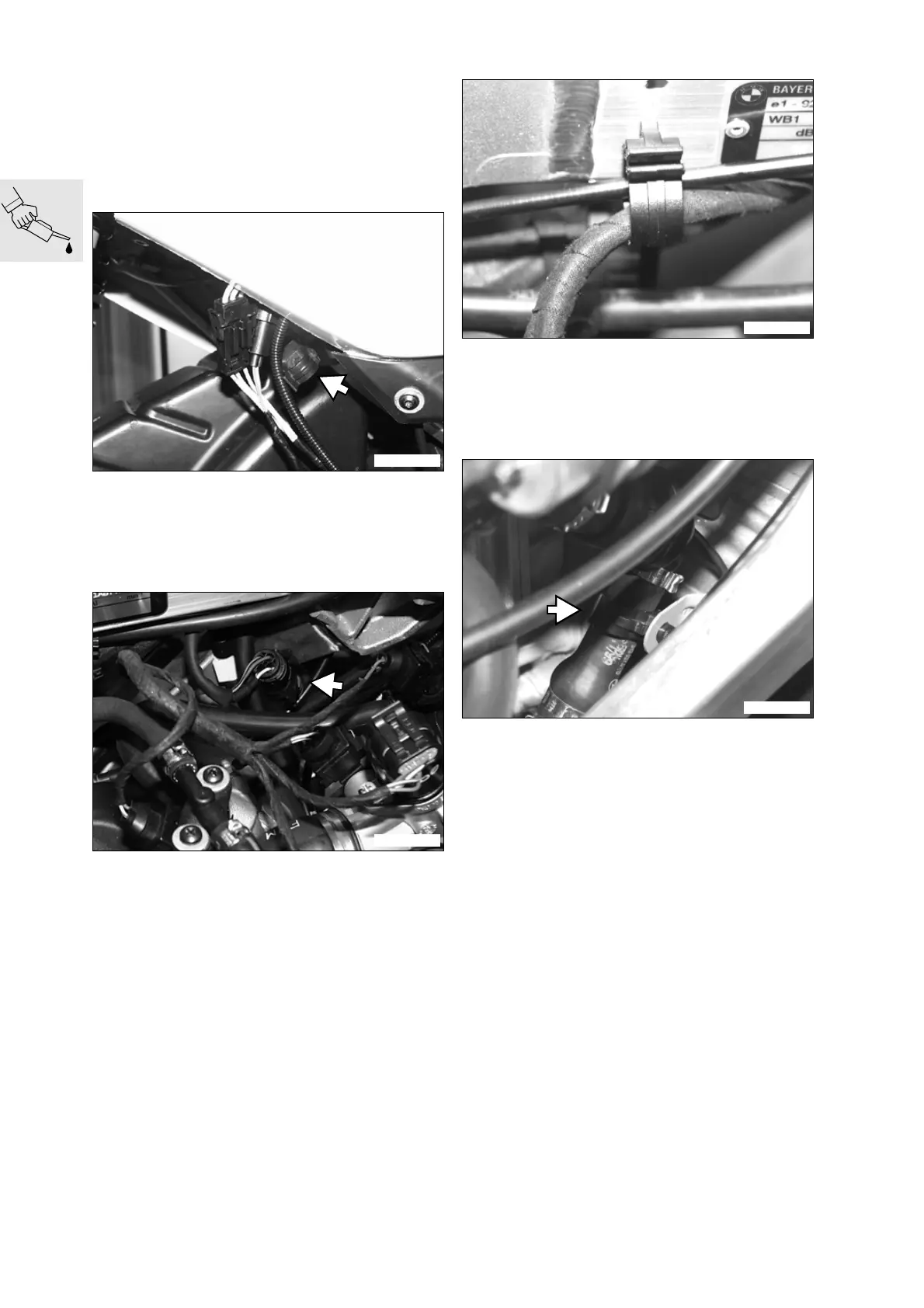

Remove wiring from clip (arrow):
- Alternator
- Ignition unit
•
Open the seat
•
Release clip and disconnect plug from oxygen
sensor (arrow)
•
Remove wiring from clip:
- Injector
- Air temperature sensor
- Idle actuator
- Coolant temperature sensor in cylinder head
•
Release coolant hose from clamp at injector and
on variator cover bracket (arrow)
C1000090
C1000100
C1000110
C1000120
