46.52

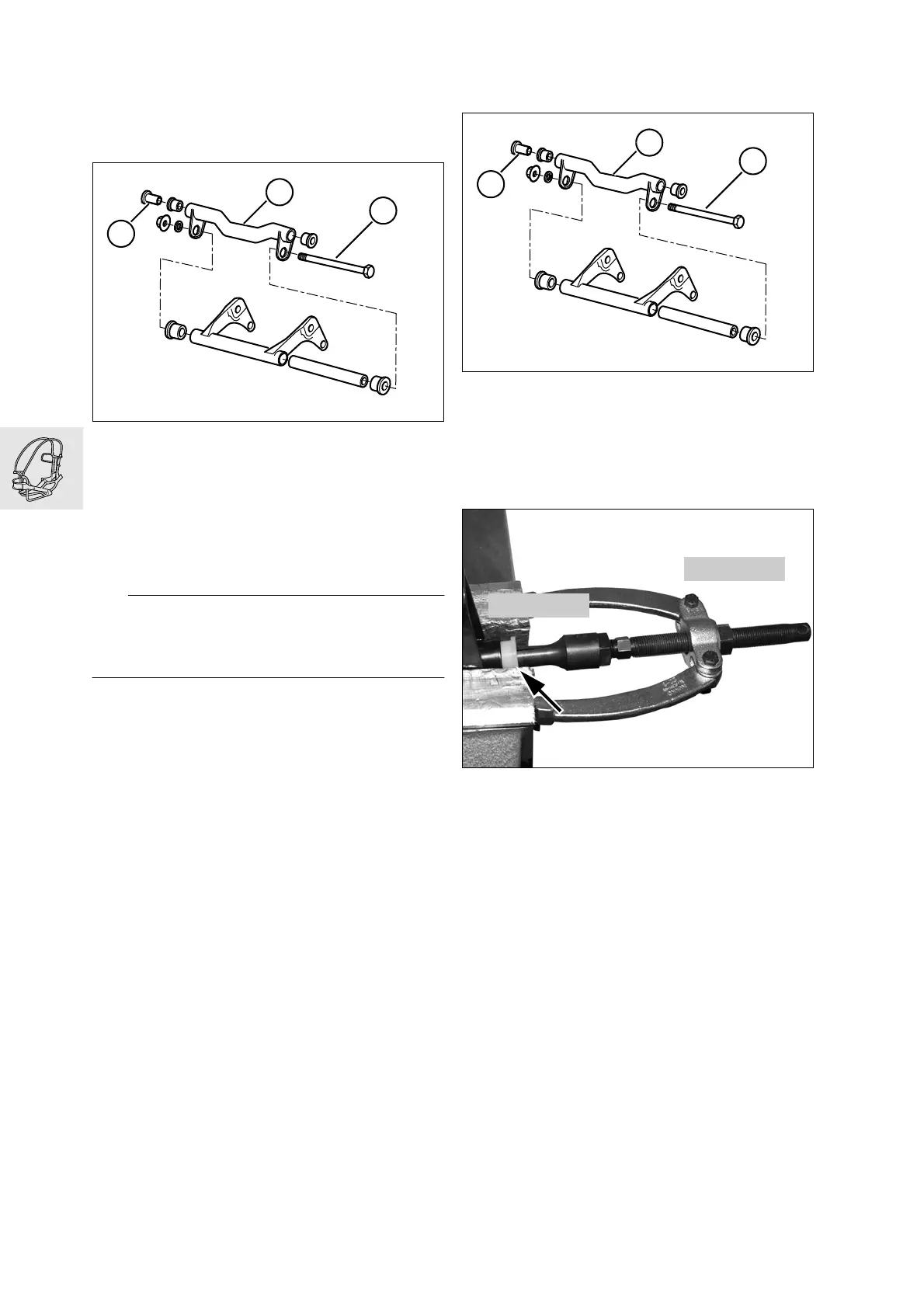

Coupling for swing arm bearing
Replacing bearing sleeve, right
– Removing powertrain cradle mounts
•
Remove bolt (3) for joint
•
Remove coupling (2) for swing arm bearing
•
Remove bearing sleeve (1) on right
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
The protrusion on the right is shorter than on the left
on the swing arm coupling (2)!
Watch the swing arm coupling (2) during installation!
X
Torque specification:
Coupling stud............................................... 73 Nm
Replacing left/right bush
– Removing powertrain cradle mounts
•
Remove bolt (3) for joint
•
Remove swing-arm coupling (2)
•
Note bearing sleeve (1) on right
Additional operation: bush on right:
– Remove bearing sleeve on right (1)
•
Remove bearing sleeve (arrow) on left/right with
extractor,
BMW No. 00 8 572,
and internal ex-
tractor (21/3),
BMW No. 00 8 574
C1460680
3
1
2
C1460680
3
1
2
C1460690
00 8 574
00 8 572
