BMW C1 200 - Removing and Installing Coolant Pipes; Removing Engine Coolant Feed Pipe

17.10
Removing and installing coolant
pipes
17 12 183
Removing engine coolant feed
pipe
– Remove front fairing panel
– Remove left and right running boards
– Remove top, left and right tunnel panels
– Remove right side trim panel
– Remove knee pad
a
....................................................See Group 46
– Draining coolant (
a
17.14)
•

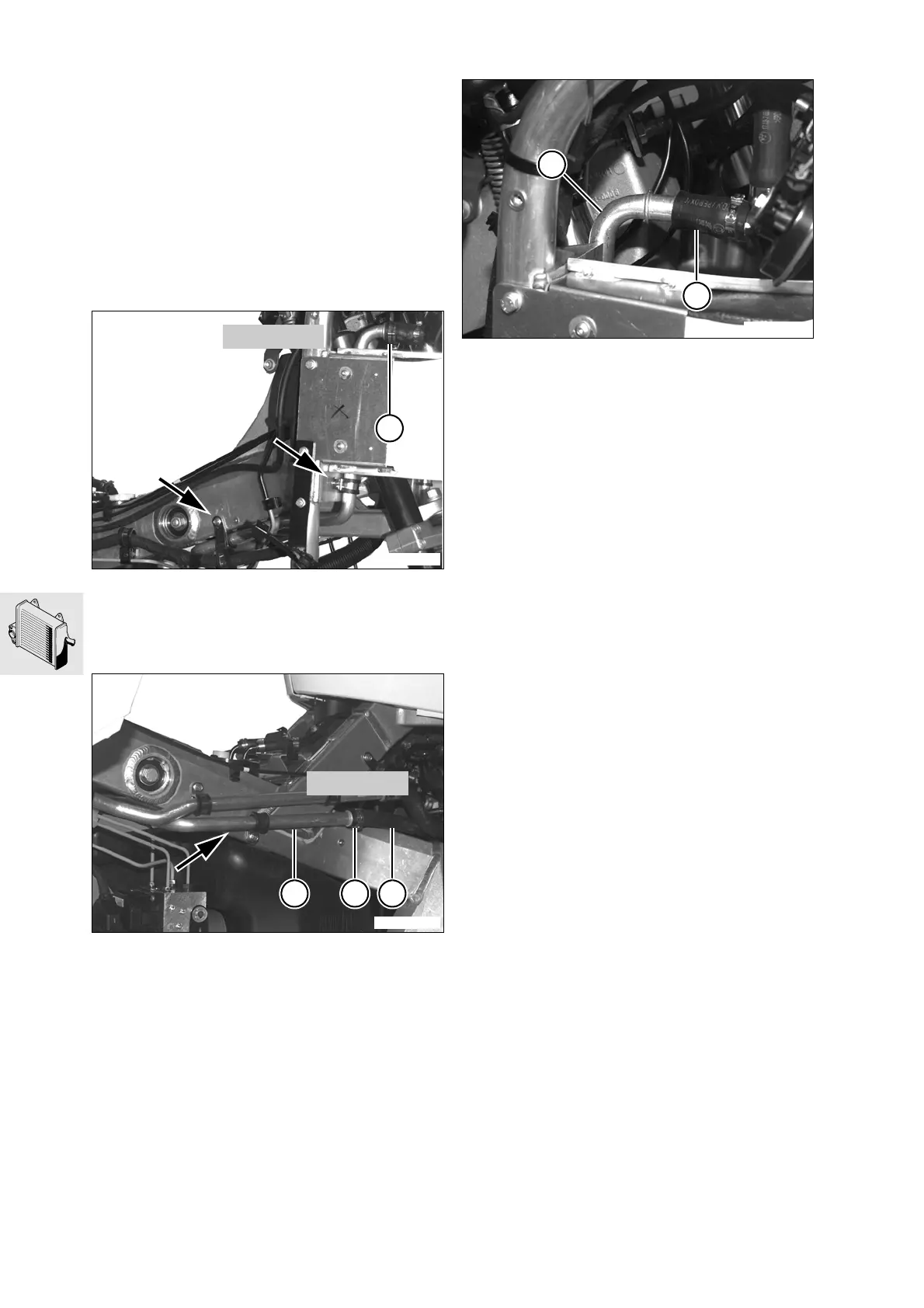

Remove fasteners (arrows) from frame on the
right
•
Release hose clamps (1) with pliers,
BMW No. 17 5 500
•
Remove fasteners (arrows) from frame on the left
•
Release hose clamps (2) with pliers,
BMW No. 17 5 500
•
Disconnect coolant hose (3) on left from coolant
pipe (1)
•
Turn the handlebars all the way to the right
•
Press coolant pipe (1) inward/to rear and pull off
coolant hose (2)
•
Pull coolant pipe (1) forward to remove
C1170080
1
17 5 500
C1170090
2 3
17 5 500
1
C1170100
2
1
