BMW C1 200 - Auxiliary Swing Arm; Installing Auxiliary Swing Arm; Removing Auxiliary Swing Arm

33.5
Auxiliary swing arm
Removing auxiliary swing arm
– Remove silencer assembly
a
....................................................See Group 18
•
Use hoist,
BMW No. 00 1 570,
to raise C1 slight-
ly
•
Disengage vent hose (3) from clip (4)
•
Remove fasteners (1, 2, 5, 6) on auxiliary swing
arm and remove it
33 17 180
Replacing Silentblocks
•
Use drift,
BMW No. 33 6 691,
and sleeve,
BMW No. 33 6 692,
to remove Silentblock
When installing:
•
Installation is the reverse of the removal proce-
dure
Installing auxiliary swing arm
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Install the ABS sensor wire carefully and secure it
with cable ties!
X
Torque specification:
Auxiliary swing arm mount M8...................... 21 Nm
Auxiliary swing arm mount M10
(+ Loctite 243) .............................................. 60 Nm

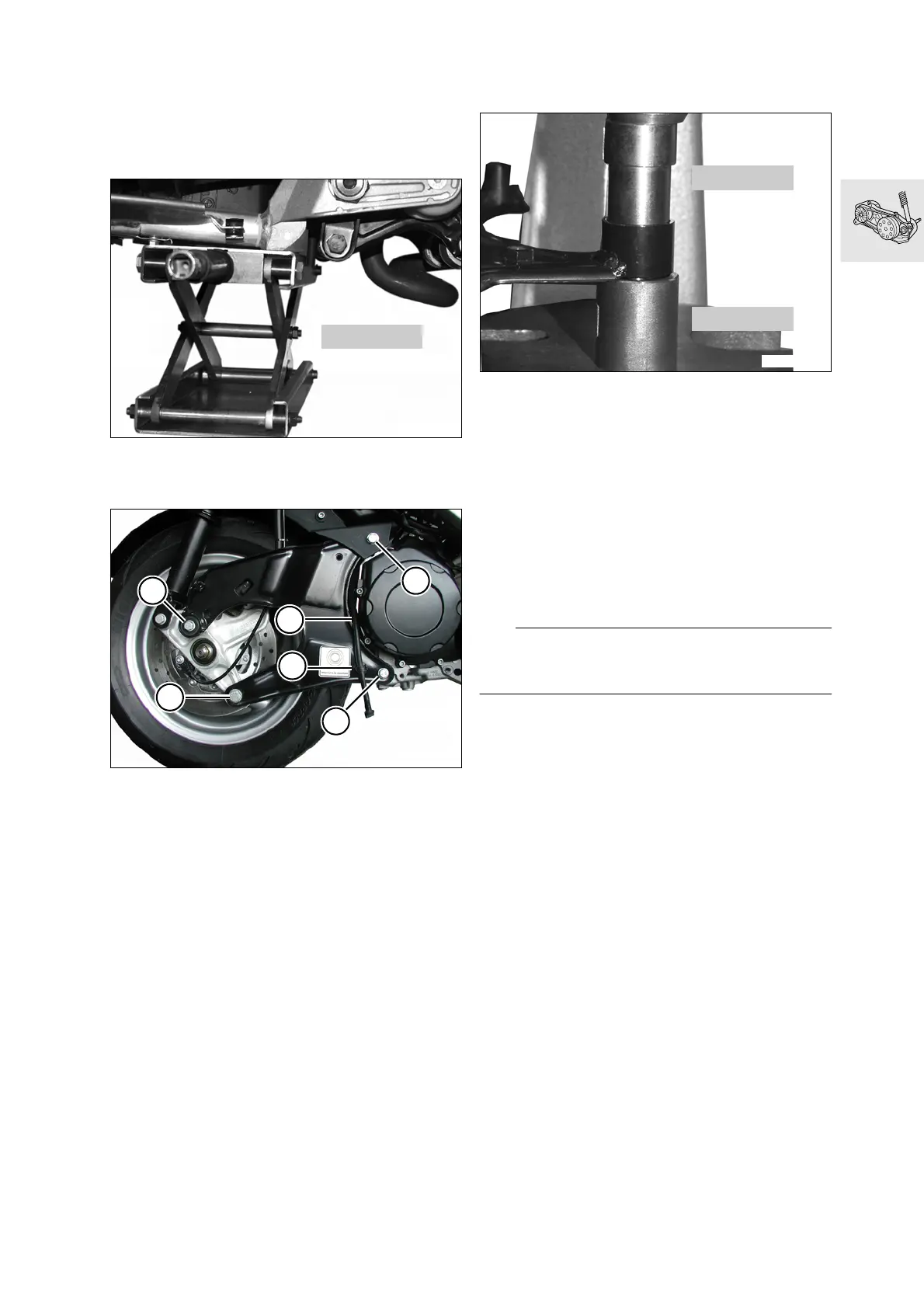

C1130050
00 1 570
C1340011
2
1
3
4
6
5
C1460700
33 6 692
33 6 691
