32.9

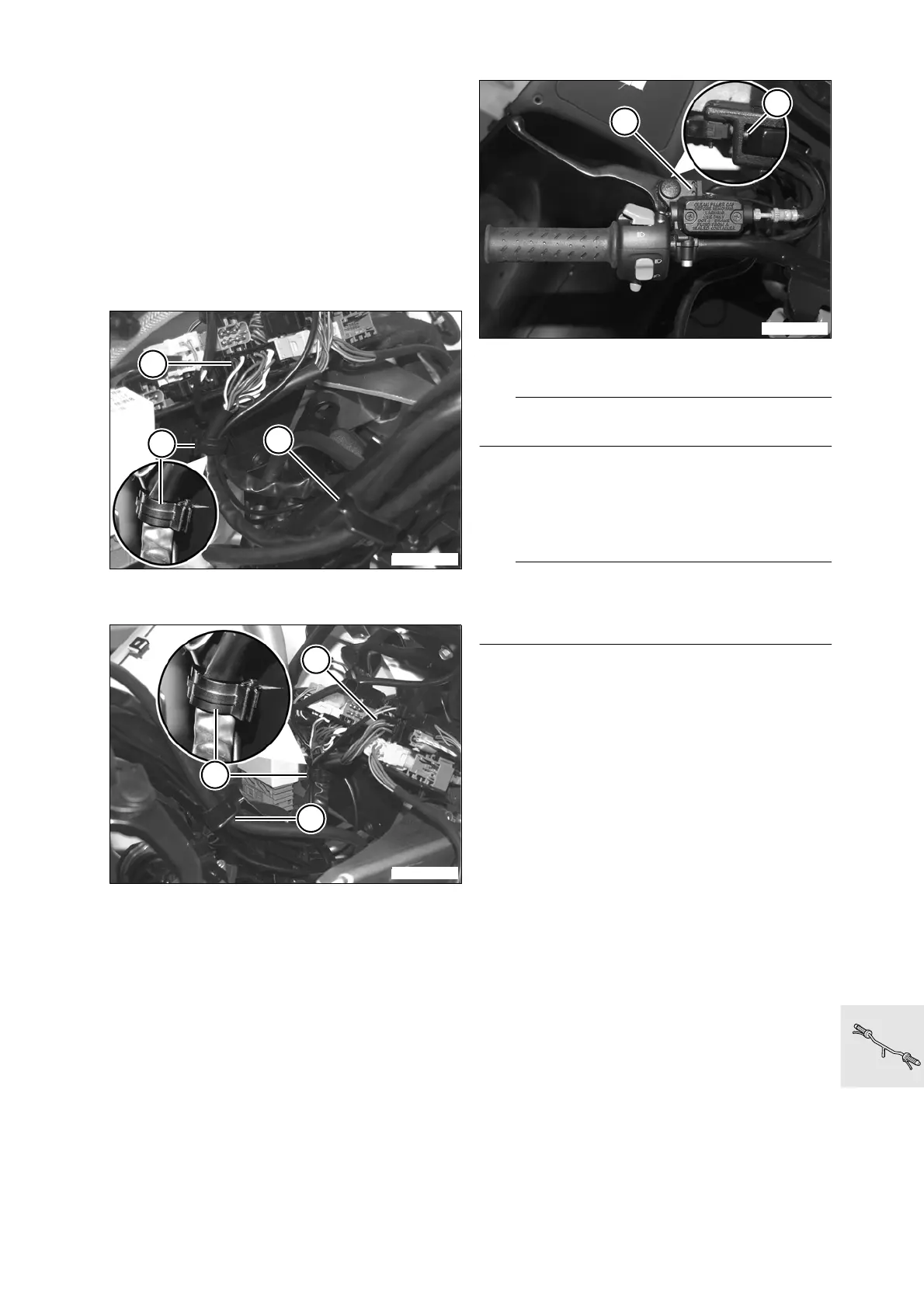

Replacing left/right brake lamp
switch
This section describes the procedure for the left-
side brake lamp switch. The operations for the brake
lamp switch on the right side are essentially the
same.
– Remove handlebar trim
– Remove instrument trim
a
....................................................See Group 46
Left brake lamp switch:
Right brake lamp switch:
•
Disconnect plug (1)
•
Open cable clip (3)
•
Remove cable harness from bracket (2) on han-
dlebar
•
Remove 2 fasteners (1) for brake-light switch
L
Note:
Remove plunger (2) for brake-light switch!
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Make sure that lines and cables are correctly routed.
Ensure adequate clearance between combination
switch and brake lever assembly!
Adjustment data:
Adjust the brake-light switch so that the brake light
comes on no later than when the brake pads con-
tact the brake disc.
X
Torque specification:
Brake lamp switch (M2) ...........................hand-tight
C1320000
2
1
3
C1320030
1
3
2
C1320080
2
1
