32.7

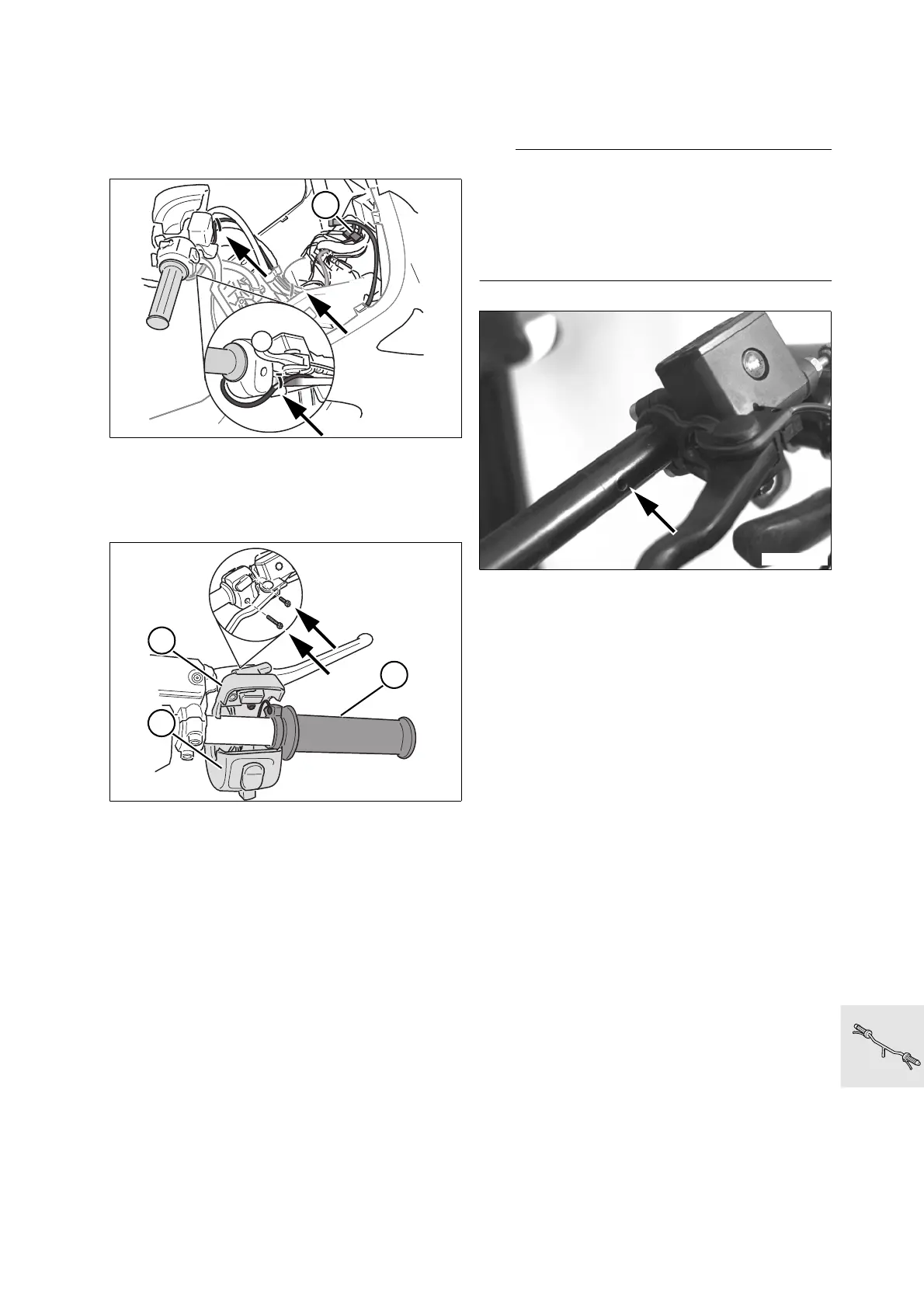

Heated grip, removing and installing
on right
– Remove handlebar trim
– Remove instrument trim
a
....................................................See Group 46
•
Disconnect plug (1)
•
Open cable ties (arrows)
•
Remove wiring harness from bracket on handle-
bar
•
Remove fasteners (arrows)
•
Fold back rear section of combination switch (3)
•
Lift front part of combination switch (1) slightly to
the front whilst simultaneously detaching the
heated throttle twist grip (2) from the combina-
tion switch
•
Slide heated throttle twist grip (3) to the right and
release Bowden cable from curved washer
•
Remove heated throttle twist grip
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Ensure that lines and Bowden cable are routed cor-
rectly!
Install combination switch with the antitwist mecha-
nism in the correct location.
Ensure adequate clearance between combination
switch and brake fitting!
•
Secure front section of combination switch in
socket (arrow)
•
Checking throttle cable play, adjusting if neces-
sary
Adjustment data:
Move the handlebars all the way from left to right
and ensure that throttle valve does not move
X
Torque specification:
Combination switch mount............................. 4 Nm
C1320140
1
C1320150
1
3
2
C1320061
