BMW C1 200 - Removing and Installing Throttle-Valve Assembly

13.5
13 54 017
Removing and installing
throttle-valve assembly
–Open the seat
a
....................................................See Group 52
•

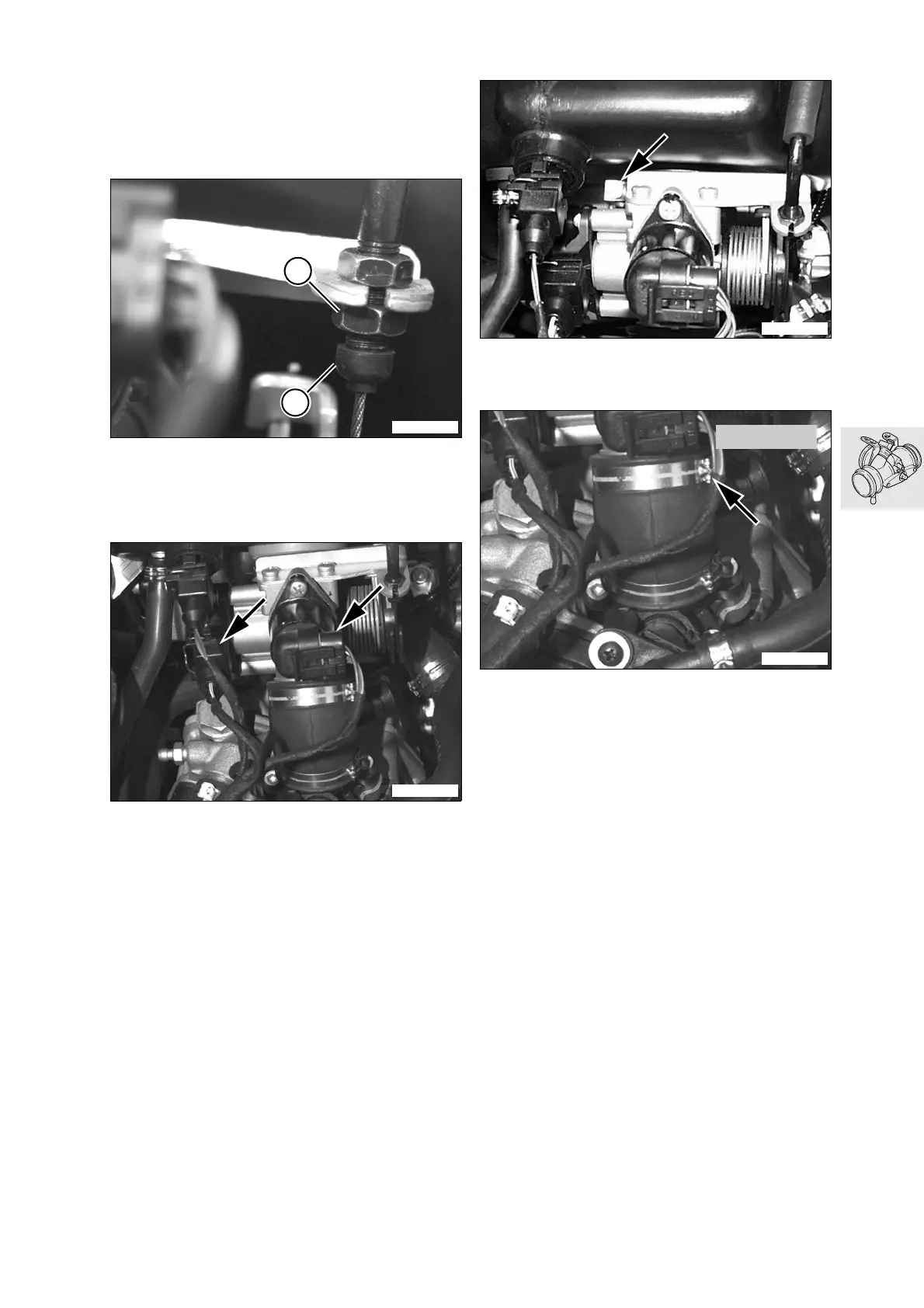

Pull rubber cap (2) down
•
Remove fastener (1) for throttle cable
•
Disengage throttle cable from bracket and cam
disc
•
Disconnect plugs (arrows)
•
Loosen plenum chamber/throttle valve hose
clamp (arrow)
•
Release hose clamp (arrow) on intake air duct
with pliers,
BMW No. 17 5 500
•
Pull up rear of throttle valve assembly whilst si-
multaneously separating from intake-air duct
•
Remove throttle valve assembly from plenum
chamber by pulling to the front
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Throttle cable mount ...................................... 8 Nm
Hose clamp.............................................hand-tight
C1130060
2
1
C1130070
C1130020
C1130080
17 5 500
