46.48
Greasing the bearings
– Remove stand
•
Remove bearing bushings (F, L)
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
L
Note:
Always install new O-rings (B, I)!
•
Grease bushes with
Shell Retinax EP2
Fluids and lubricants:
Shell Retinax EP2
46 52 011

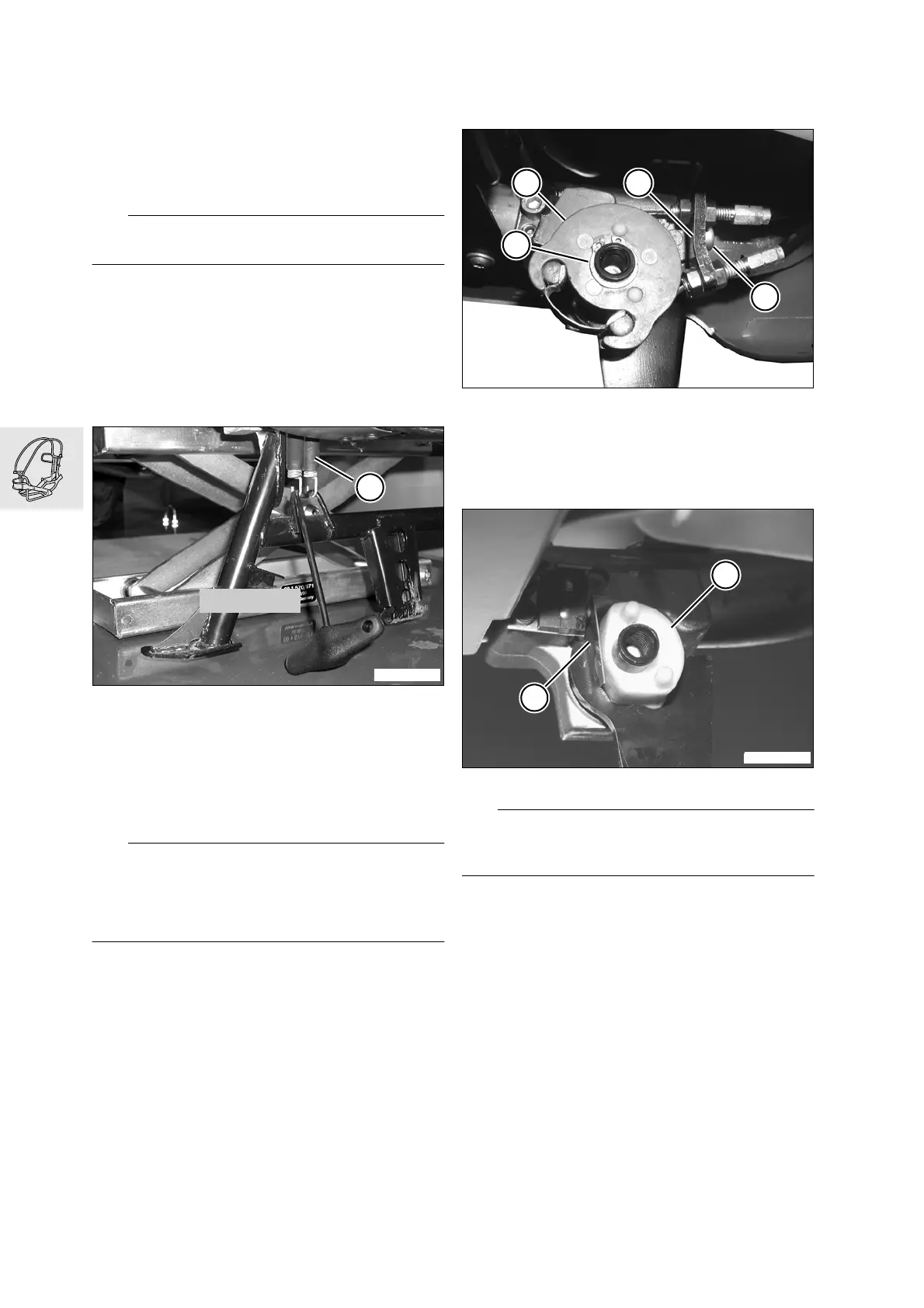

Replacing tension spring(s)
•
Remove spring(s) (4) with hook,
BMW No. 46 5 721
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
L
Note:
Make sure that the tension springs are correctly po-
sitioned.
The open side of the hook eye must face toward the
rear on the stand!
46 52 013
Lobe/overload guard transfer
element replacement
•
Remove fastener (11) for retainer of Bowden
cable (10)
•
Remove circlip (12)
•
Remove cable pulley (3), loosening Bowden ca-
ble locknuts as necessary
e
Attention:
When removing lobe/overload guard transfer
element (D) do not damage switch (8)!
•
Remove lobe/overload guard transfer
element (D)
C1460551
4
46 5 721
C1460481
11
12
3 10
C1460590
D
8
