00.63
Examine crash elements
(Inspections I, II, III and IV)
•
Examine foam-rubber element from below for
damage and cracks; replace if necessary
a
................................................... See Group 46
Check shoulder bar and deforma-
tion element
(Inspections I, II, III and IV)
•
Check deformation element for damage; replace
if necessary
•
Check shoulder bars for damage; replace if nec-
essary
a
................................................... See Group 46

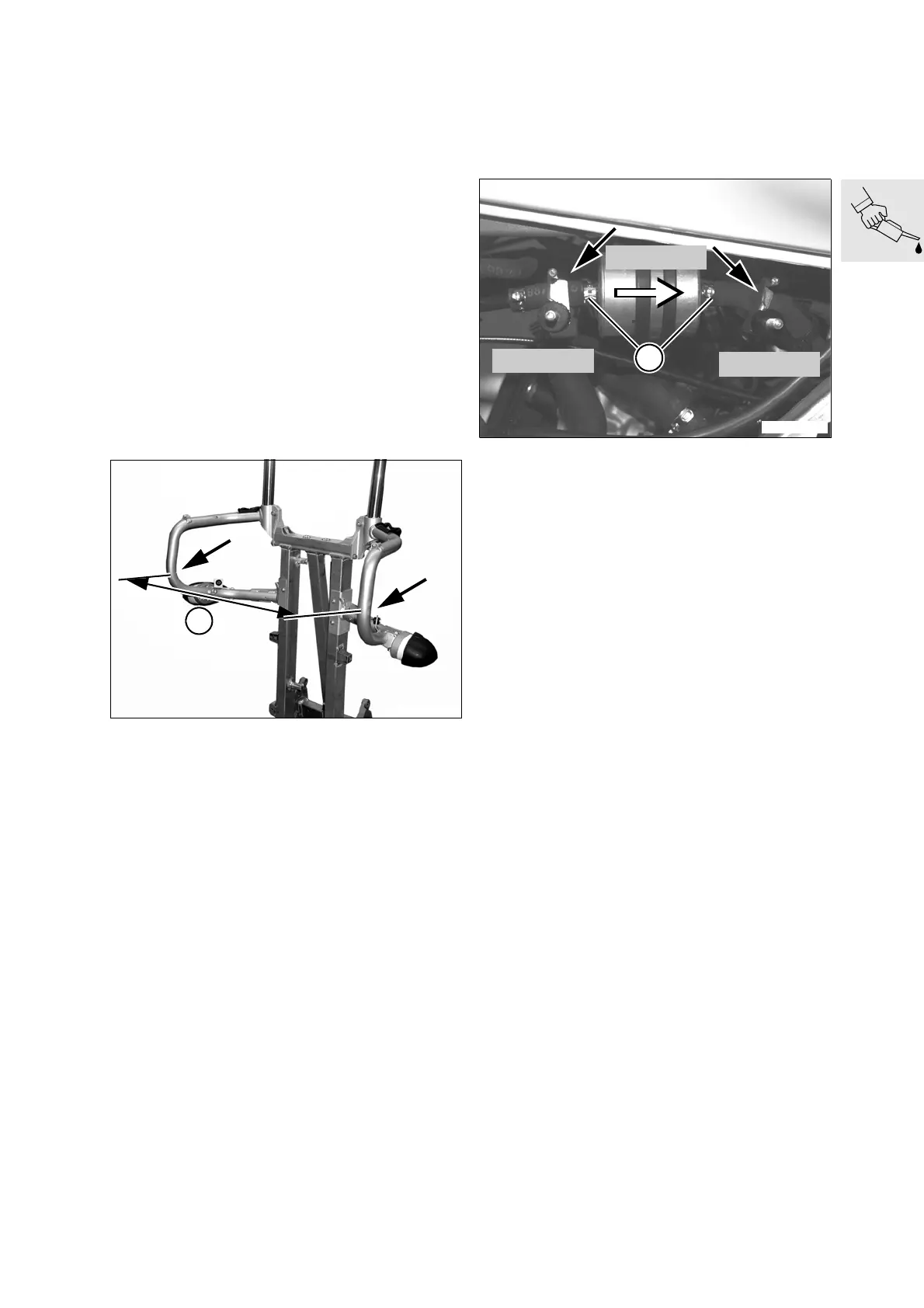

Measure shoulder bar
•
Measure gap (x) between shoulder bars
•
Record result
Measurement levels
1 Runout of lower radius (arrows)
Wear data:
Gap "x"..............................................612…616 mm
............................................ (24.0945…24.2520 in)
Replacing fuel filter
(Inspection II) every 37,500 km (22,500 miles )
– Remove left service cover
•
Use clamp,
BMW No. 13 3 010,
to seal off the
fuel lines
•
Open hose clamp with pliers,
BMW No. 17 5 500
•
Replace fuel filter
•
Installation is the reverse of the removal proce-
dure
•
Note specified flow direction when installing
C1460950
x
C1160090
1
13 3 010
13 3 010
17 5 500
