BMW C1 200 - Replacing Left;Right Bearing Bushings for Tubular Swinging Arm

46.54
Replacing left/right bearing bushings for tubular
swinging arm

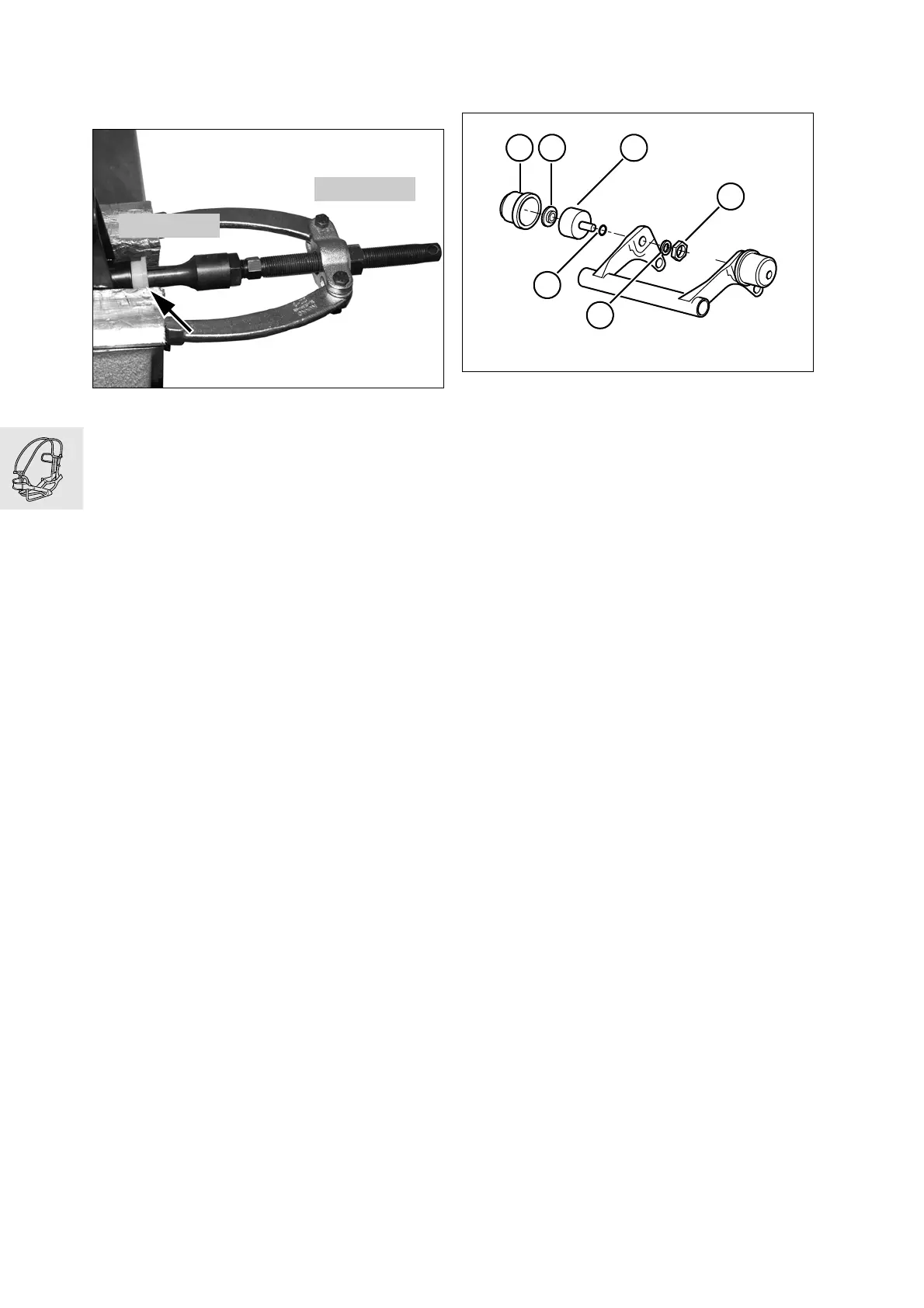

– Remove spacer bushing
•
Pull out bearing sleeve (arrow) on left/right with
extractor,
BMW No. 00 8 572,
and internal ex-
tractor (21/3),
BMW No. 00 8 574
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Coupling stud............................................... 73 Nm
46 71 023 Replacing right/left Silentblocs for
tubular swing arm
•
Remove fastener (4)
•
Remove rubber bushing (3)
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Rubber bushing attachment......................... 42 Nm
