BMW C1 200 - Replacing Passage in Front Windscreen; Wiper Motor Replacement

61.20
Replacing passage in front
windscreen
– Remove wiper arms (
a
61.22)
e
Attention:
Avoid damaging or scratching the windscreen; if
necessary mask it off!
•

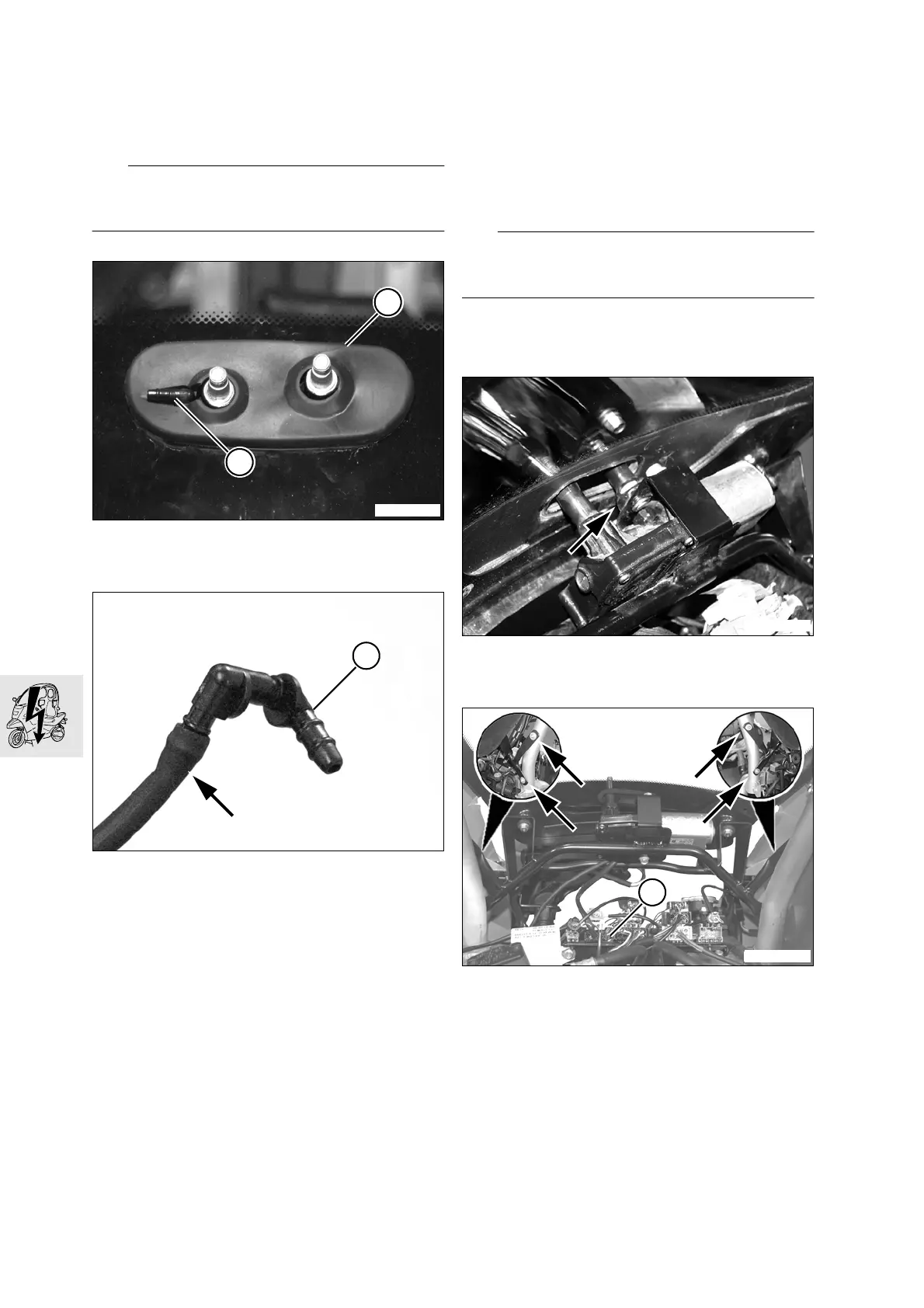

Remove rubber grommet (1) from windscreen
•
Remove passage (2)
•
Disconnect delivery hose (arrow) from
passage (2)
When installing:
•
Installation is the reverse of the removal proce-
dure
Wiper motor replacement
– Remove front fairing panel
– Remove left and right mirrors
– Detach side trim on left and right of front frame at
top
– Remove instrument trim
a
....................................................See Group 46
e
Attention:
Avoid damaging or scratching the windscreen; if
necessary mask it off!
– Remove wiper arms (
a
61.22)
– Remove rubber grommet (1) from windscreen
(
a
61.20)
•
Remove stationary shaft (arrow) from wiper mo-
tor
•
Disconnect plug (1)
•
Avoid placing the windscreen under
tension (arrows) while detaching windscreen
wiper motor bracket
