61.21
•

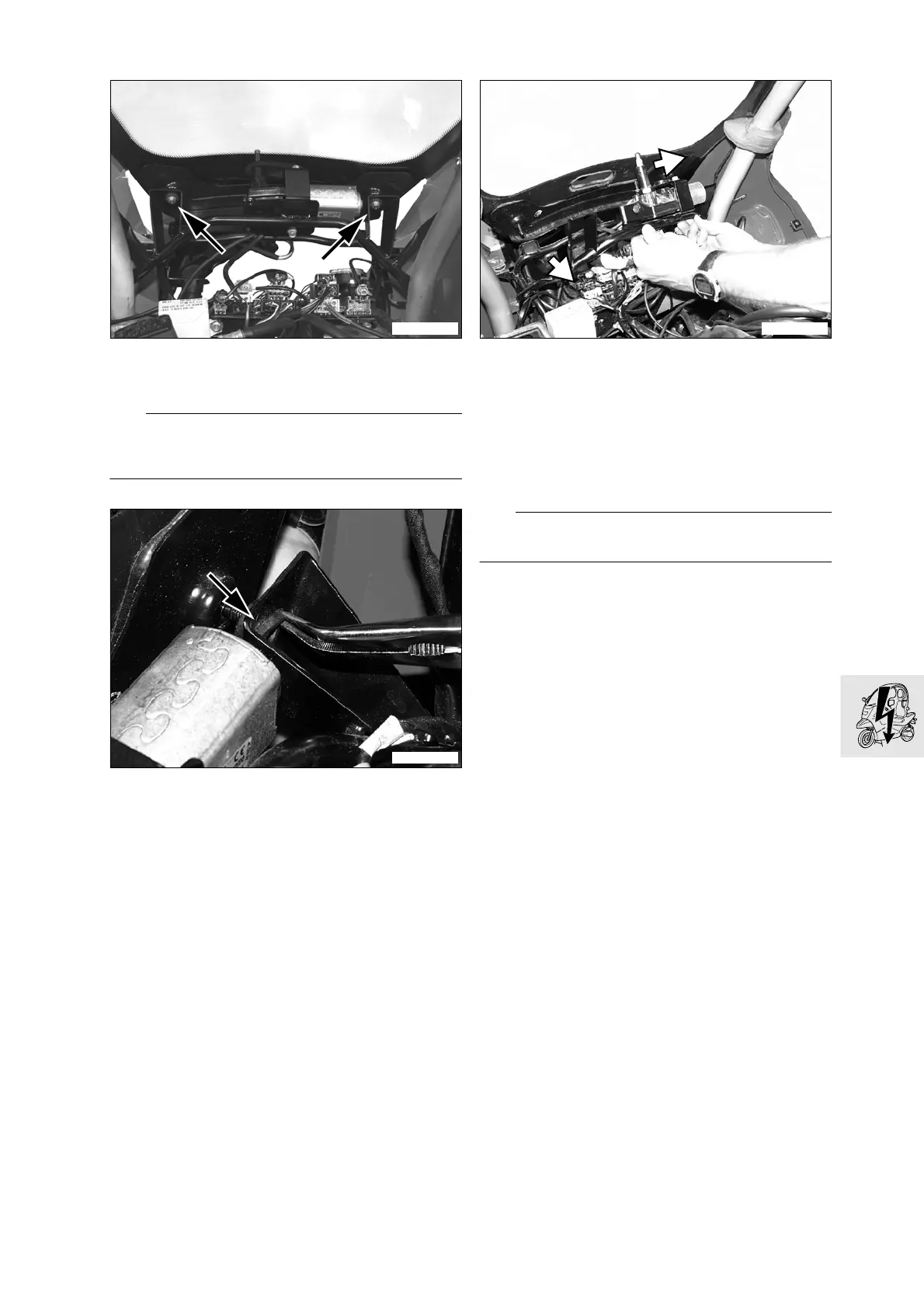

Remove fasteners (arrows) from bottom of wind-
screen
e
Attention:
Avoid placing any stress or tension on the wind-
screen, as it could fracture!
•
Remove sleeves and rubber bushes (arrow) on
left and right sides
•
Carefully lift the windscreen to the front, continu-
ing until the windscreen wiper motor bracket can
be removed out the side
•
Slide the bracket to the right and remove to the
rear
•
Remove windscreen wiper motor
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
L
Note:
Ensure that the water passage is routed correctly!
X
Torque specification:
Bracket to frame ............................................ 5 Nm
Windscreen wiper motor ................................ 5 Nm
Stationary shaft nut ....................................... 9 Nm
C1460340
C1610340
C1610350
