46.41

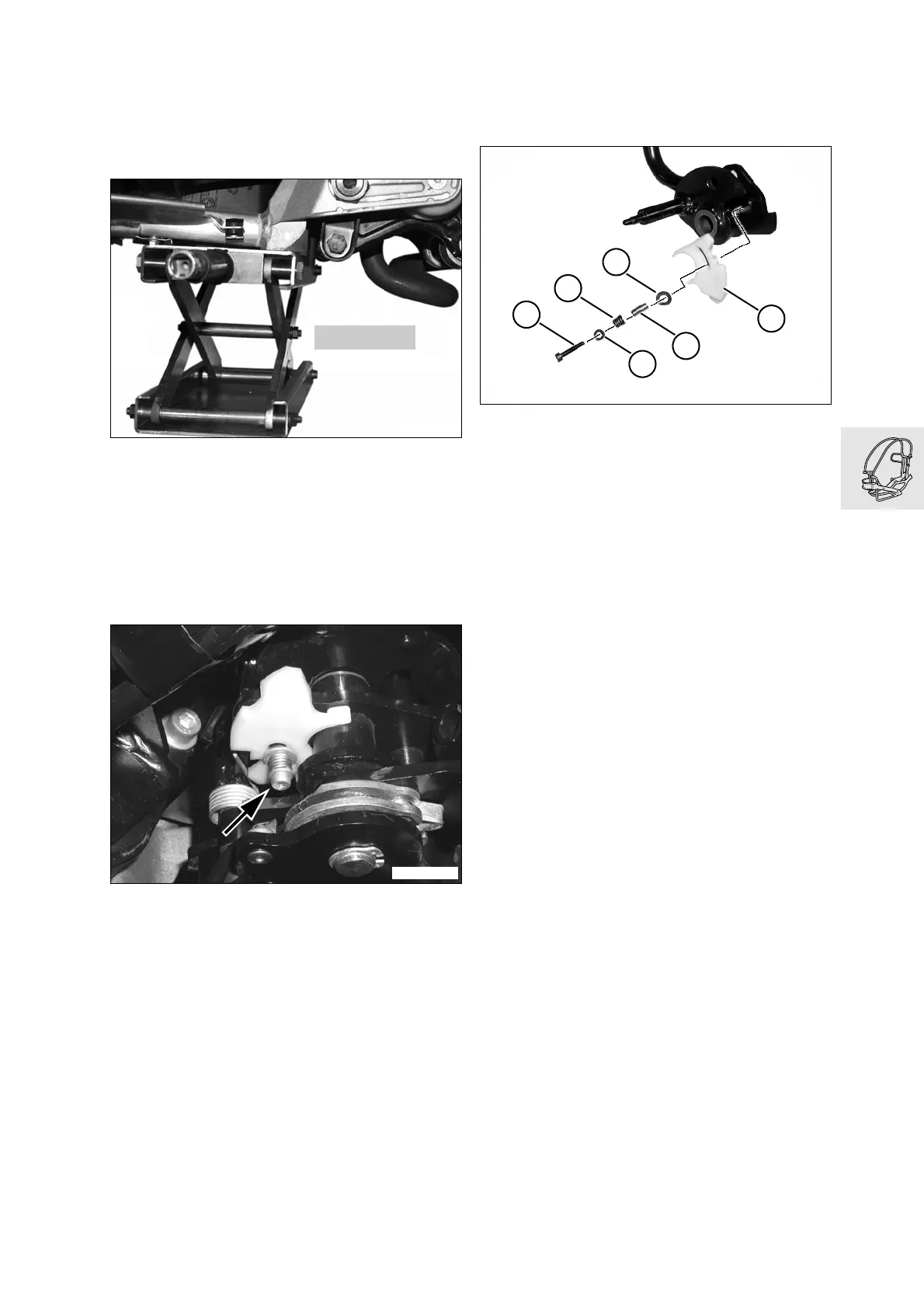

Replacing control disc for large hand lever
For enhanced clarity some of the illustrations show
the components with the hand lever removed
– Remove instrument trim (
a
46.20)
•
Position hoist,
BMW No. 00 1 570,
to allow the
stand to be retracted
•
Use hoist,
BMW No. 00 1 570,
to raise C1 so
that the front wheel clears the ground and C1 is
standing securely
•
Lower front wheel (easy-lift mechanism - move
the large lever up, then down)
•
Fold in the stand (easy-lift mechanism - move
small lever down)
•
Use a short Allen wrench (3 mm/0.118 in) to
undo the bolt (arrow)
•
Remove individual components in attachment
mechanism and control disc
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
1Allen bolt (M4)
2 Spring
3 Large disc
4 Control disc
5 Guide sleeve
6Small disc
•
Ensure that components are installed in correct
positions
X
Torque specification:
Control disc attachment
(+ Loctite 243) ................................................ 2 Nm
C1130050
00 1 570
C1461060
C1461070
1
2
3
4
5
6
