24.18
Variator - reduction gear unit
23 21 200
Replace shaft oil seal for varia-
tor shaft in gearbox cover
(shaft installed)
For the sake of clarity, these illustrations show the
vehicle with the powertrain cradle removed.
– Removing driven variator (
a
24.6)
•

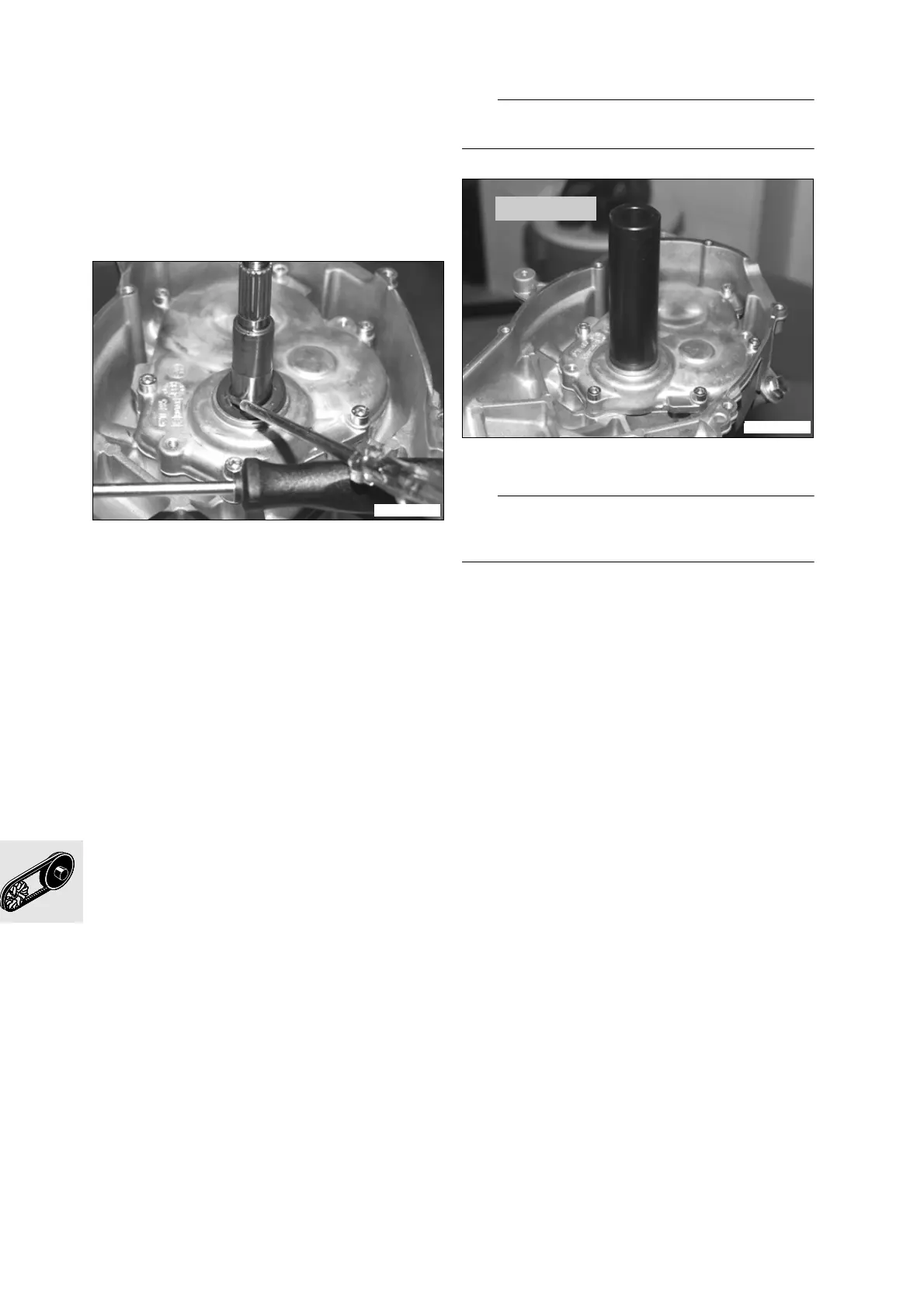

Use screwdriver as a lever to carefully prise out
shaft oil seal
When installing:
e
Attention:
Spray seats of shaft oil seals
•
Uniformly chamfer collar at cover
e
Attention:
Deburr seat for shaft oil seal and remove metal chip-
pings!
•
Install shaft oil seal with tube,
BMW No. 11 7 571
•
Check gearbox oil level and top up as necessary
Fluids and lubricants:
Shaft seats ........................Klüber paste 46 MR 401
Shaft oil seal seats ............Klüber paste 46 MR 401
Gearbox lubricant API GL4........ 95 cm
3
(5.80 cu in)
C1110660
11 7 571
C1110670
