11.19

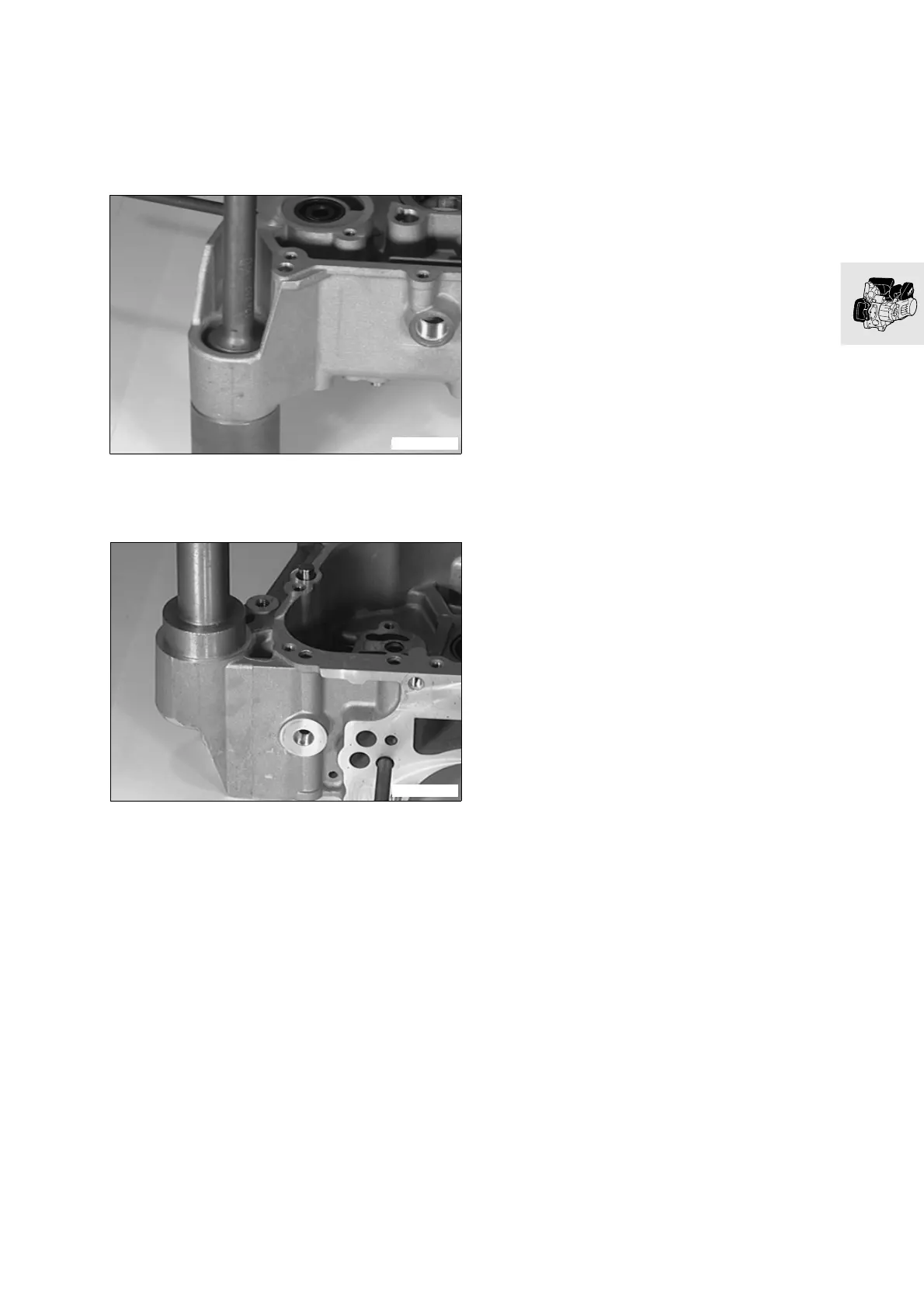

Replacing grooved ball bearing for
engine mount
– Housing halves separated
•
Using a pipe D=24.5 mm (0.9646 in) or a 19 mm
(0.7480 in) socket and working from the inside,
press out the bearing
•
Using a mandrel D=34 mm (1.3386 in) or a
27 mm (1.0630 in) socket and working from the
outside, press in the bearing
11 11 015
# Replacing ignition cover
– Remove the right rear side panel
•
Drain engine oil
•
Remove fastener securing silencer to auxiliary
swing arm
•
Slacken fasteners securing exhaust to cylinder
head
•
Swing silencer to the outside and secure in this
position
•
Disconnect cables under rear side section from
ignition sensor and generator
•
Remove 9 securing screws and lift off cover
•
Remove stator
When installing:
•
Always install a new seal
•
Use 3-Bond 1209 to seal the grommets in cable
passage
Fluids and lubricants:
Rubber grommet ............................... 3-Bond 1209
X
Torque specification:
Cover to housing
to Engine No.: 745 594 (8.8) ........................ 10 Nm
starting with Engine No.: 745 595 (10.9) ...... 12 Nm
C1110160
C1110170
