Checking brake pads and discs for
wear/replacing
(Inspections II and III)
Checking brake pads for wear
d
Warning:
Never allow brake pads to wear below the minimum
specified thickness!
Always replace pads as a complete set!
Front brake pads
•

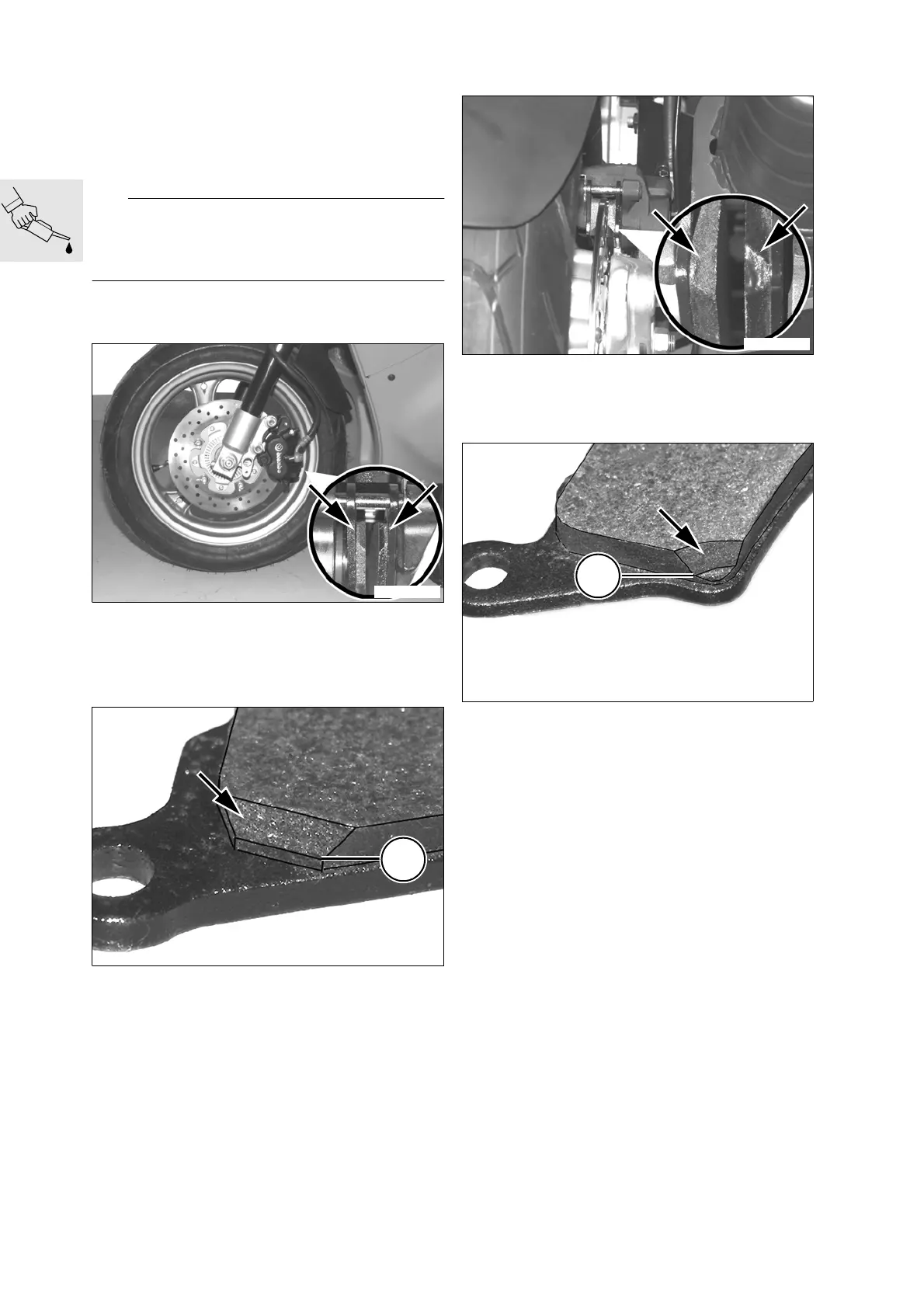

Visually inspect the brake pads from behind and
below
– Replace the brake pads if a wear mark (arrows) is
no longer clearly visible
Minimum pad thickness
The brake pads have a clearly visible chamfer (ar-
row) as a wear indicator
Rear brake pads
•
Visually inspect the brake pads from behind
– Replace the brake pads if a wear mark (arrows) is
no longer clearly visible
Minimum pad thickness
The brake pads have a clearly visible chamfer (ar-
row) as wear indicator
C1340340
C1340350
MIN
C1340360
C1340370
MIN
