46.49
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
When installing lobe/overload guard transfer ele-
ment do not damage switch!
Ensure that Bowden cables on cable pulley - stand
are aligned correctly!
Make sure the hoses are routed well away from any
components that could cause rubbing and abrasion!
– Adjust play of Bowden cables to zero and re-
check the setting
X
Torque specification:
Bowden cable bracket ................................. 21 Nm
Bowden cable locknuts .................................. 8 Nm

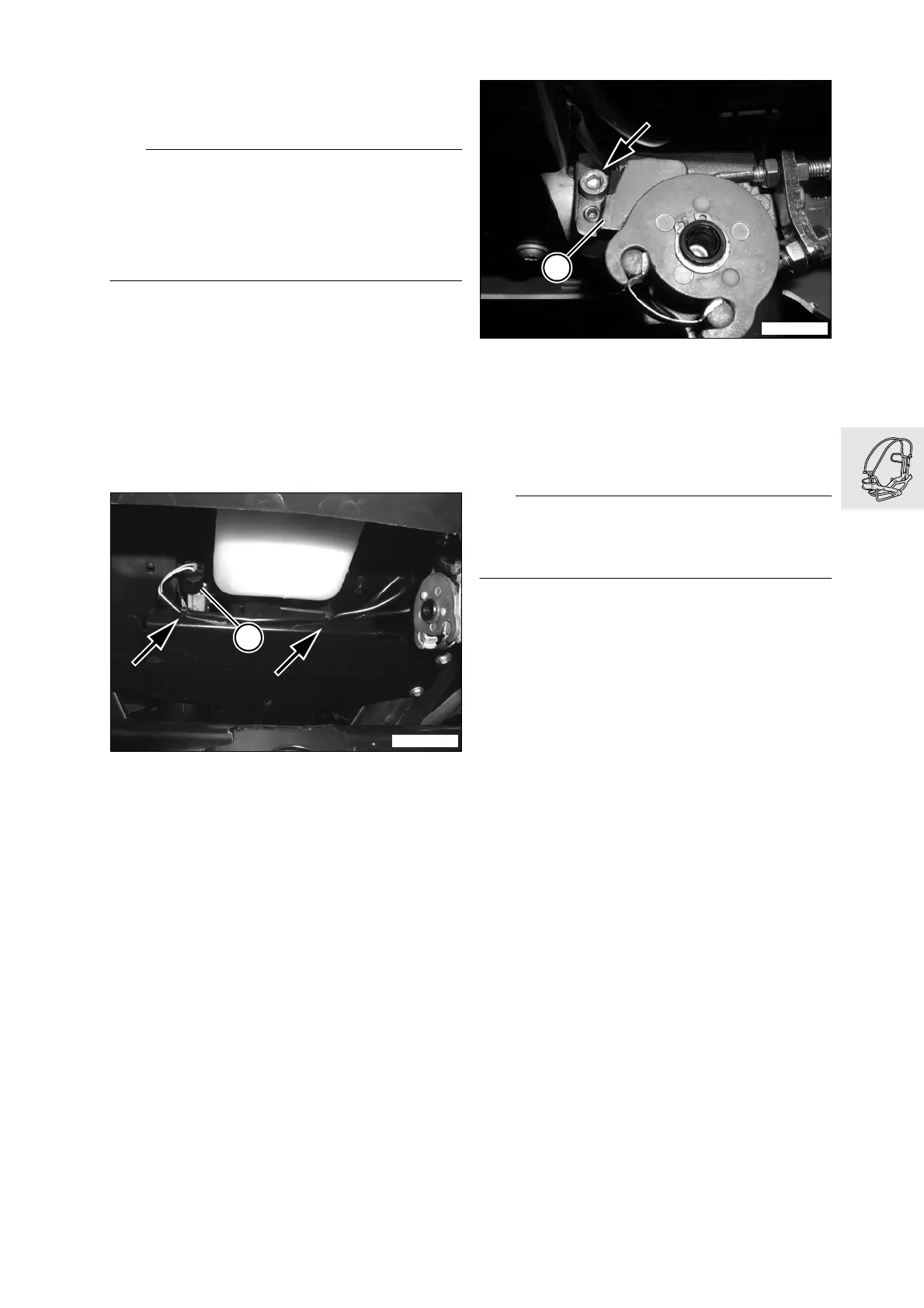

Replacing stand switch
•
Open cable ties (arrows)
•
Disconnect plug (1)
•
Loosen switch cover attachment (8) (arrow)
•
Remove cover (8) and switch
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Make sure the connecting cable is correctly routed!
Make sure the hoses are routed well away from any
components that could cause rubbing and abrasion!
X
Torque specification:
Switch cover .................................................. 8 Nm
1
C1460601
C1460611
8
