24.13
Check guides and spring clips for wear
•
Mount guides and spring clips on transfer ele-
ment
•
Position transfer element on inner plate
•
Press gently in clockwise direction to force
against guide rim
•

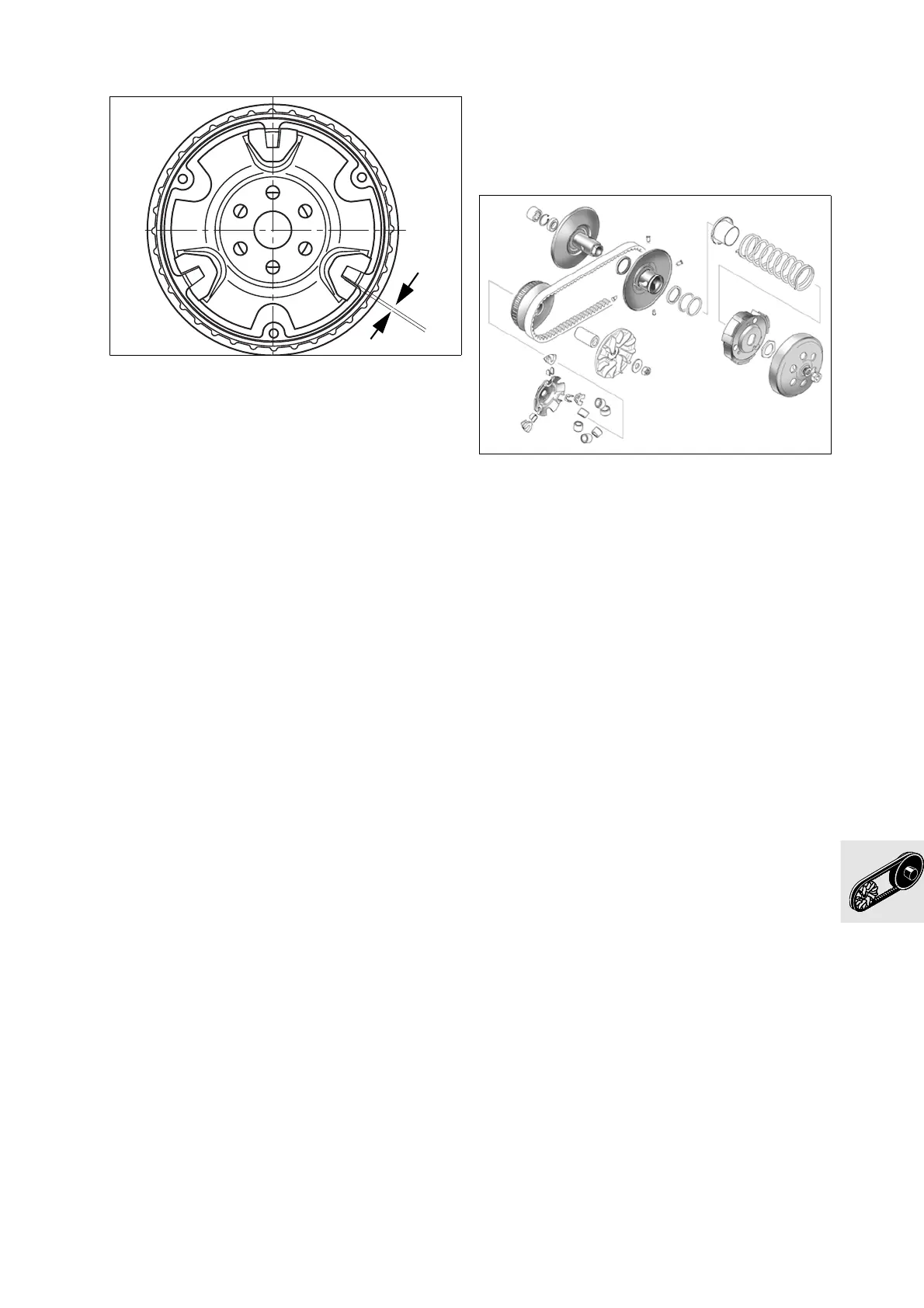

Check clearance "A" between slider and guide-
way on the other sides with 0.5 mm (0.0197 in)
feeler gauge blade
•
Replace each slider at which the feeler gauge fits
•
Recheck clearances. If the 0.5 mm (0.0197) feel-
er gauge blade fits with a new slider, the primary
inside plate should be replaced
•
Check the action of the sliders
Wear data:
Clearance "A" ..................................... max. 0.5 mm
......................................................(max. 0.0197 in)
Assemble drive variator
Assembly notice for unlubricated version:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
•
Assemble drive variator without lubricating -
do
not
grease
•
Insert transfer element
•
Check transfer element to ensure that it slides
without undo resistance or stiction
C1110520
A
C1000490
