72.6
72 11 003
Replacing 3-point seat belt
–Open the seat
– Remove the backrest
– Remove head restraint
– Remove the rear storage compartment
– Remove left service cover
– Remove rear left side panel
– Remove the rear panel
– Remove left C-pillar trim panel
– Remove rear left side panel
– Remove inside trim from left C-pillar
a
....................................................See Group 46
•

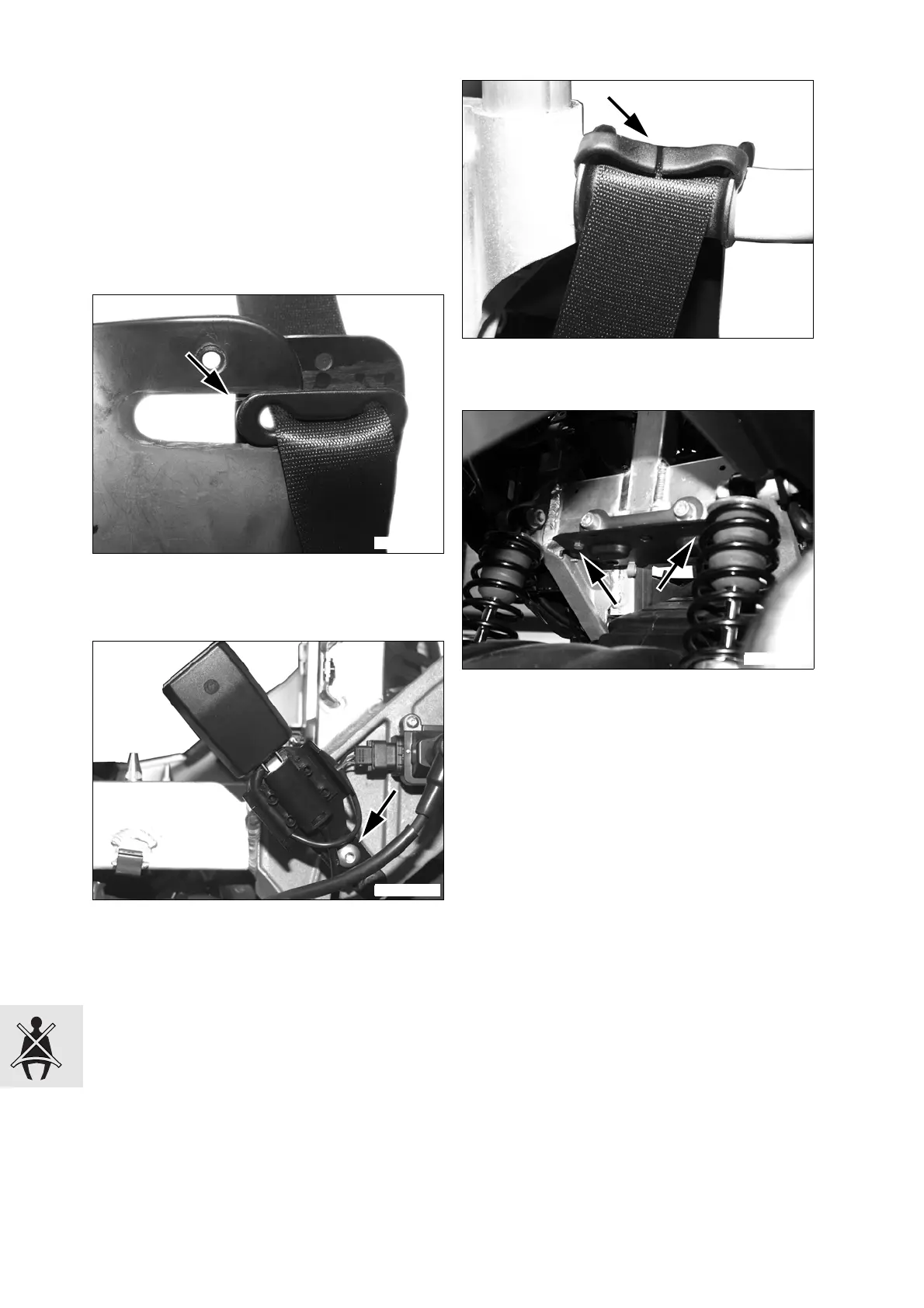

Use a dull tool to pull off the belt passage (arrow)
in inner trim on the C-pillar by removing to the
side
•
Detach belt buckle (arrow)
•
Disengage seat belt from guide (arrow) at shoul-
der bar
•
Detach secondary mudguard (arrows)
•
Remove secondary mudguard
C1720100
C1720020
C1460400
C1720071

BMW C1 200 Specifications

General

Displacement	176 cc
Fuel System	Electronic Fuel Injection
Front Suspension	Telescopic fork
Engine Type	Single-cylinder, 4-stroke
Transmission	CVT
Brakes	Disc
Torque	17 Nm at 6, 500 rpm
Dry Weight	139 kg
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	9.5 liters
